24 | Chapter 2: Connecting the VPN Firewall to the Internet
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
To configure the dual WAN ports for Auto-Rollover:
1. Select Network Configuration > WAN Settings from the menu, and click the WAN Mode

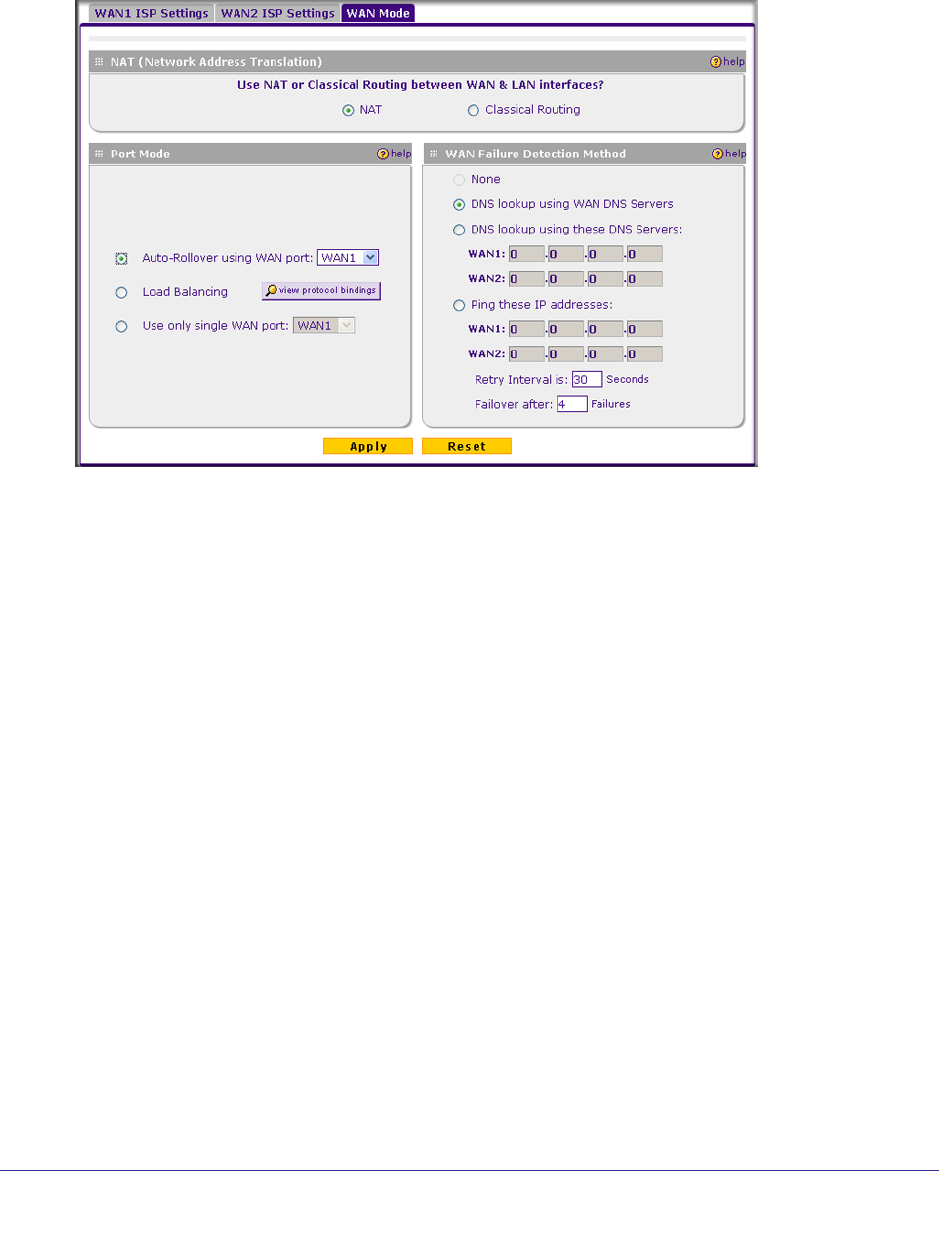

tab. The WAN Mode screen is displayed
2. In the Port Mode section, select Auto-Rollover Using WAN port.
3. From the drop-down list, choose which WAN port will act as the primary link for this
mode.
4. In the WAN Failure Detection Method section, select one of the following detection
failure methods:
• DNS lookup using ISP DNS Servers. DNS queries are sent to the DNS server
configured on the WAN ISP screens (see <pdf>“Configuring the Internet
Connections” on page 2-17).
• DNS lookup using this DNS Server. Enter a public DNS server. DNS queries are
sent to this server through the WAN interface being monitored.
• Ping to this IP addresses. Enter a public IP address that will not reject the Ping
request and will not consider Ping traffic to be abusive. Queries are sent to this server
through the WAN interface being monitored.
5. Enter a Retry Interval in seconds. The DNS query or Ping is sent periodically after
every test period. The default test period is 30 seconds.
6. Enter the Failover after count. The WAN interface is considered down after the
configured number of queries have failed to elicit a reply. The rollover link is brought up
after this. The Failover default is 4 failures.
The default time to roll over after the primary WAN interface fails is 2 minutes (a
30-second minimum test period for a minimum of 4 tests).
7. Click Apply to save your settings.
