28 | Chapter 2: Connecting the VPN Firewall to the Internet
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
3. Click the information or registration link in the upper right corner for registration
information.
4. Access the website of the DDNS service provider and register for an account (for
example, for dyndns.org, go to http://www.dyndns.org).
5. For each WAN port, click the Yes radio button for Change DNS to <your desired DDNS
service> and configure the active fields:
a. Enter the account information for the service you have chosen (for example, user
name, password, key, or domain).
b. If your DDNS provider allows the use of wild cards in resolving your URL, you may
select the Use wildcards checkbox to activate this feature. For example, the
wildcard feature will cause
*.yourhost.dyndns.org to be aliased to the same IP
address as
yourhost.dyndns.org
c. If your WAN IP address does not change often, you may need to force a periodic
update to the DDNS service to prevent your account from expiring. If it appears, you
can select the Update every 30 days checkbox to enable a periodic update.
6. Click Apply to save your configuration.
Configuring the Advanced WAN Options (Optional)
To configure the Advanced WAN options:

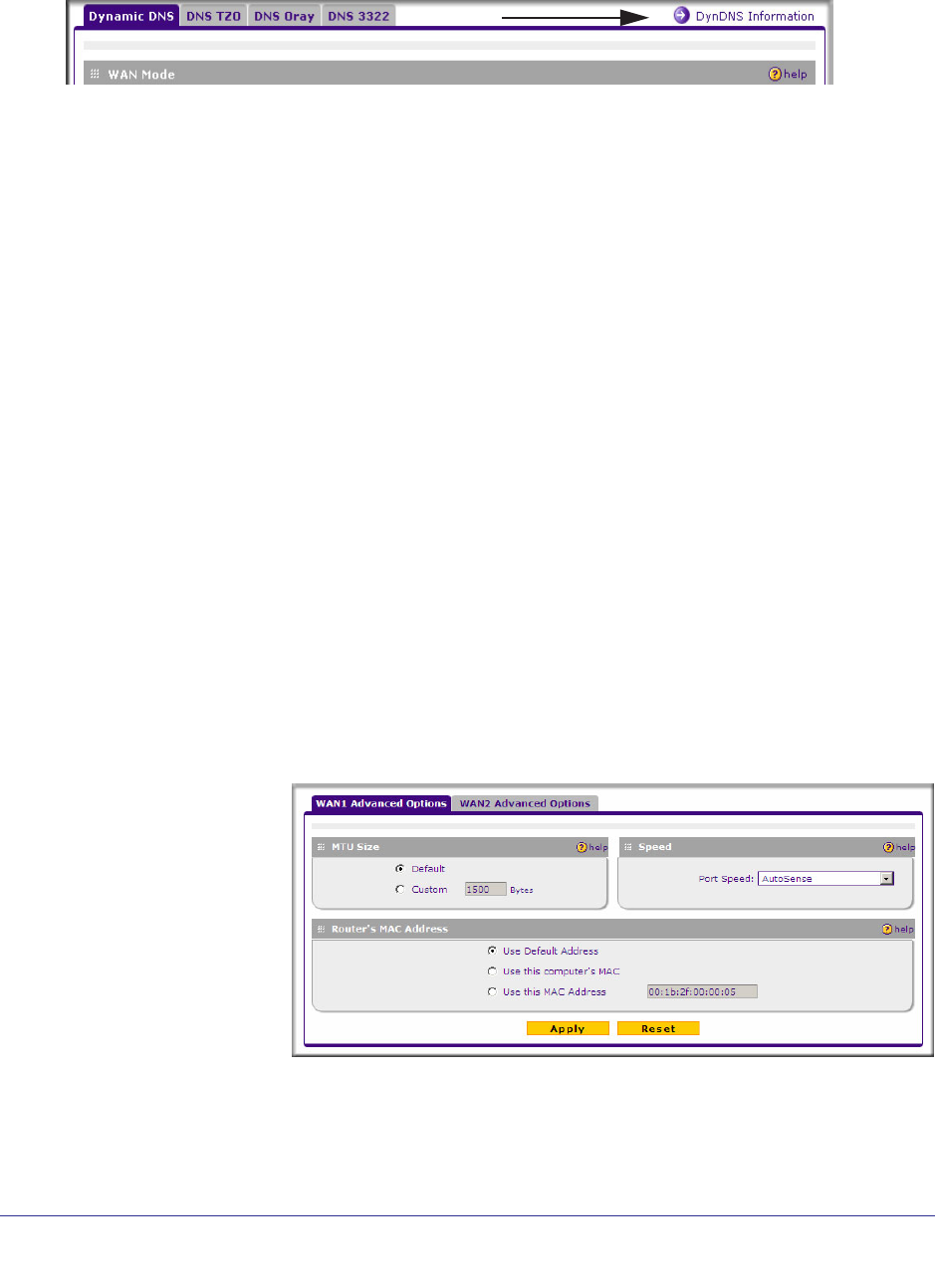

1. Select Network Configuration > WAN Settings from the menu. The WAN1 ISP Settings
screen is displayed.
2. Click the Advanced link to the right of the tabs.
The WAN1
Advanced Options
screen is displayed:
3. Edit the default
information you
want to change.
