32 | Chapter 3: LAN Configuration
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Note: If you enable the DNS Relay feature, you will not use the network
storage as a DHCP server but rather as a DHCP relay agent for a
DHCP server somewhere else on your network.

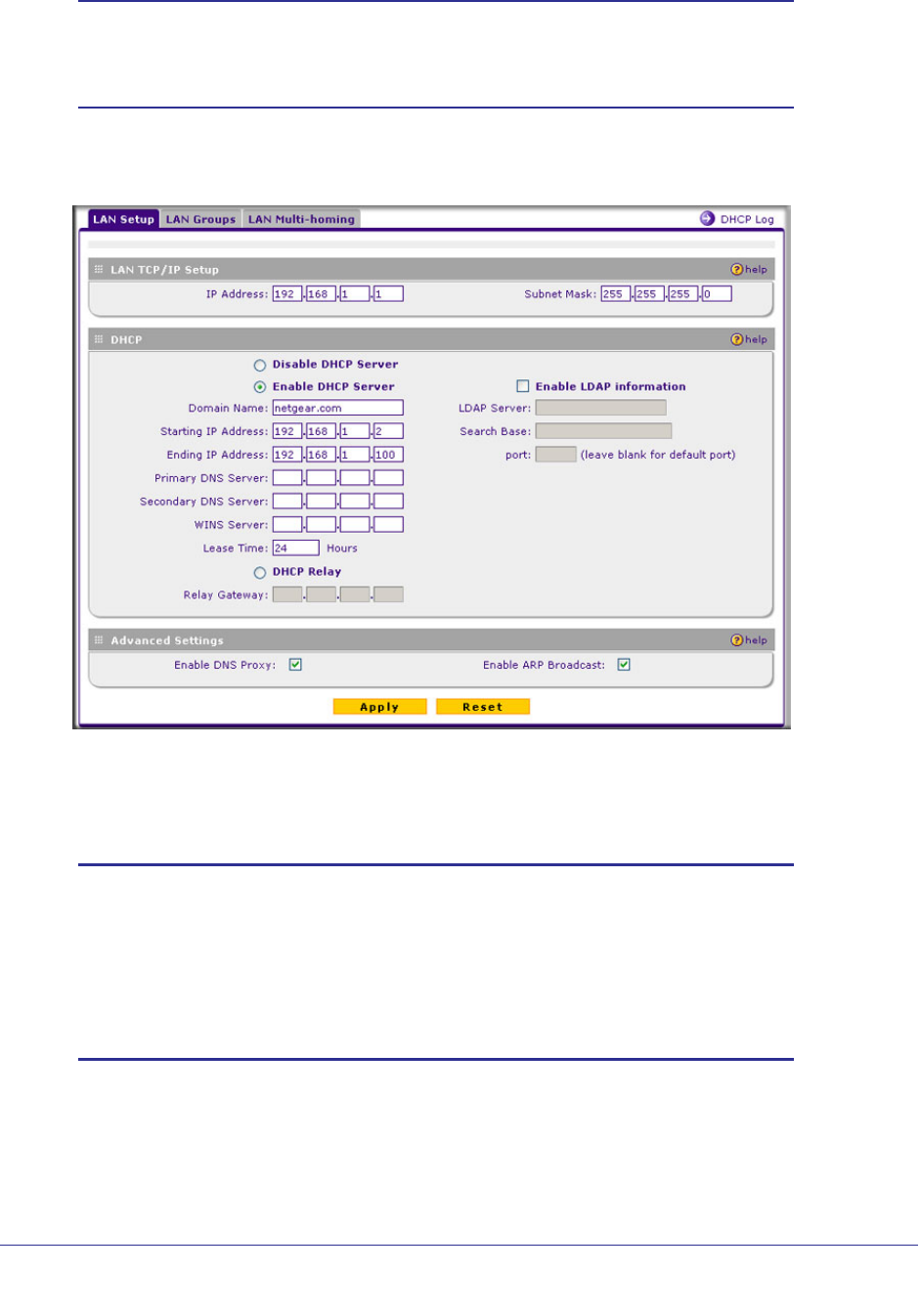

1. Go to Network Configuration > LAN Settings to display the LAN Setup screen.
2. In the LAN TCP/IP Setup section, configure the following settings:
• IP Address. The LAN address of your VPN firewall (factory default: 192.168.1.1).
Note: If you change the LAN IP address of the network storage while
connected through the browser, you will be disconnected. You must
then open a new connection to the new IP address and log in again.
For example, if you change the default IP address 192.168.1.1 to
10.0.0.1, you must now enter https://10.0.0.1 in your browser to
reconnect to the Web Configuration Manager.
• IP Subnet Mask. The subnet mask specifies the network number portion of an IP
address. Your VPN firewall will automatically calculate the subnet mask based on the
IP address that you assign. Unless you are implementing subnetting, use
255.255.255.0 as the subnet mask.
