Chapter 3: LAN Configuration | 37
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
3. (Optional) To enable DHCP Address Reservation after the entry is in the table, select
the checkbox for the new table entry and click Save Binding to bind the IP address to
the MAC address for DHCP assignment.
Changing Group Names in the LAN Groups Database
By default, the LAN Groups are named Group1 through Group8. You can rename these
group names to be more descriptive, such as Engineering or Marketing.
To edit the names of any of the eight available groups:

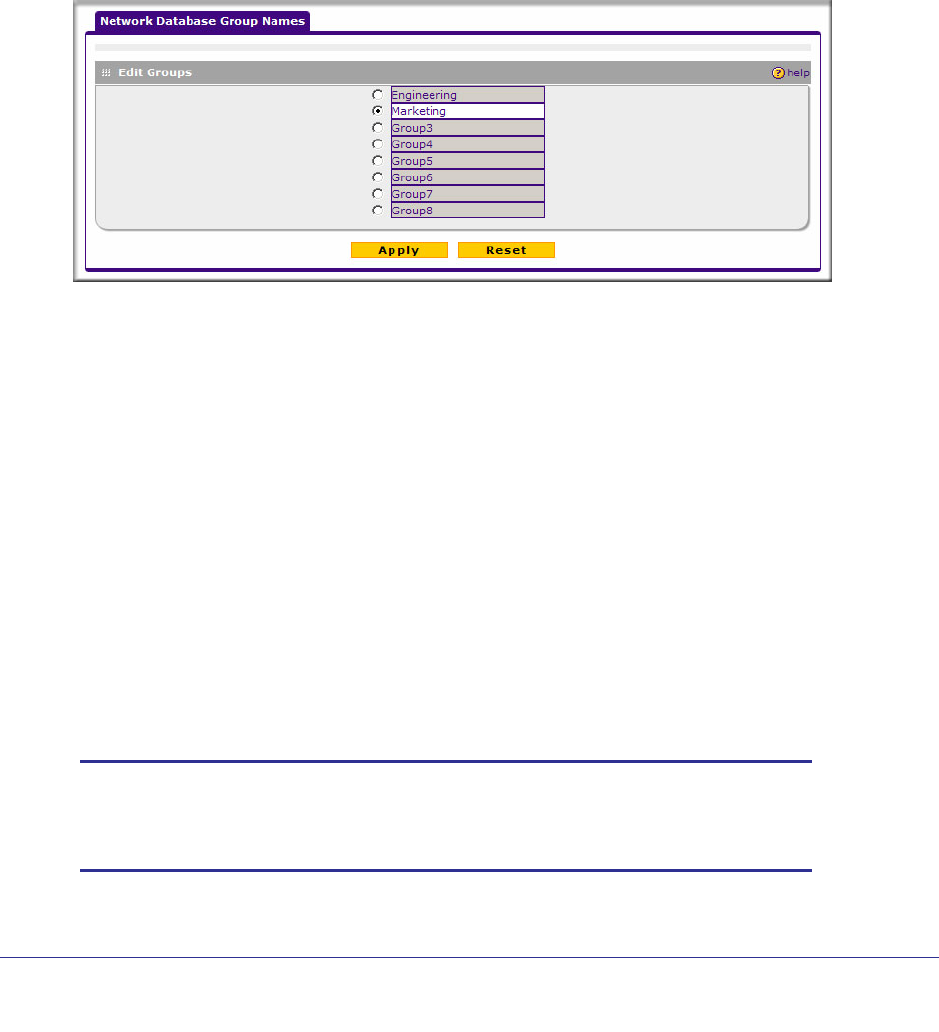

1. From the LAN Groups tab, click the Edit Group Names link to the right of the tabs. The
Network Database Group Names screen appears.
2. Select the radio button next to any group name to make that name active for editing.
3. Type a new name in the field.
4. Select and edit other group names if desired.
5. Click Apply to save your settings.
Configuring DHCP Address Reservation
When you specify a reserved IP address for a device on the LAN (based on the MAC
address of the device), that computer or device will always receive the same IP address each
time it accesses the VPN firewall’s DHCP server. Reserved IP addresses should be assigned
to servers or access points that require permanent IP address settings. The Reserved IP
address that you select must be outside of the DHCP Server pool.
To reserve an IP address, enter the device on the LAN Groups screen, specifying Reserved
(DHCP Client), as described in “Adding Devices to the LAN Groups Database” on page 36.
Note: The reserved address will not be assigned until the next time the PC
contacts the VPN firewall’s DHCP server. Reboot the PC or access
its IP configuration and force a DHCP release and renew.
