Creating a LAN WAN Outbound Services Rule
An outbound rule will block or allow the selected application from an internal IP LAN address
to an external WAN IP address according to the schedule created on the Schedule screen.
You can also tailor these rules to your specific needs (see “Administrator Tips” on page 69).
Note: This feature is for advanced administrators only! Incorrect
configuration will cause serious problems.
To create a new outbound service rule in the LAN WAN Rules screen:

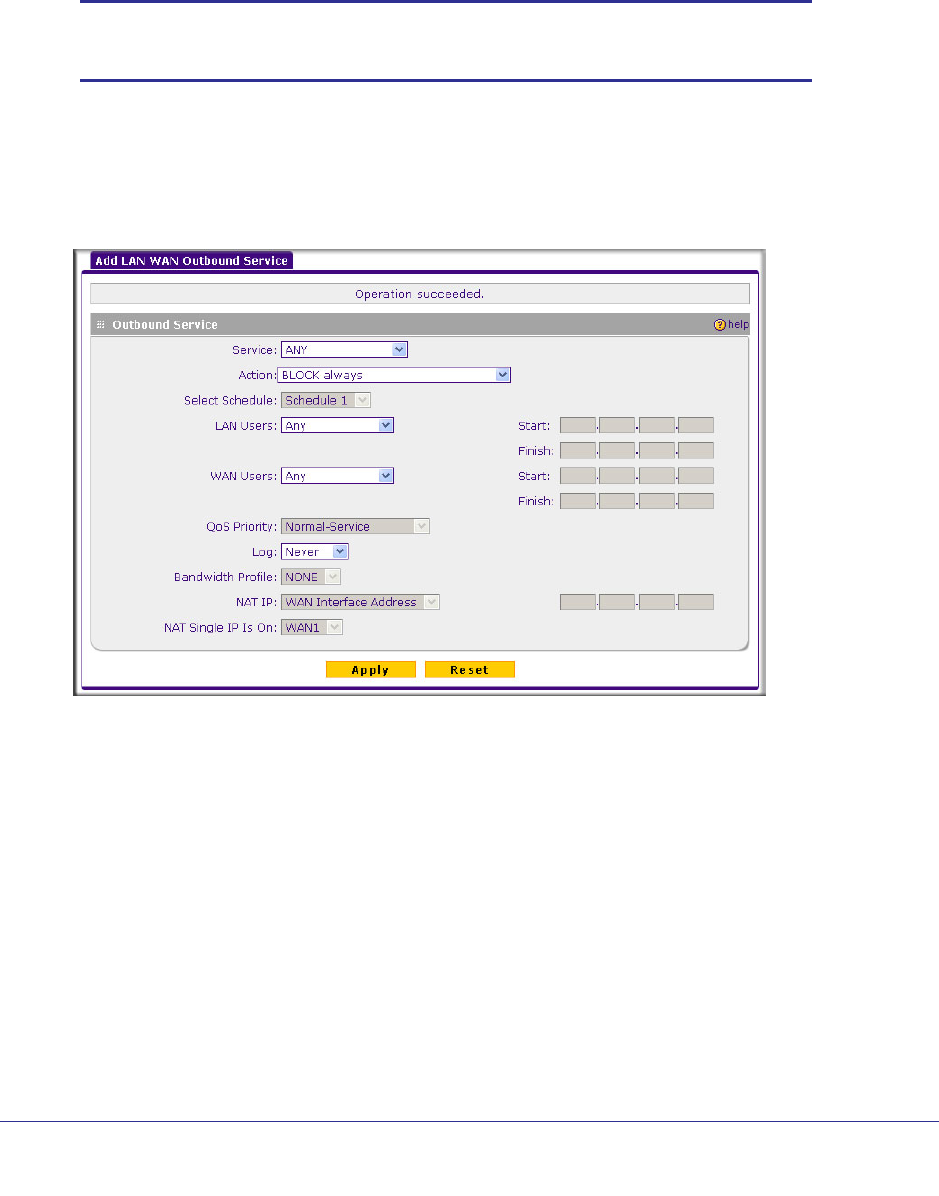

1. Click Add under the Outbound Services table. The Add LAN WAN Outbound Service
screen is displayed.
2. Configure the parameters based on the descriptions in .
3. Click Apply to save your changes and reset the fields on this screen. The new rule will
be listed on the Outbound Services table.
Creating a LAN WAN Inbound Services Rule
This Inbound Services table lists all existing rules for inbound traffic. If you have not defined
any rules, no rules will be listed. By default, all inbound traffic is blocked. Remember that
allowing inbound services opens holes in your VPN firewall. Only enable those ports that are
necessary for your network.
