50 | Chapter 4: Firewall Protection and Content Filtering
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
To create a new inbound service rule in the LAN WAN Rules screen:

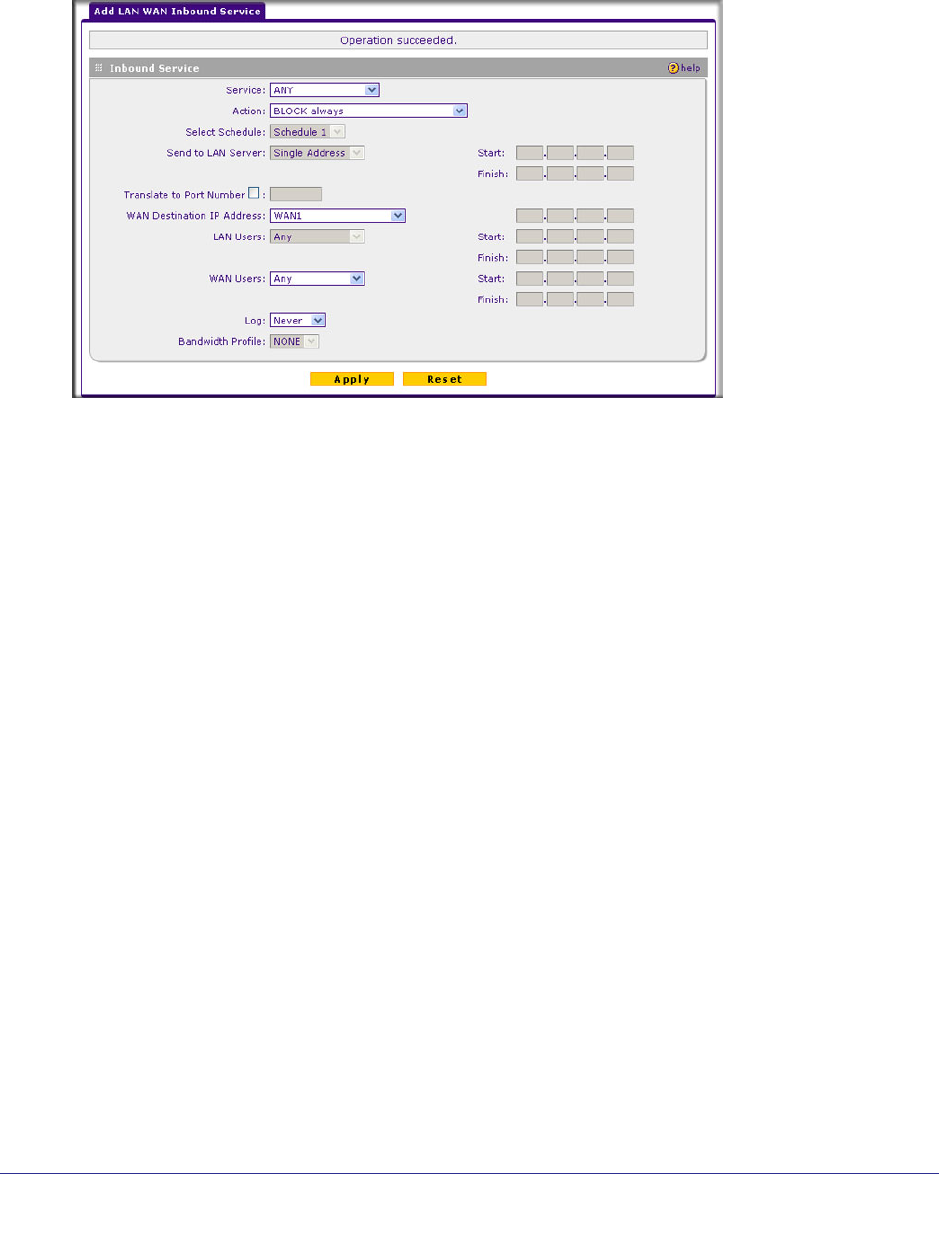

1. Click Add under the Inbound Services table to display the Add LAN WAN Inbound
Service screen.
2. Configure the parameters based on the descriptions in Table 4-4 on page 46.
3. Click Apply to save your changes and reset the fields on this screen. The new rule will
be listed in the Inbound Services table.
Modifying Rules
To make changes to an existing outbound or inbound service rule on the the LAN WAN Rules
screen, in the Action column to the right of to the rule, click on of the following table buttons:
• edit. Allows you to make any changes to the rule definition of an existing rule. Depending
on your selection, either the Edit LAN WAN Outbound Service screen or Edit LAN WAN
Inbound Service screen is displayed, containing the data for the selected rule.
• up. Moves the rule up one position in the table rank.
• down. Moves the rule down one position in the table rank.
To enable, disable, or delete one or more rules:
1. Select the checkbox to the left of the rule that you want to delete or disable or click the
select all table button to select all rules.
2. Click one of the following table buttons:
• enable. Enables the rule or rules. The “!” status icon changes from a grey circle to a
green circle, indicating that the rule is or rules are enabled. (By default, when a rule is
added to the table, it is automatically enabled.)
• disable. Disables the rule or rules. The “!” status icon changes from a green circle to
a grey circle, indicating that the rule is or rules are disabled.
• delete. Deletes the rule or rules.
