ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Inbound Rules Examples
LAN WAN Inbound Rule: Hosting a Local Public Web Server

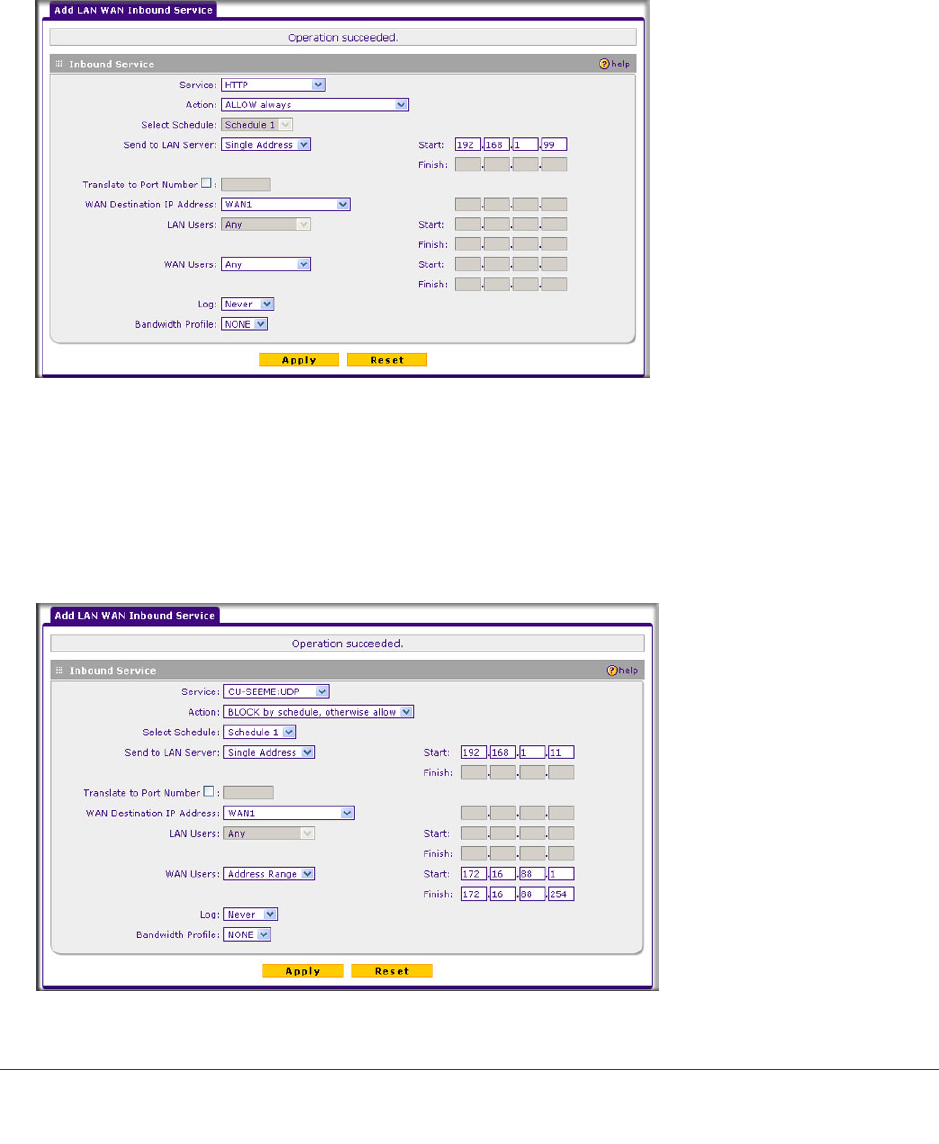

If you host a public Web server on your local network, you can define a rule to allow inbound
Web (HTTP) requests from any outside IP address to the IP address of your Web server at
any time of day. In the example shown in , unrestricted access is provided from the Internet to
the local Web server at LAN IP address 192.168.1.99.
LAN WAN Inbound Rule: Allowing Videoconference from Restricted Addresses
If you want to allow incoming videoconferencing to be initiated from a restricted range of
outside IP addresses, such as from a branch office, you can create an inbound rule. In the
example shown in , CU-SeeMe connections are allowed to a local host only from a specified
range of external IP addresses. Connections are blocked during the period specified by
Schedule 1.
