60 | Chapter 4: Firewall Protection and Content Filtering
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

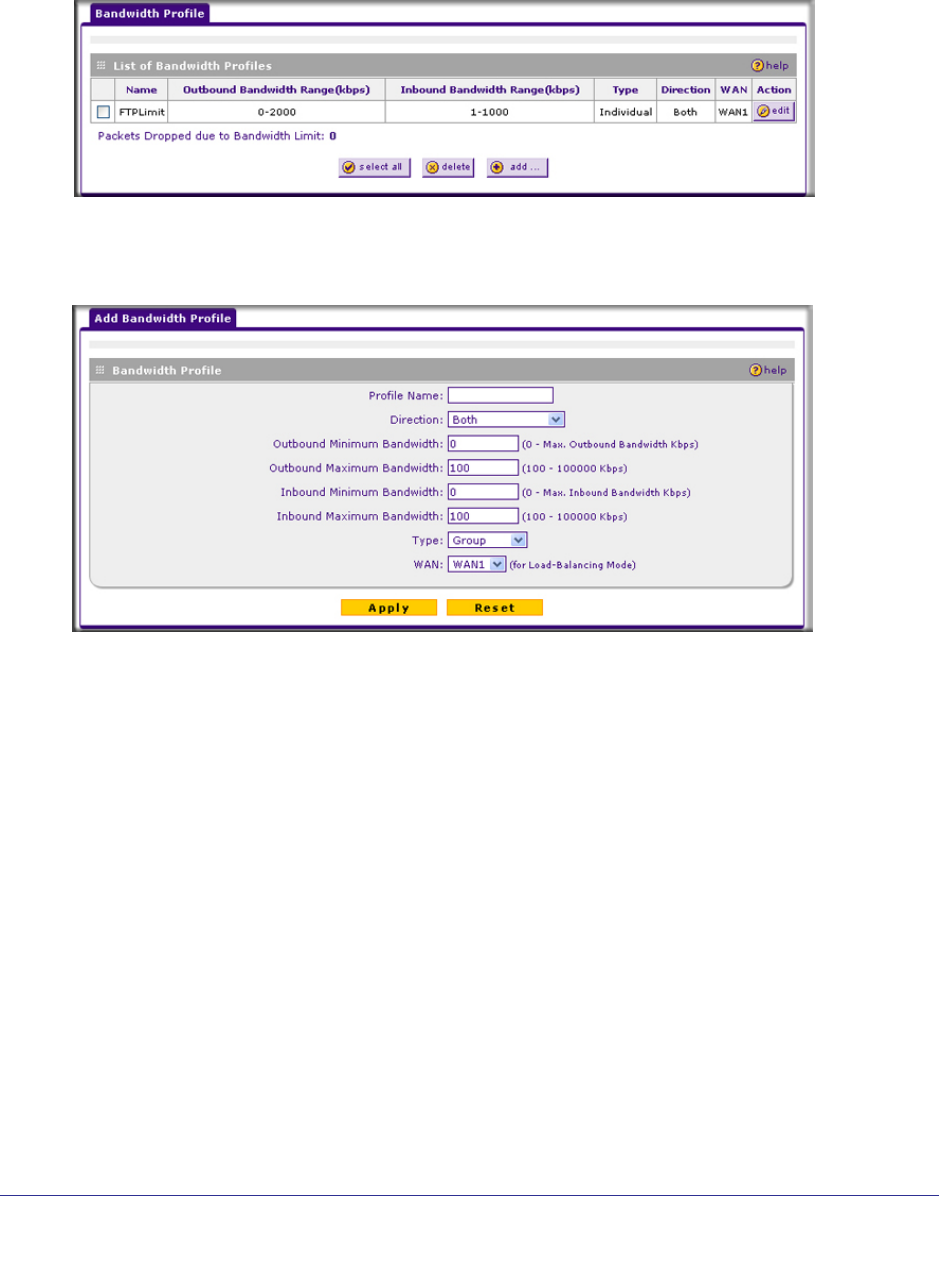

To create a bandwidth profile:
1. Select Security > Bandwidth Profile from the menu.
The List of Bandwidth Profiles table displays existing profiles.
2. To create a new bandwidth profile, click Add to open the Add Bandwidth Profile screen.
3. Enter the following information:
a. Enter a Profile Name. This name will be available in the firewall rules definition
screens.
b. From the Direction drop-down list, select whether the profile will apply to outbound,
inbound, or both outbound and inbound traffic.
c. Depending on the direction that you selected, enter the minimum and maximum
bandwidths to be allowed:
• Enter the Outbound Minimum Bandwidth and Outbound Maximum
Bandwidth in Kbps.
• Enter the Inbound Minimum Bandwidth and Inbound Maximum Bandwidth in
Kbps.
The minimum bandwidth can range from 0 Kbps to the maximum bandwidth that you
specify. The maximum bandwidth can range from 100 Kbps to 100,000 Kbps.
d. In the Type field, select whether the profile will apply to a group or individual.
e. From the WAN drop-down list, specify the WAN interface (if in Load Balancing
Mode) for the profile.
4. Click Apply. The new profile will be added to the List of Bandwidth Profiles table.
