To edit a bandwidth profile:
1. Click the Edit link adjacent to the profile you want to edit. The Edit Bandwidth Profile
screen is displayed. (This screen shows the same fields as the Add New Bandwidth
Profile screen.)
2. Modify the settings that you wish to change.
3. Click Apply. Your modified profile is displayed in the Bandwidth Profile table.
To remove an entry from the table, select the profile and click delete.
To remove all the profiles, click select All and then click delete.
Setting a Schedule to Block or Allow Specific Traffic

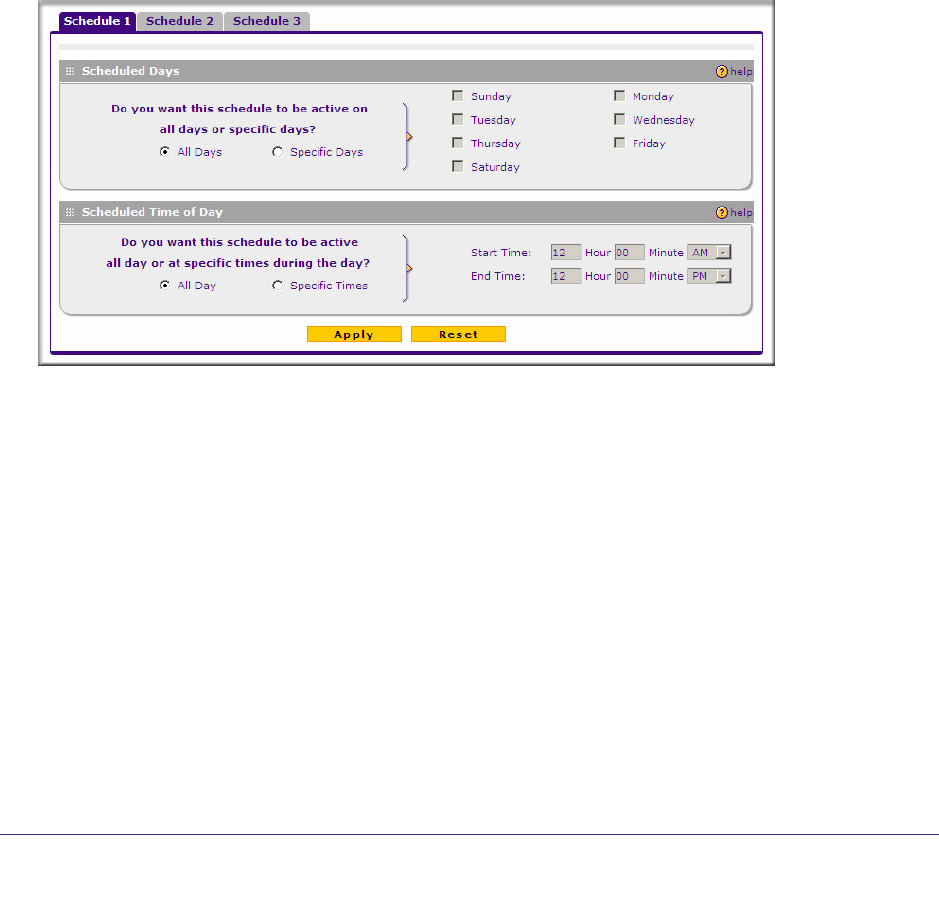

Schedules define the timeframes under which firewall rules may be applied. Select Security >
Schedules to display the following screen:
Three schedules, Schedule 1, Schedule 2 and Schedule3 can be defined, and any one of
these can be selected when defining firewall rules.
To invoke rules based on a schedule, follow these steps:
1. Select Security > Schedule to display the Schedule 1 screen.
2. Check the radio button for All Days or Specific Days. If you chose Specific Days,
check the radio button for each day you want the schedule to be in effect.
3. Check the radio button to schedule the time of day: All Day, or Specific Times. If you
chose Specific Times, enter the Start Time and End Time fields (Hour, Minute,
AM/PM), which will limit access during certain times for the selected days.
4. Click Apply to save your settings to Schedule 1.
5. Repeat these steps to set to a schedule for Schedule 2 and Schedule 3.
