Chapter 4: Firewall Protection and Content Filtering | 63
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
You can bypass Keyword blocking for trusted domains by adding the exact matching
domain to the Trusted Domains table. Access to the domains or keywords in the
Trusted Domains table by PCs, even those in the groups for which keyword blocking
has been enabled, will still be allowed without any blocking.
Keyword application examples:
• If the keyword “XXX” is specified, the URL <http://www.badstuff.com/xxx.html> is
blocked, as is the newsgroup alt.pictures.XXX.
• If the keyword “.com” is specified, only websites with other domain suffixes (such as .edu
or .gov) can be viewed.
• To block all Internet browsing access, enter the keyword “.”.
To enable Content Filtering:

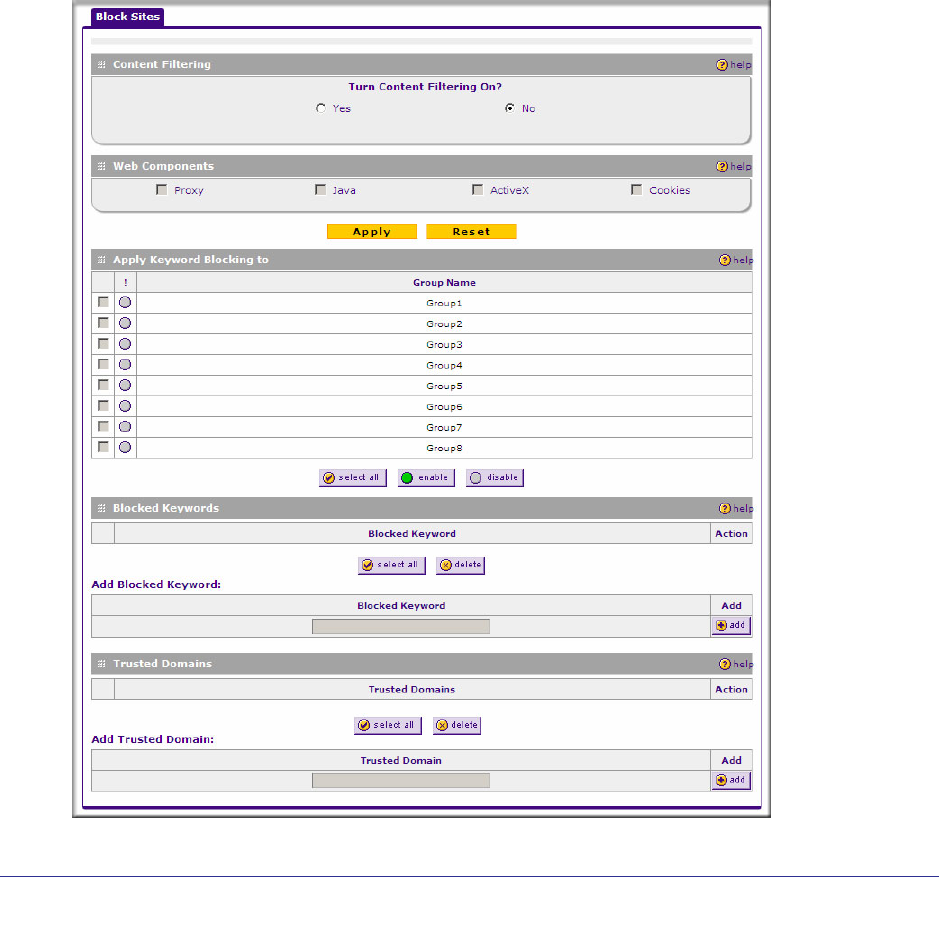

1. Select Security > Block Sites to display the Block Sites screen.
