Chapter 5: Virtual Private Networking Using IPsec | 73
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

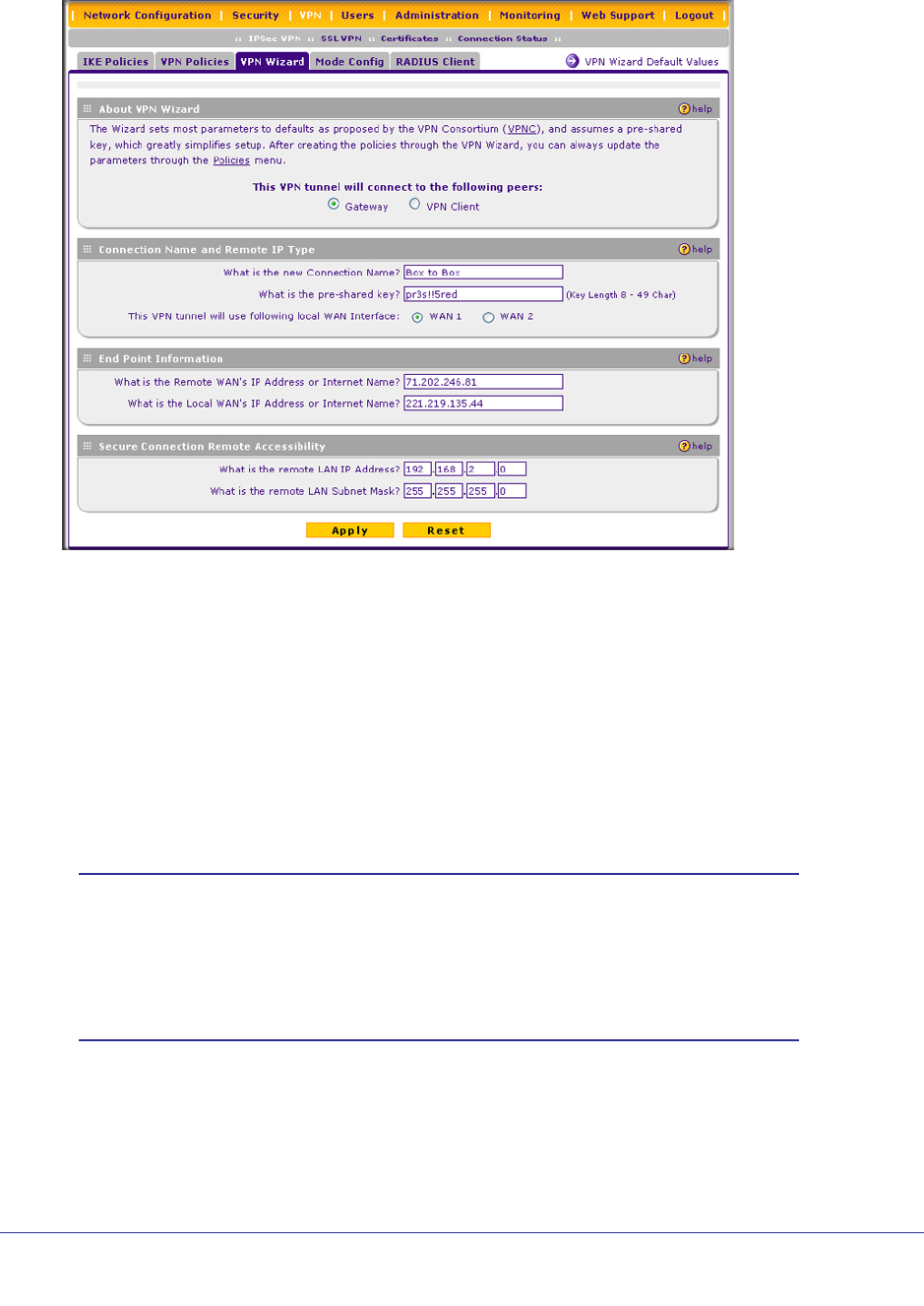

2. Click the VPN Wizard tab.
To view the wizard default settings, click the VPN Wizard Default Values link. You can
modify these settings after completing the wizard.
3. Select Gateway as your connection type.
4. Create a Connection Name. Enter a descriptive name for the connection. This name
used to help you manage the VPN settings; is not supplied to the remote VPN endpoint.
5. Enter a Pre-shared Key. The key must be entered both here and on the remote VPN
gateway, or the remote VPN client. This key must be a minimum of 8 characters and
should not exceed 49 characters.
6. Choose which WAN port to use as the VPN tunnel end point.
Note: If you are using a dual WAN rollover configuration, after completing
the wizard, you must manually update the VPN policy to enable VPN
rollover. This allows the VPN tunnel to roll over when the WAN Mode
is set to Auto Rollover. The wizard will not set up the VPN policy with
rollover enabled.
7. Enter the Remote and Local WAN IP Addresses or Internet Names of the gateways
which will connect.
• Both the remote WAN address and your local WAN address are required.
