Chapter 5: Virtual Private Networking Using IPsec | 75
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

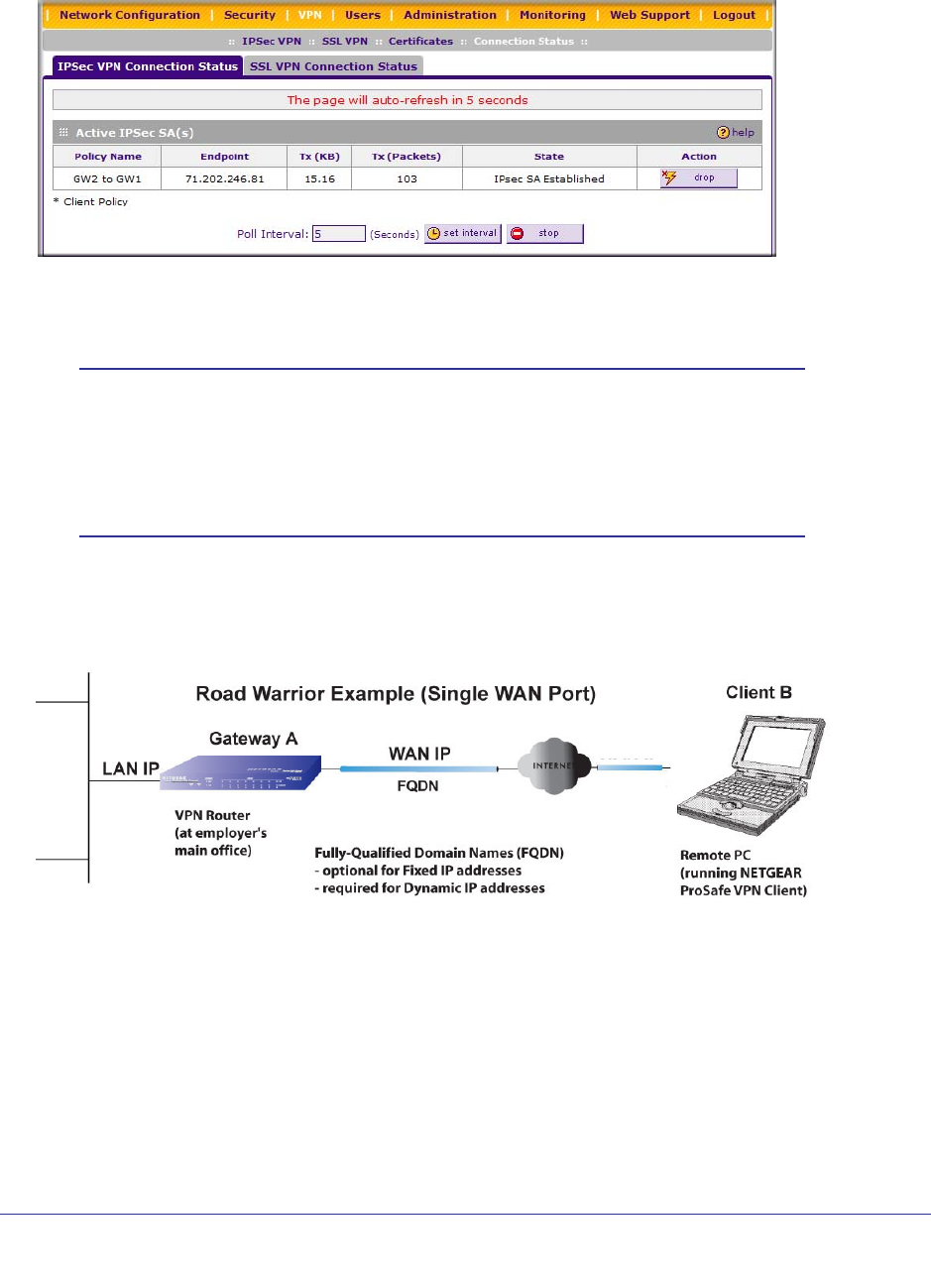

After both firewalls are configured, go to VPN > IPsec VPN > Connection Status to display
the status of your VPN connections.
The tunnel will automatically establish when both the local and target gateway policies are
appropriately configured and enabled,
Note: When using FQDN, if the dynamic DNS service is slow to update
their servers when your DHCP WAN address changes, the VPN
tunnel will fail because the FQDN does not resolve to your new
address. If you have the option to configure the update interval, set it
to an appropriately short time.
Creating a Client to Gateway VPN Tunnel
Figure 5-6 Client to Gateway VPN Tunnel
Follow these steps to configure the a VPN client tunnel:
• Configure the client policies on the gateway.
• Configure the VPN client to connect to the gateway.
