76 | Chapter 5: Virtual Private Networking Using IPsec
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Use the VPN Wizard Configure the Gateway for a Client Tunnel
1. Select VPN > IPsec VPN from the menu.

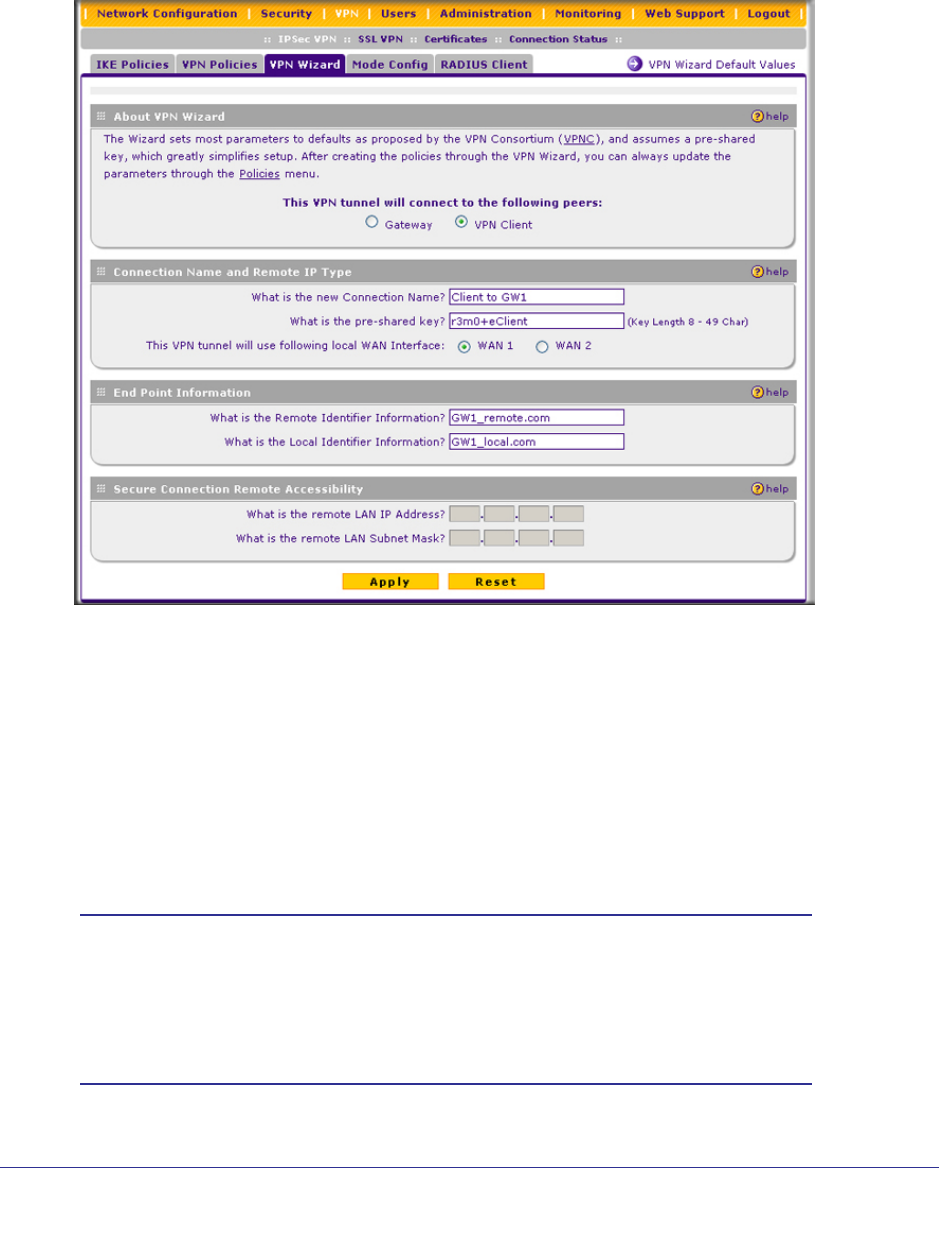

2. Click the VPN Wizard tab to display the VPN Wizard screen.
3. Select VPN Client as your VPN tunnel connection.
4. Create a Connection Name such as “Client to GW1”.
This descriptive name is not supplied to the remote VPN client; it is only for your
reference.
5. Enter a Pre-shared Key; in this example, we are using r3m0+eC1ient, which must also
be entered in the VPN client software. The key length must be 8 characters minimum
and cannot exceed 49 characters.
6. Choose which WAN port to use as the VPN tunnel end point.
Note: If you are using a dual WAN rollover configuration, after completing
the wizard, you must manually update the VPN policy to enable VPN
rollover. This allows the VPN tunnel to roll over when the WAN Mode
is set to Auto Rollover. The wizard will not set up the VPN policy with
rollover enabled.
