78 | Chapter 5: Virtual Private Networking Using IPsec
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

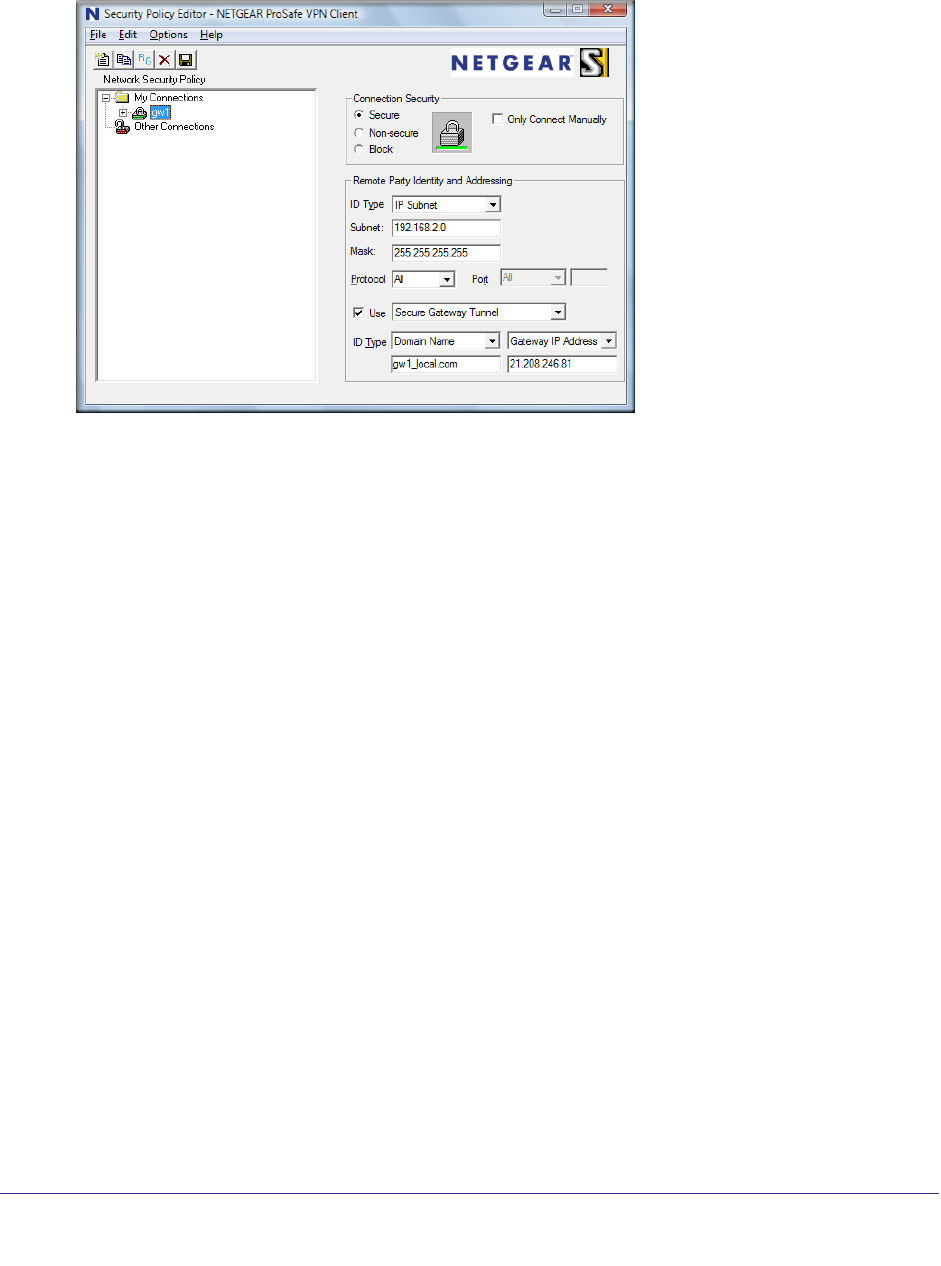

2. In the upper left of the Policy Editor window, click the New Document icon (the first on
the left) to open a New Connection. Give the New Connection a name; in this example,
we are using gw1.
Fill in the other options according to the instructions below.
• Under Connection Security, verify that the Secure radio button is selected.
• In the ID Type field, choose IP Subnet.
• Enter the LAN IP Subnet Address and Subnet Mask of the VPN firewall LAN; in this
example, we are using 192.168.2.0.
• Check the Use checkbox and choose Secure Gateway Tunnel from the drop-down
list.
• In the first ID Type field, choose Domain Name. Enter the FQDN address which the
VPN firewall VPN Wizard provided; in this example, we are using gw1_local.com.
• In the second ID Type field, choose Gateway IP Address and enter the WAN IP
Gateway address of the VPN firewall; in this example, we are using 21.208.216.81.
