Chapter 5: Virtual Private Networking Using IPsec | 79
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

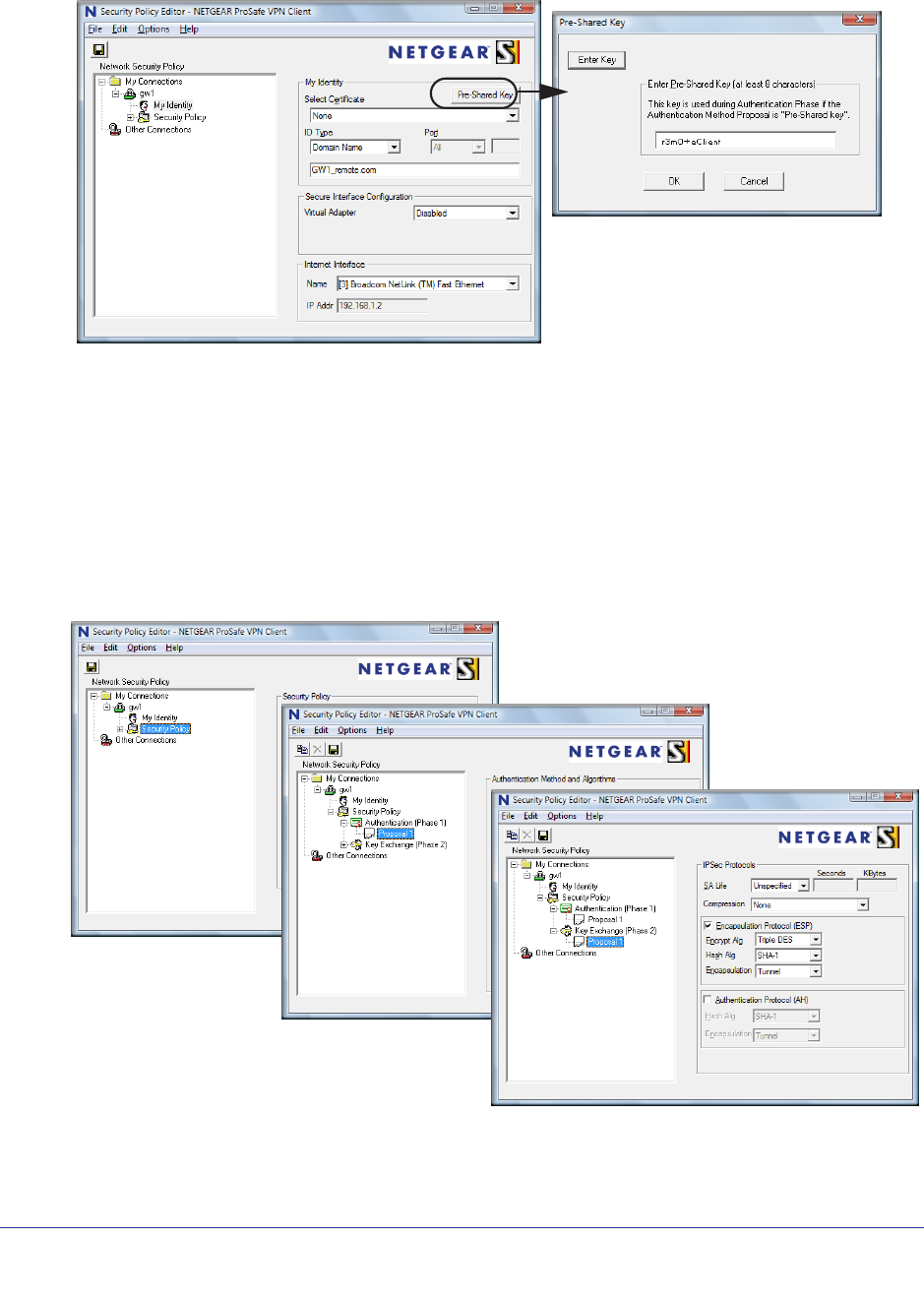

3. In the left frame, click My Identity. Fill in the options according to the instructions below.
• From the Select Certificate drop-down list, choose None.
• Click Pre-Shared Key to enter the key you provided in the VPN Wizard; in this
example, we are using “r3m0+eClient”.
• From the ID Type drop-down list, choose Domain Name.
• Leave Virtual Adapter disabled.
• In Network Adapter select the adapter you will use; the IP address of the selected
adapter is displayed.
4. Verify the Security Policy settings; no changes are needed.
Figure 5-8 Verifing Security Policy settings
• On the left, click Security Policy to view the settings: no changes are needed.
