80 | Chapter 5: Virtual Private Networking Using IPsec
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
• On the left, expand Authentication (Phase 1) and click Proposal 1: no changes are
needed.
• On the left, expand Key Exchange (Phase 2) and click Proposal 1. No changes are
needed.
5. In the upper left of the window, click the disk icon to save the policy.
Testing the Connections and Viewing Status
Information
Both the NETGEAR VPN Client and the VPN firewall provide VPN connection and status
information. This information is useful for verifying the status of a connection and
troubleshooting problems with a connection.
NETGEAR VPN Client Status and Log Information
To test a client connection and view the status and log information, follow these steps.

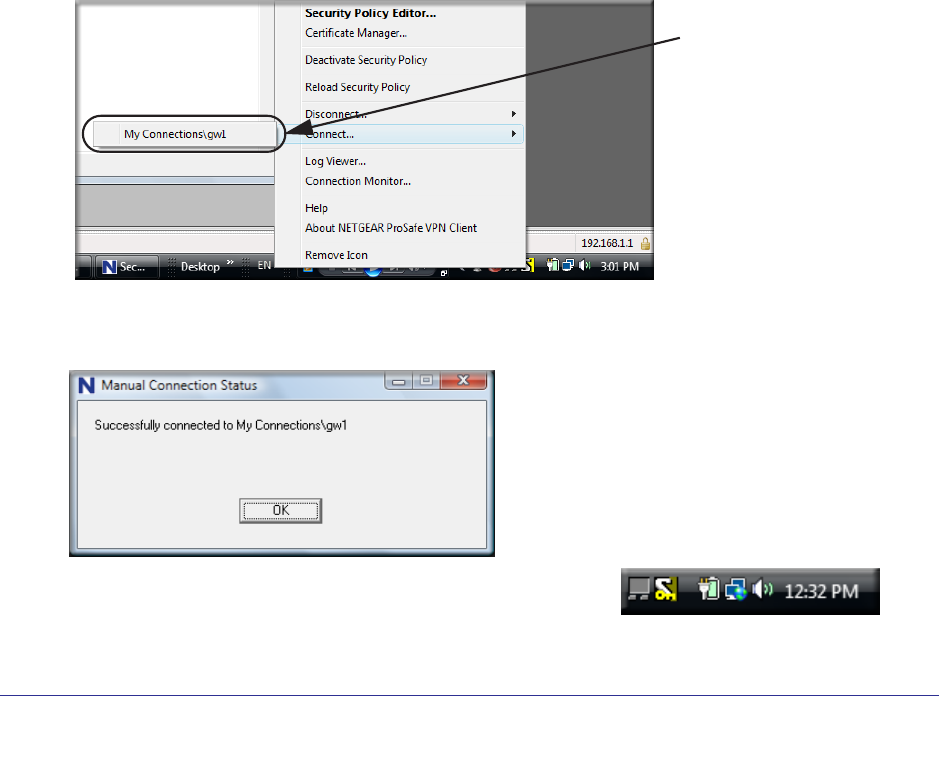

1. To test the client connection, from your PC, right-click on the VPN client icon in your
Windows toolbar and choose Connect..., then My Connections\gw1.
Within 30 seconds you should receive the message “Successfully connected to My
Connections\gw1”.
The VPN client icon in the system tray should state On:
2. To view more detailed additional status and troubleshooting information from the
NETGEAR VPN client, follow these steps.
