Chapter 5: Virtual Private Networking Using IPsec | 87
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual

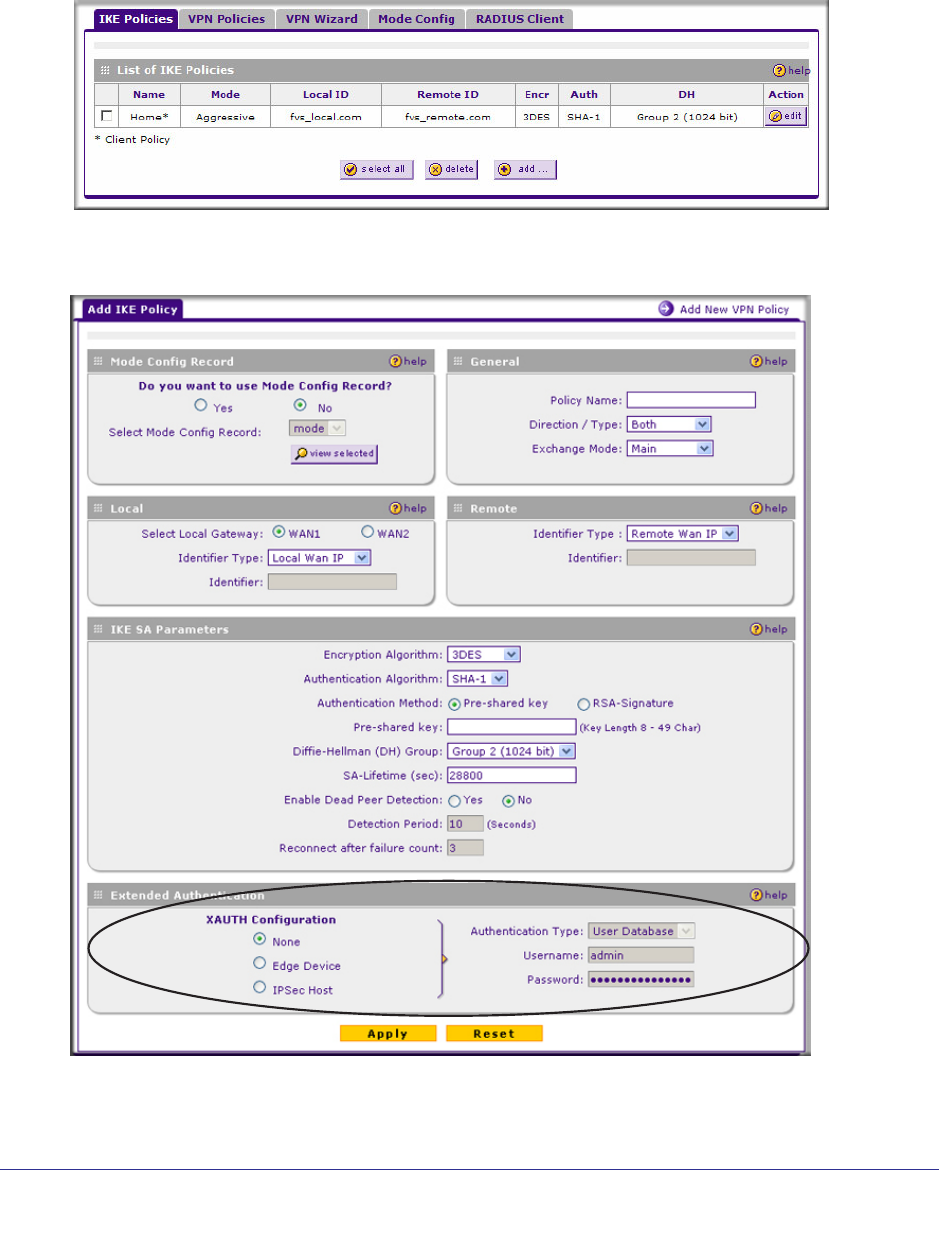

To enable and configure XAUTH:
1. Select VPN > IPsec VPN from the menu.
2. Click the IKE Policies tab. The IKE Policies screen is displayed.
3. You can add XAUTH to an existing IKE Policy by clicking Edit adjacent to the policy to
be modified or you can create a new IKE Policy incorporating XAUTH by clicking Add.
