Chapter 5: Virtual Private Networking Using IPsec | 91
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
Configuring Mode Config Operation on the VPN Firewall
You need to configure two screens to configure Mode Config operation on the VPN firewall:
the Mode Config screen and the IKE Policies screen.
To configure the Mode Config screen:
1. Select VPN > IPsec VPN from the menu.

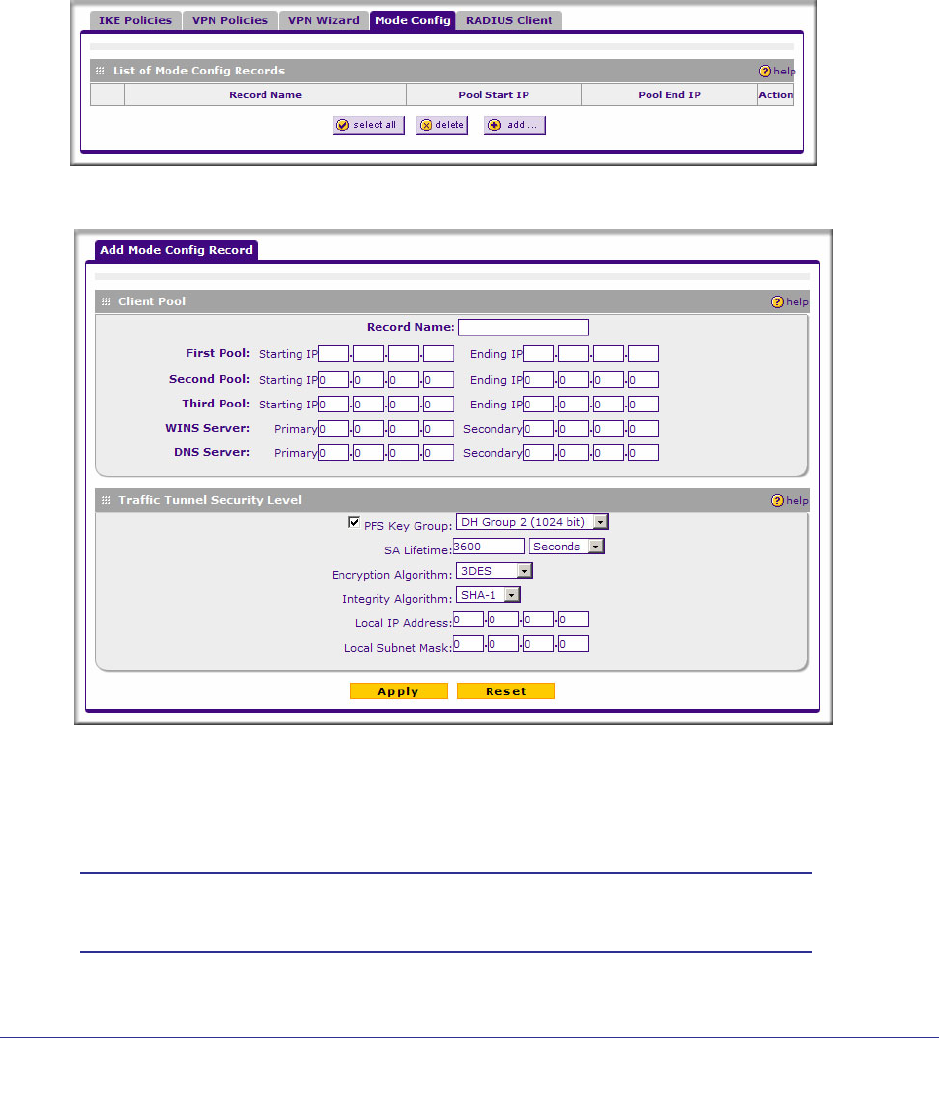

2. Click the Mode Config tab. The Mode Config screen is displayed.
3. Click Add. The Add Mode Config Record screen is displayed.
4. Enter a descriptive Record Name such as “Sales”.
5. Assign at least one range of IP Pool addresses in the First IP Pool field to give to
remote VPN clients.
Note: The IP Pool should not be within your local network IP addresses.
Use a different range of private IP addresses such as 172.20.xx.xx.
