96 | Chapter 5: Virtual Private Networking Using IPsec
ProSafe Dual WAN Gigabit Firewall with SSL & IPsec VPN FVS336Gv2 Reference Manual
2. Click the VPN Policies tab, then click the Edit button next to the desired VPN policy.

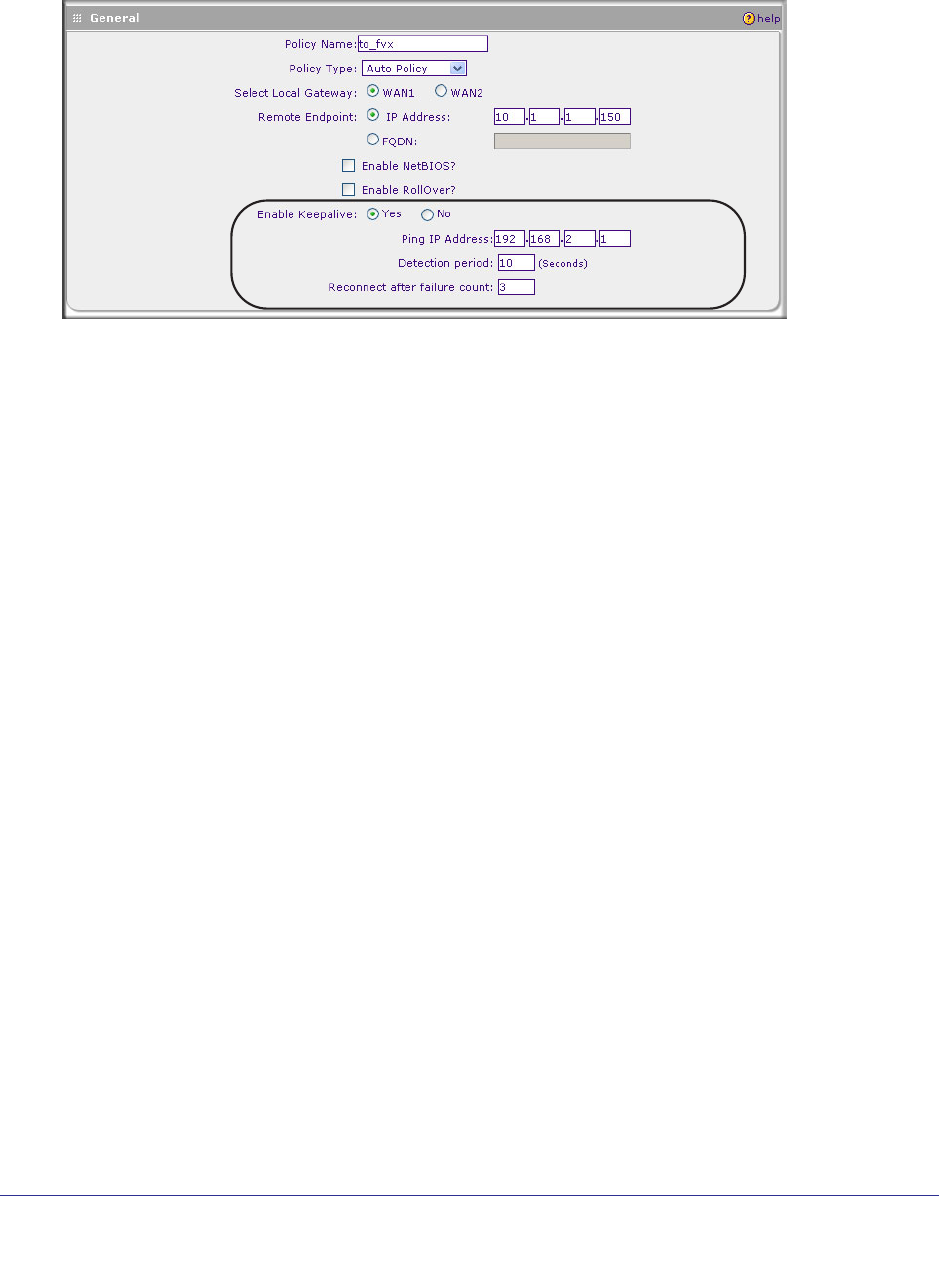

3. In the General section of the Edit VPN Policy screen, locate the keepalive configuration
settings, as shown in .
4. Click the Yes radio button to enable keepalive.
5. In the Ping IP Address boxes, enter an IP address on the remote LAN. This must be
the address of a host that can respond to ICMP ping requests.
6. Enter the Detection Period to set the time between ICMP ping requests. The default is
10 seconds.
7. In Reconnect after failure count, set the number of consecutive missed responses that
will be considered a tunnel connection failure. The default is 3 missed responses. When
the VPN firewall senses a tunnel connection failure, it forces a reestablishment of the
tunnel.
8. Click Apply at the bottom of the screen.
Configuring Dead Peer Detection
The Dead Peer Detection feature maintains the IKE SA by exchanging periodic messages
with the remote VPN peer. To configure Dead Peer Detection on a configured IKE policy,
follow these steps:
1. Select VPN > Policies from the menu.
2. Click the IKE Policies tab, then click the Edit button next to the desired VPN policy.
