WFS709TP ProSafe Smart Wireless Switch Software Administration Manual

Configuring WLANS 5-17

v1.0, June 2007

The radio configuration in the Advanced WLAN pages also allow you to configure IntelliFi RF

Management (IRM) parameters, which are described in “IntelliFi RF Management” on page 5-19

and voice parameters, which are described in Chapter 14, “Configuring WFS709TP for Voice”.

Example Configuration

The following example includes:

• An 802.11 a/b/g SSID called Corpnet with dynamic WEP.

• An 802.11 b/g SSID called Voice with static WEP.

• The AP in location 4.2.6 is set to have a guest SSID in addition to the other two SSIDs. The

guest SSID is open.

To configure this system:

1. Configure the 802.11 a/b/g SSID Corpnet in the global location 0.0.0 with dynamic WEP

(Figure 5-6).

2. Configure the 802.11 b/g Voice SSID in the global location 0.0.0 with static WEP (Figure 5-7).

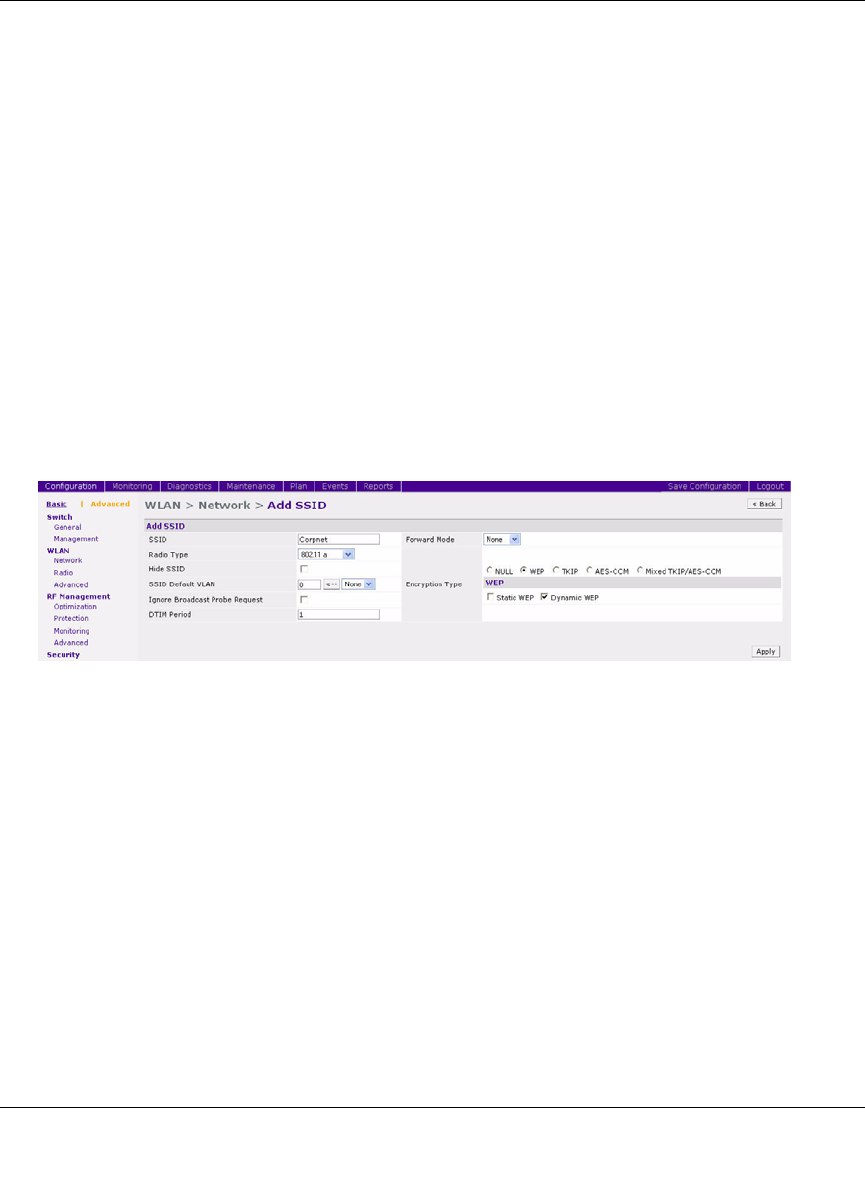

Figure 5-6
