WFS709TP ProSafe Smart Wireless Switch Software Administration Manual
RF Plan 4-17
v1.0, June 2007
AP Planning Page
The AP Planning page (Figure 4-15) uses the information entered in the modeling pages to locate
access points in the buildings you described.
Initialize
Initialize the optimizing algorithm by clicking the Initialize button. This makes an initial
placement of the APs and prepares RF Plan for the task of determining the optimum location for
each AP. As soon as you click Initialize, you will see the AP symbols appear on the floor plan.
Colored circles around the AP symbols (shown in Figure 4-16) indicate the approximate coverage
of the individual AP, and the color of the circle represents the channel on which the AP is
operating. The circles appear after you select an approximate coverage value on one of the Floors
pages. You can also click an AP icon and drag it to manually reposition it.

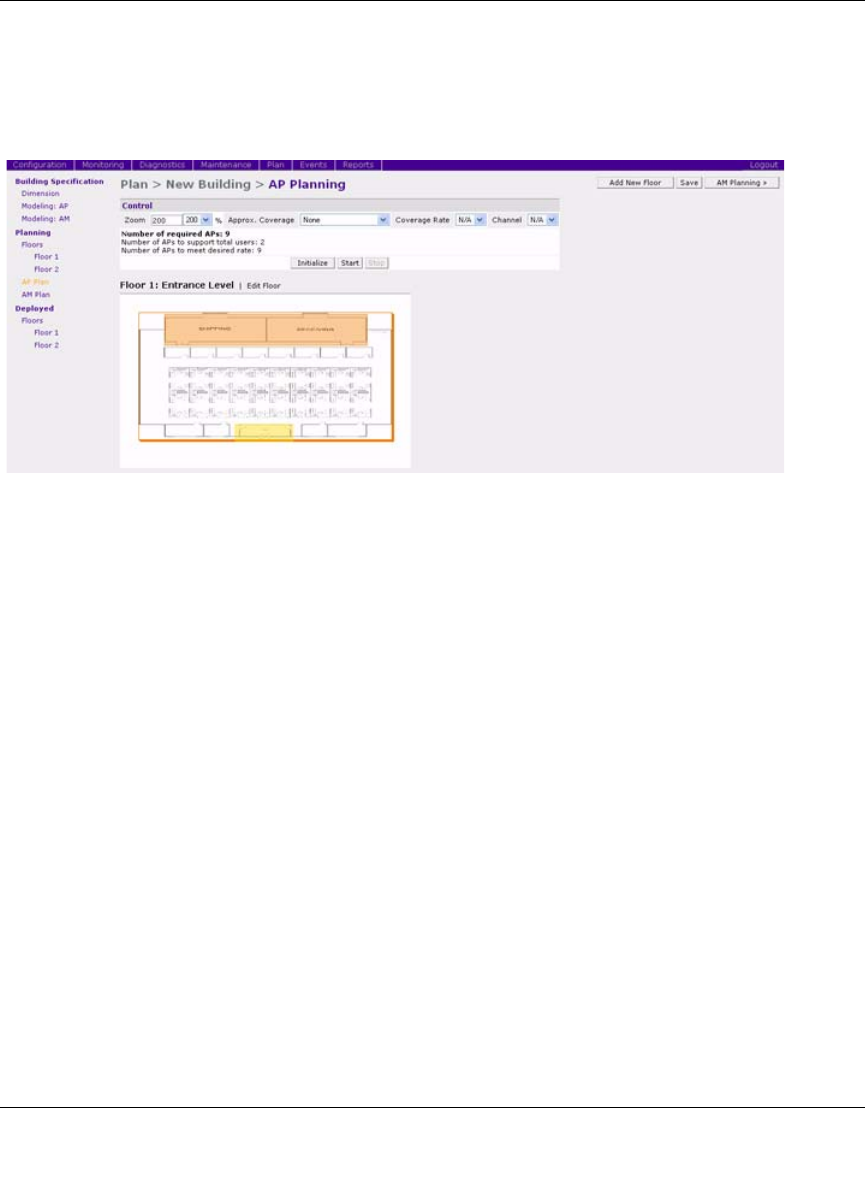

Figure 4-15
