8. Click Save.
Create a Don’t Deploy Area
To create a Don’t Deploy area:
1. Click the New link in the Areas section under Floor 1 to open the Area Editor.
2. Type Lobby in the Name text box in the Area Editor.
3. Select Don’t Deploy from the Type pull-down menu box.
4. Click Apply.
An yellow box appears near the center of the floor plan.
The information you typed in the editor appears in the box. You see the name and type of area,
as well as the coordinates of the lower left corner and upper right corner of the box.
5. Using your mouse, click and drag the box over the Lobby area on the floor plan.

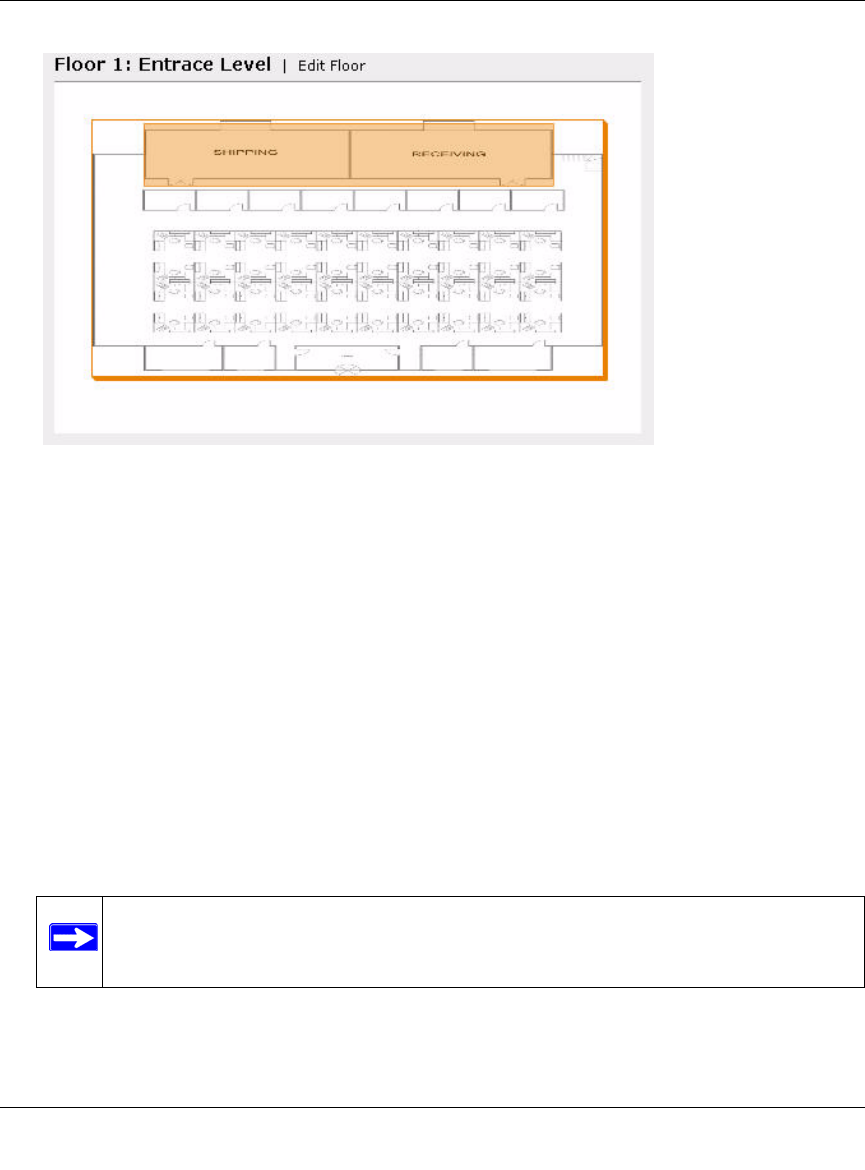

Figure 4-27
Note: The x = 0 and y = 0 coordinates correspond to the lower left corner of the
layout space.
