WFS709TP ProSafe Smart Wireless Switch Software Administration Manual

10-4 Adding Local WFS709TPs

v1.0, June 2007

3. Apply the configuration on the master.

Rebooting APs

The configuration changes take effect only after rebooting the affected APs; this allows them to

reassociate with the local WFS709TP. In the example shown in Figure 10-3, AP 1.1.20 will be

rebooted. After rebooting, these APs appear to the new local WFS709TP as local APs

(Figure 10-4).

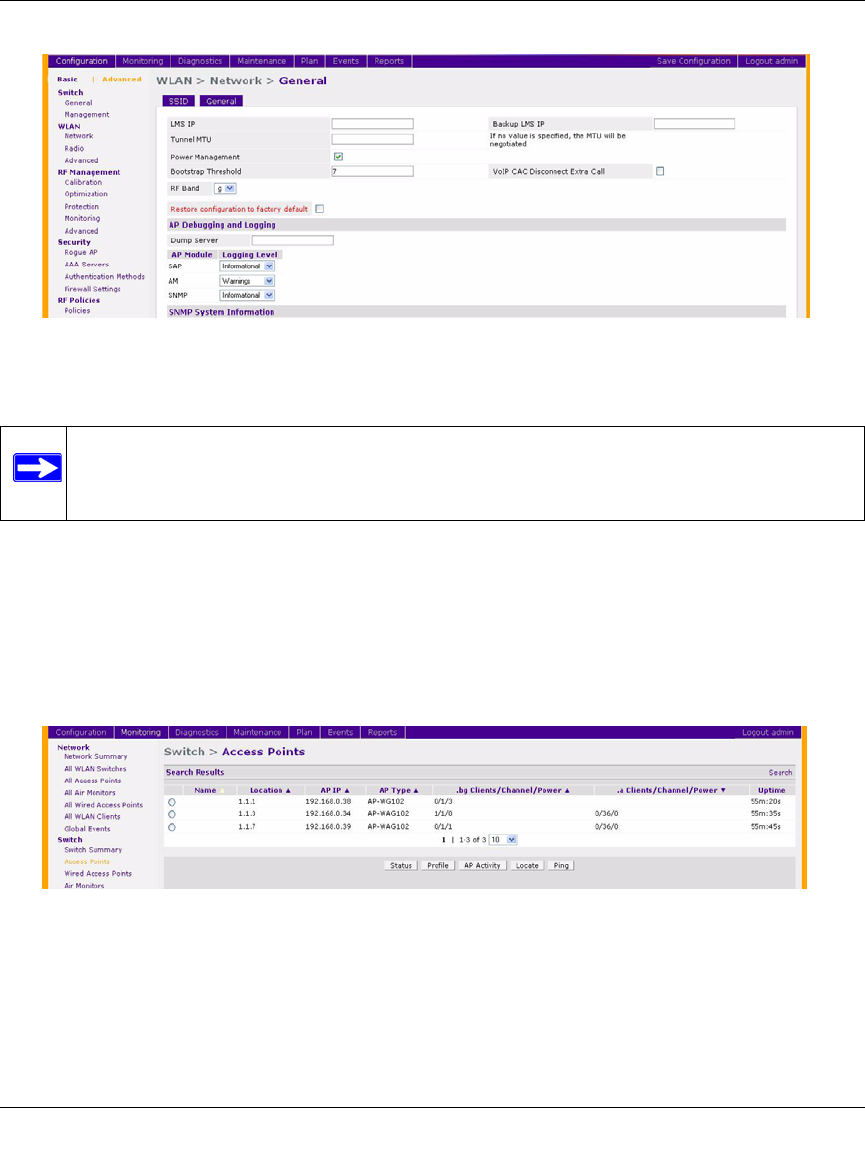

Figure 10-3

Note: To verify that the local WFS709TP has obtained a copy of the global settings,

check the local WFS709TP for the global configuration changes made on the

master, such as authentication changes and WMS settings.

Figure 10-4
