WFS709TP ProSafe Smart Wireless Switch Software Administration Manual

1-12 Overview of the WFS709TP

v1.0, June 2007

A user is assigned to a VLAN by one of several methods, and there is an order of precedence to

these methods.The methods for assignment of VLANs are (from lowest to highest precedence):

1. The VLAN is configured for the AP location.

2. The VLAN is derived from rules based on user attributes SSID, BSSID (Basic Service Set

Identifier), user MAC, location, and encryption type. Within the set of possible user-derivation

rules, a rule that derives a specific VLAN takes precedence over a rule that derives a user role

that may have a VLAN configured for it.

3. The VLAN is configured for a default role for an authentication method, such as 802.1x or

VPN.

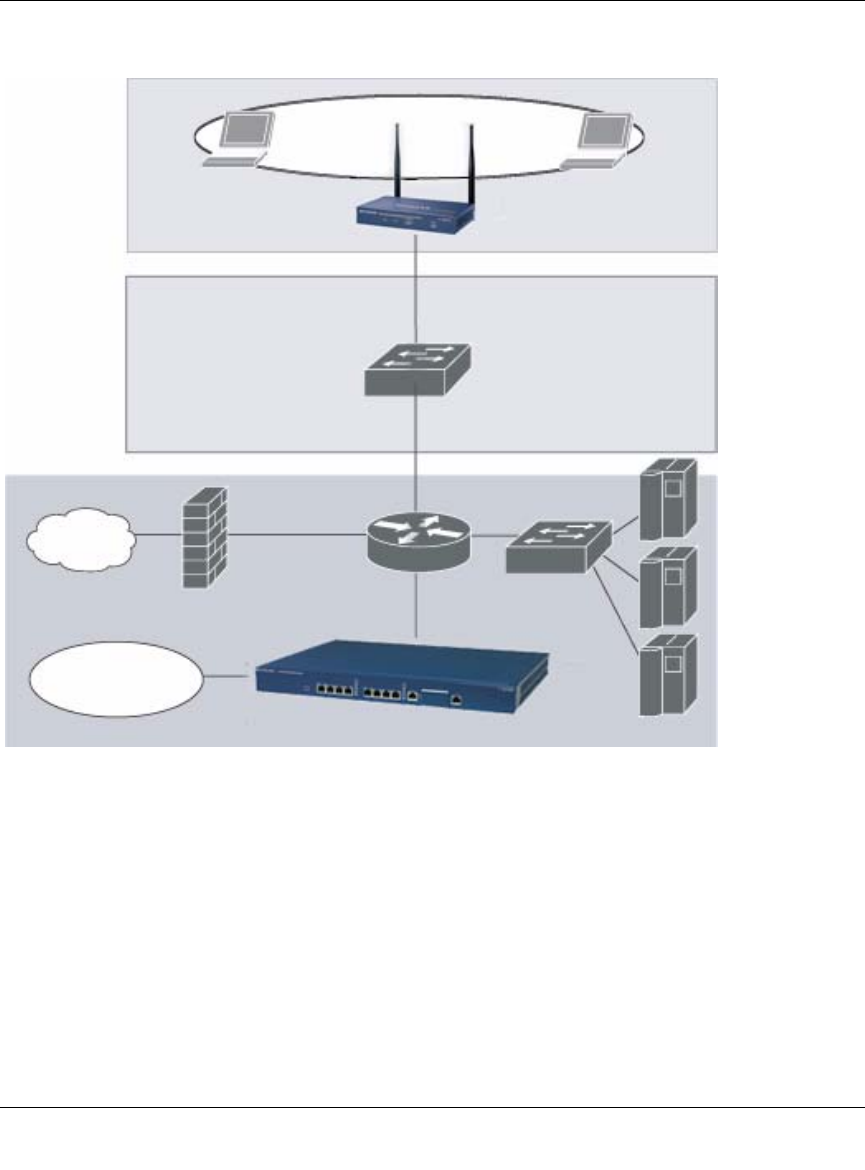

Figure 1-5

WFS709TP

Internet

Floor

Wiring

closet

VLAN 20

Data center

Netgear AP
