User Guide

WFS709TP ProSafe Smart Wireless Switch Software Administration Manual
2-16 Deploying a Basic WFS709TP System
v1.0, June 2007
2. Select the Enable DHCP Server checkbox.
3. In the Pool Configuration section, click Add.
4. On the Add DHCP Pool page, enter information about the subnetwork for which IP addresses
are to be assigned (Figure 2-13). Click Done.
5. If there are addresses that should not be assigned in the subnetwork:
a. Click Add in the Excluded Address Range section.
b. Enter the address range in the Add Excluded Address section.
c. Click Done.
6. Click Apply at the bottom of the page.
7. At the top of the page, click Save Configuration.
Locate the WFS709TP
An AP can discover the IP address of the WFS709TP in one of the following ways:
• From a DNS server

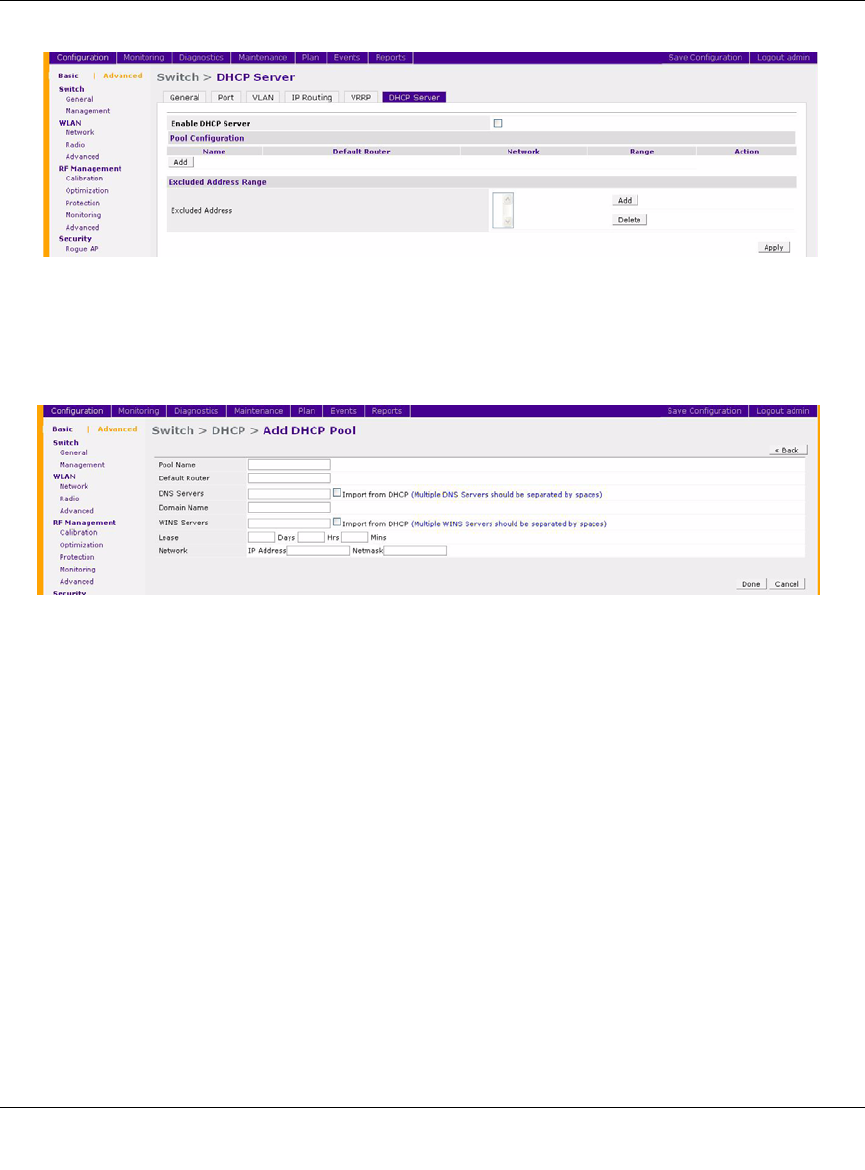

Figure 2-12
Figure 2-13
