WFS709TP ProSafe Smart Wireless Switch Software Administration Manual
3-2 Configuring Network Parameters
v1.0, June 2007

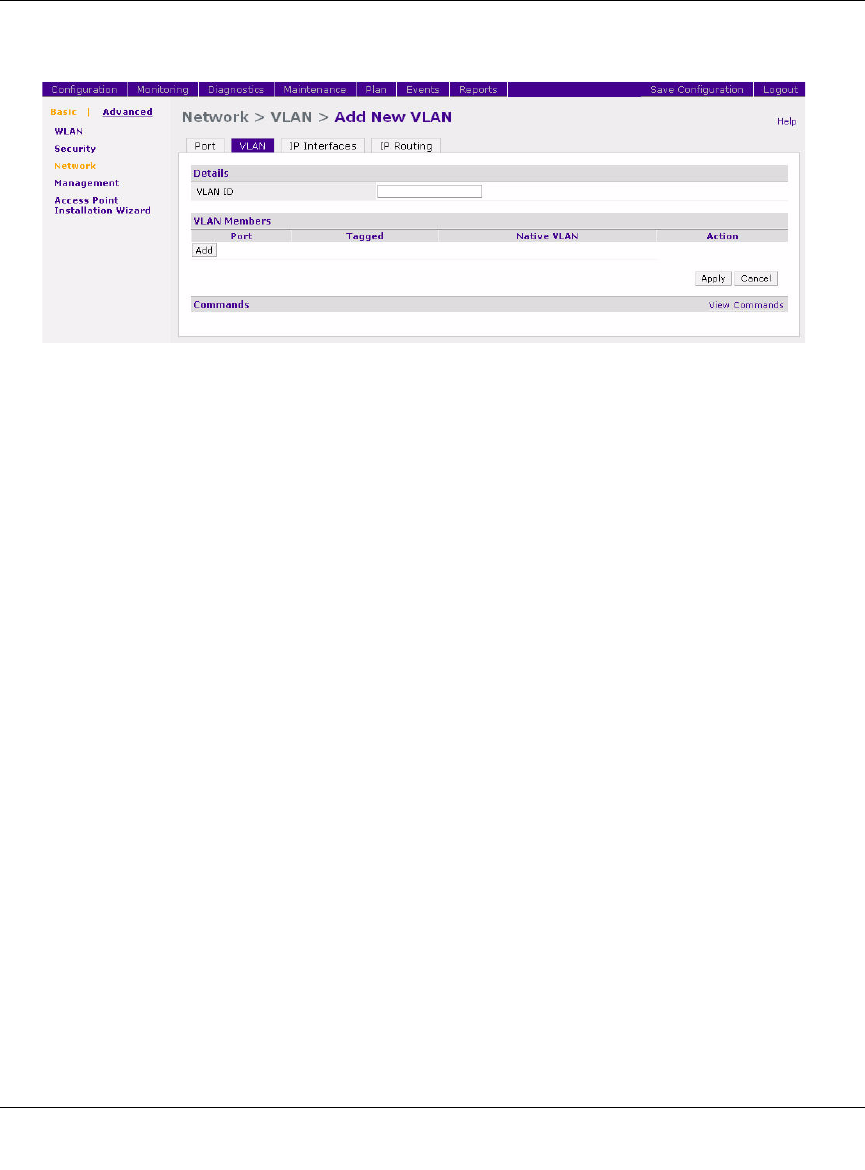

3. On the Add New VLAN screen (Figure 3-1), enter the VLAN ID.
4. To add physical ports to the VLAN, click Add in the VLAN Members section, then select the
port to add to the VLAN.
• You can specify whether the port uses 802.1q tagging.
• For ports that use 802.1q tagging, you can also specify whether the VLAN is the native
VLAN for the port (frames on the native VLAN are not tagged).
5. Click Add.
6. Click Apply.
Assigning a Static Address to a VLAN
To assign a static IP address to a VLAN:
1. Navigate to the Configuration > Basic > Network > IP Interfaces page on the browser interface
(Figure 3-2).
2. Click Edit for the VLAN you just added.
Figure 3-1
