For example, the following steps configure the DHCP server on the WFS709TP to assign
addresses to authenticated employees; the IP address of the DNS server obtained by the
WFS709TP via DHCP is provided to clients along with their IP address.
1. Navigate to the Configuration > Advanced > Switch > General > DHCP Server page.
2. Select Enable DCHP Server.
3. Under Pool Configuration, select Add.
4. For Pool Name, enter employee-pool.
5. For Default Router, enter 10.1.1.254.
6. For DNS Servers, select Import from DHCP.
7. For WINS Servers, select Import from DHCP.
8. For Network, enter 10.1.1.0 for IP Address and 255.255.255.0 for netmask.
9. Click Done.
Configuring Static Routes
To configure a static route (such as a default route) on the WFS709TP, do the following:
1. Navigate to the Configuration > Advanced > Switch > General > IP Routing page
(Figure 3-4).
2. Click Add to add a static route to a destination network or host. Enter the destination IP and
network mask (255.255.255.255 for a host route) and the next-hop IP address.

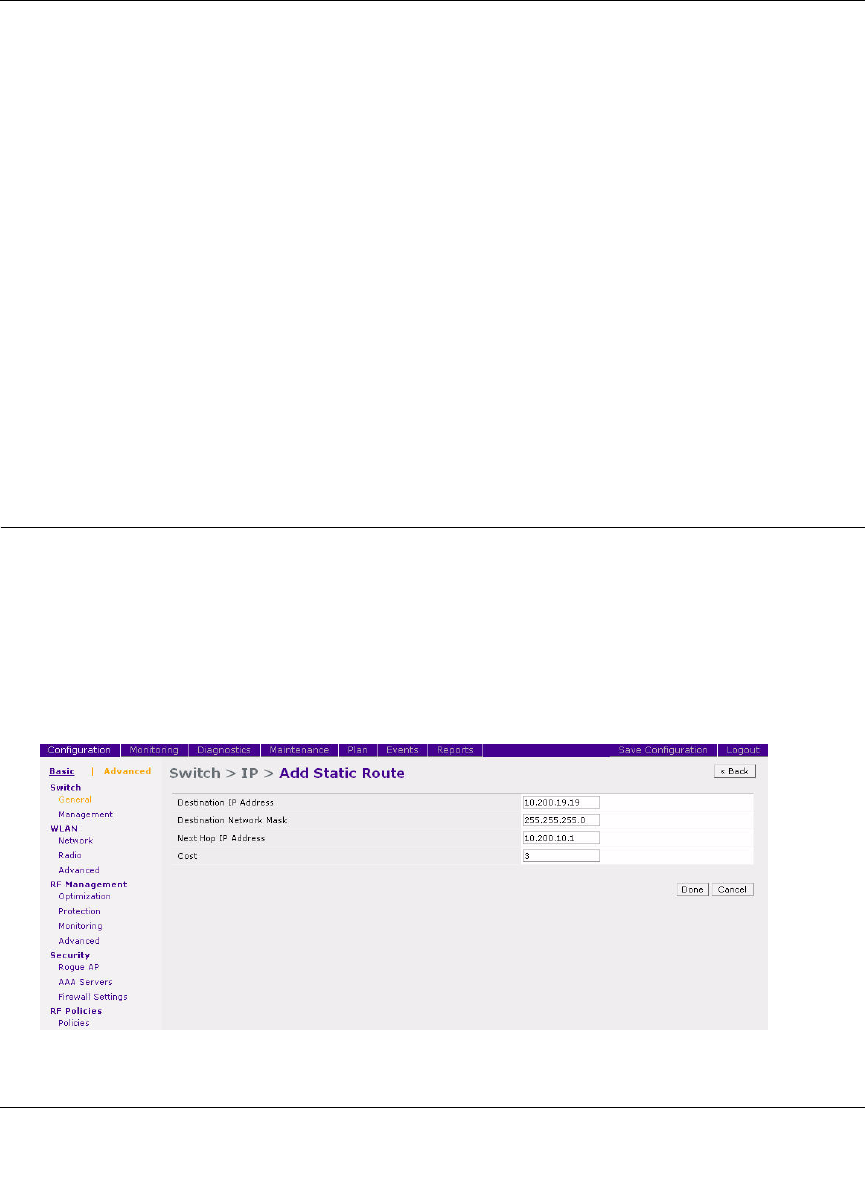

Figure 3-4
