Installation and Configuration
24
ProSafe Wireless-N Access Point WNAP210
RADIUS Server Settings
You can set up or modify the RADIUS server settings to compliment network authentication
security options. The RADIUS server needs to be used with Legacy 802.1x, and can be used
with WPA and WPA2 network authentication. When using a RADIUS server, specify the
RADIUS server settings before completing the network authentication security profile.
The RADIUS server settings apply to all profiles. They o need to be configured only once per
access point.
To set up or modify the RADIUS server settings:

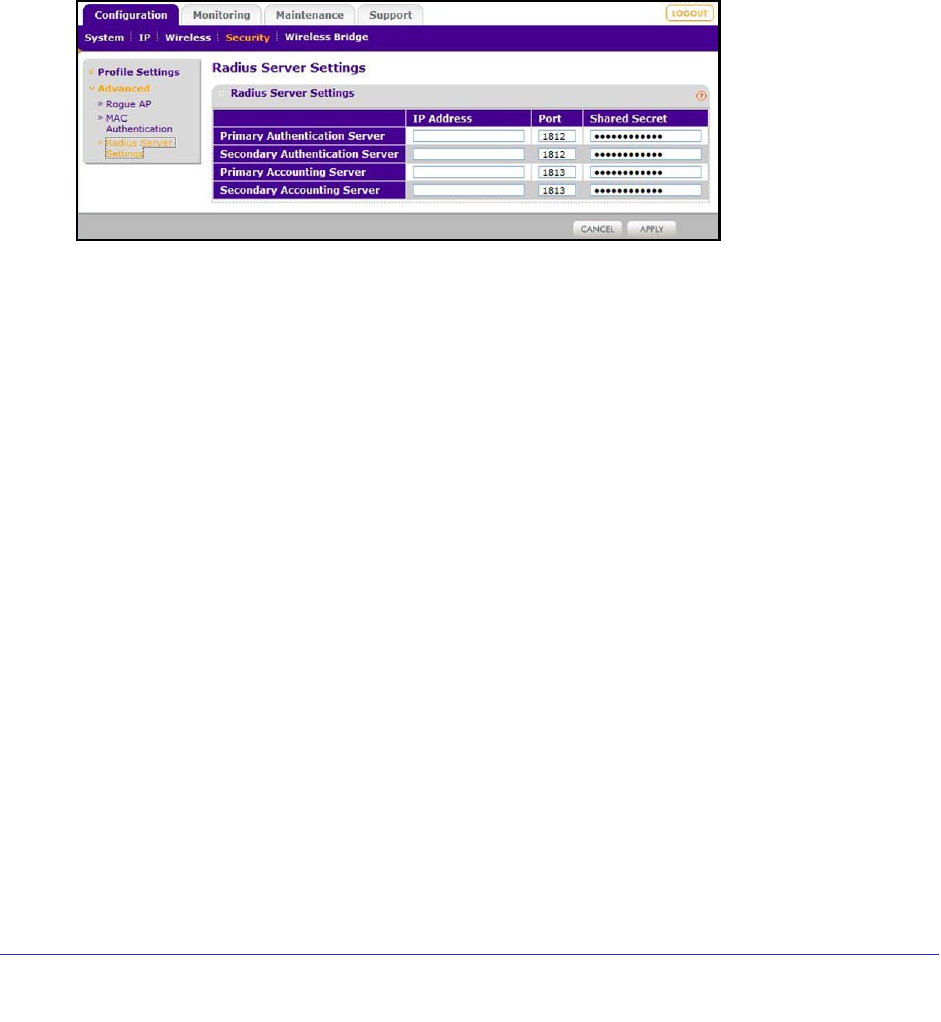

1. Select Configuration > Security > Advanced > RADIUS Server Settings. The
RADIUS Server Settings screen displays:
2. Enter the following RADIUS server settings:
• Authentication Server. This configuration is required for authentication using a
RADIUS server.The IP address, port number, and shared secret are required for
communication with the primary RADIUS server. You can also configure a secondary
RADIUS server to use, if the primary RADIUS server fails.
- IP Address. The IP address of the RADIUS server. The default is 0.0.0.0.
- Port. The port number of the RADIUS server. The default is 1812.
- Shared Secret. This is shared between the wireless access point and the
RADIUS server when the supplicant (wireless client) is authenticated.
• Primary Accounting Server. This configuration is required for accounting using a
RADIUS server. The IP address, port number, and shared secret are required for
communication with the primary RADIUS server. You can also configure a secondary
RADIUS server to use if the primary RADIUS server fails.
- IP Address. The IP address of the RADIUS server. The default is 0.0.0.0.
- Port. Port number of the RADIUS server. The default: 1813.
- Shared Secret. This is shared between the wireless access point and the
RADIUS server when the supplicant (wireless client) is authenticated.
3. Click Apply to save your settings.
