Installation
The installation of RF module is very easy. Just follow the steps below and you can
complete the installation:

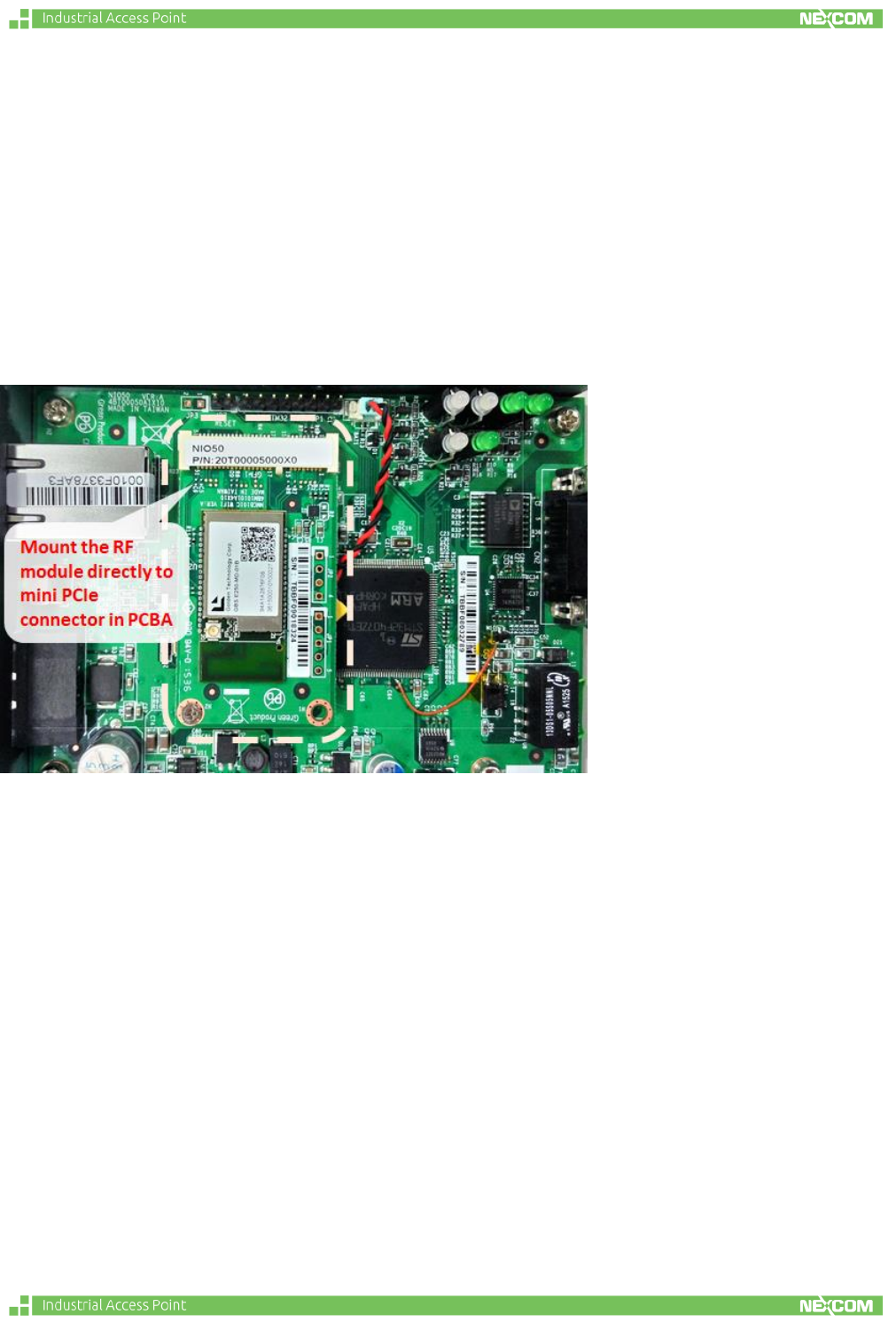

Insert the radio module into mini PCIe slot in the PCBA.
Screw up to fasten the module tightly inside PCBA.
Note: The mini PCIe pin definition is different from standard mini PCIe module in
other Wi-Fi application. The embedded PCBA should follow the mini PCIe pin
definition to design the pin assignment to connect this radio module.
