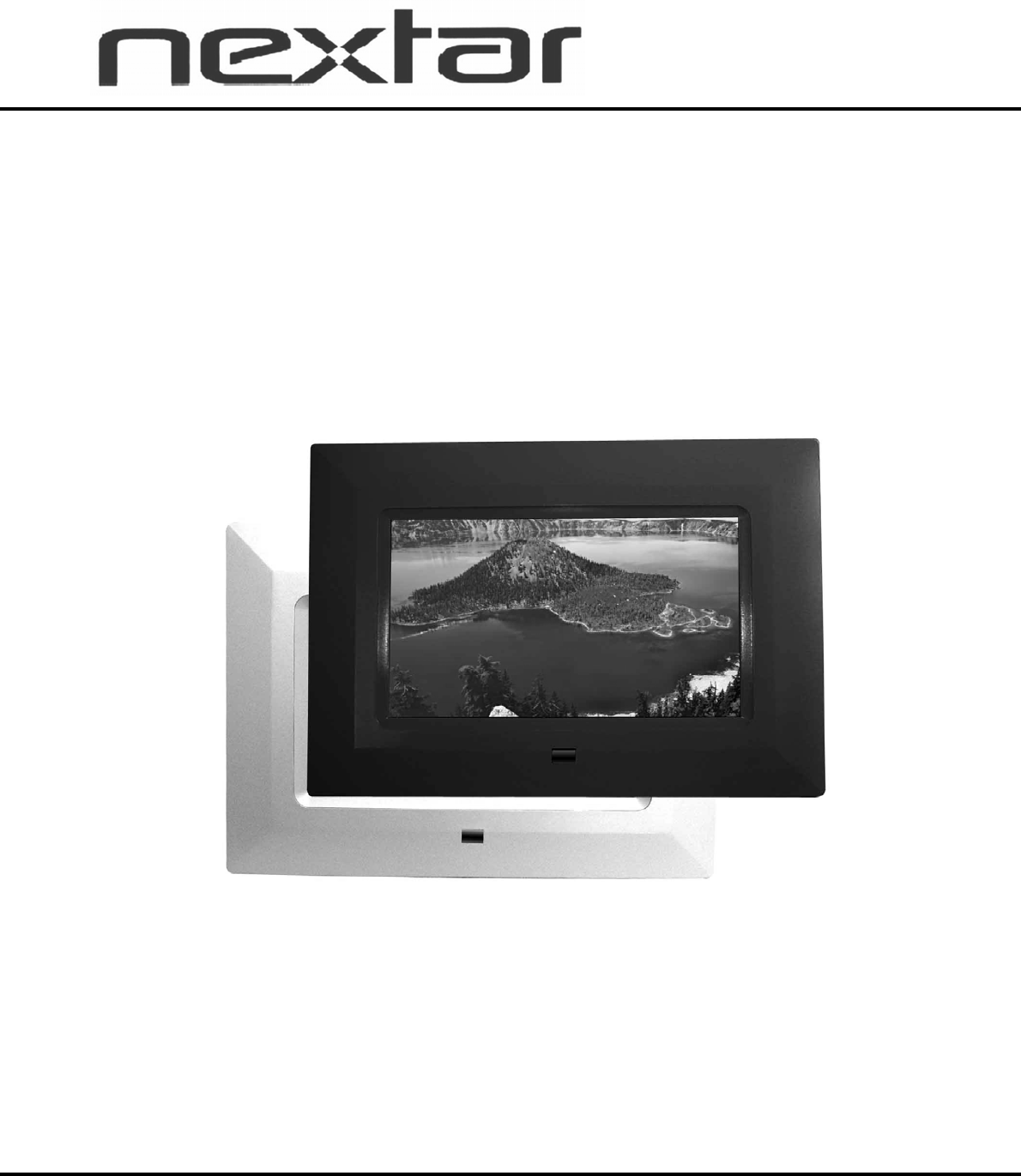

N7-108 User’s Manual Digital Photo Frame
Introduction Thank you very much for choosing our Digital Photo Frame. Before you begin to use this device, please read this manual thoroughly and keep it available for future reference. This manual will present you with the exciting features provided by our Digital Photo Frame, which allows you to enjoy unbelievably amazing visual & audio experience. With our Digital Photo Frame, you can easily and quickly view photos directly from your digital camera’s memory card.
Safety Precautions and Maintenance ★ For indoor use only. ★ To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. ★ To prevent overheating, never block any vents on the back of the digital photo frame. ★ Keep your Digital Photo Frame out of direct sunlight. Direct sunlight may cause damage. ★ Always use the buttons built in to the memory card slots to remove memory cards from the device.
To Remove and Replace the Picture Frame Color Panel: Photo 1 With both hands on the picture frame panel, place thumbs on the upper portion of the frame and index fingers at the corners. Lift the corners with the index finger. Photo 3 To change panel, simply place the panel over the frame and press down with thumbs and index fingers. Photo 2 Frame will lift off.
Preparation 1. Install the support bracket for the device. Plug the Digital Photo Frame power adaptor into a working electrical outlet. 2. Turn on the main power using the switch on the back of the Digital Photo Frame. Then press the「POWER」 button on the remote control or on the top of the Digital Photo Frame.
Key Features and Remote Control Key Functions: 1. POWER: Turn the device on / off. 2. ENTER: Press this button once to play the selected file. Press the button one more time, the display will return to the Root Menu. 3. PHOTO: Press this button to select the「PHOTO」 Mode available on the Main Menu. 4. MOVIE: Press this button to enter the 「VIDEO」Mode. 5. MUSIC: Press this button to enter the 「MUSIC」Mode. 6. USB: USB interface to connect to U disc/MP3 Player. 7.
Remote Control MOVIE: Press this button to enter 「VIDEO」Mode. REPEAT: Press this button to activate all modes of the Repeat feature (chapter repeat, title repeat, folder repeat, etc.) 16:9/4:3: Press this button to choose the TFT LCD aspect ratios between 4:3 and 16:9. ROTATE: Press this button to adjust the viewing angle of the pictures. ZOOM: Press this button to enlarge the picture in increments of 2, 3, 4, 1/2, 1/3, 1/4, OFF.
ENTER: Press “ENTER” for the settings menu. EXIT: Press ”EXIT” to return to the previous menu. VOLUME +/-: Press ”VOLUME +/-” to adjust the player’s volume. : Press this button once to freeze the playback picture. : Press this button once to halt playback (pre-stop). Press the button again to terminate playback function and return to the main menu. : Press “ ” to return to the previous title/chapter/track/picture. : Press “ ” to skip ahead to the next title/chapter/track/picture.
Main Menu The screen will display as follows if the memory card has been correctly inserted. Make sure you have stored a song, photo, or video file on your memory card. PHOTO MUSIC VIDEO SETUP CLOCK Enter the Photo display mode directly Enter the music play mode directly Enter the video play mode directly Enter the setup mode directly Enter the clock mode directly Viewing your Pictures 1. Press the buttons either on the remote control or on the screen to operate the Digital Photo Frame. 2.
How to Play MP3 Files Please ensure that there are MP3 music files on your memory card (please read the Q&A section for more information). Note: While pictures are being displayed, press the BACK MUSIC button once to hear the MP3 files as background music. 1. Press the Right and Left arrow Keys on the remote control to select “Music” and then press the ENTER or MUSIC button on the remote control. 2. Press the directional keys to select the music file you want.
2. Press the arrow keys to select the video file you want to play, then press the ENTER button to confirm your selection. 3. Press the VOL+ or VOL- keys to adjust the volume. 4. Press the FWD and REV keys on the remote control to fast forward or fast reverse the track. 5. Press the Up arrow key or Down arrow key or PREV/NEXT key to select the previous or next video file, respectively.
SYSTEM SETUP Press the Right and Left arrow keys to navigate through the Setup Categories. Press the Up and Down arrow keys to navigate through setup function items. Press the Right and Left arrow keys to modify settings, and then press ENTER to confirm the settings. Operation: OSD LANGUAGE: OSD language settings. DEFAULT: Restores your Digital Photo Frame back to the factory default settings. S/W VERSION: Shows the current version of the software.
MUSIC: Allows you to turn on or off the background music while displaying photos. Press the Right or Left arrow keys and the ENTER button to turn the music ON or OFF. JPEG INFO: Allows you to adjust the JPEG photo ON/OFF settings. Press the Right or Left arrow keys and the ENTER button to turn ON or OFF. PLAY MODE:Allows you to adjust the order the photos will be displayed in. Press the Right or Left arrow keys and the ENTER button to switch the mode between NORMAL or RANDOM mode.
CLOCK SETUP Function: DATE SETUP: Press arrow keys and ENTER button to setup the date. TIME SETUP:Press arrow keys and ENTER button to setup the time of clock. ALARM SETUP: Press arrow keys and ENTER button to setup the time of alarm. POWER ON: Press arrow keys and ENTER button to setup the time of power on. POWER OFF: Press arrow keys and ENTER button to setup the time of power off. How to Setup the Clock Setup the local time and calendar Press the Up and Down arrow keys to select functions.
Question Answer The Digital Photo Frame is compatible with Photo: JPEG photo, music, and video files in which formats? Music: MP3 Video: MPEG-1 and AVI*. What kinds of memory cards are compatible with Secure Digital Card (SD), Multimedia Card the Digital Frame? (MMC), SmartMedia Card, Memory Stick. How can I get MP3 music files? Use your personal computer and audio editing software to covert your music to MP3 format. Transfer the MP3 file to the memory card by using a Memory Card Reader.
Specifications Display: 7” TFT LCD 480 X 234 (RGB) Speakers (stereo) Power: AC Adapter; Input 100-240V; Output 12V 1-1.
N7-108 Manuel de l’utilisateur Cadre photo numérique
Introduction Merci d’avoir choisi notre Cadre photo numérique. Avant d’utiliser cet appareil, veuillez lire ce manuel attentivement et le garder à disposition pour toute consultation ultérieure. Ce manuel vous fera découvrir les nombreuses fonctions offertes par notre Cadre photo numérique, qui vous permet de profiter d’une incroyable expérience audiovisuelle.
Précautions d’emploi et entretien ★ Utilisation en intérieur uniquement. ★ Afin de réduire les risques d’incendie ou de choc électrique, ne pas exposer cet appareil à la pluie ou à l’humidité. ★ Afin d’éviter la surchauffe, ne jamais obstruer les ventilations situées à l’arrière du Cadre photo numérique. ★ Laissez votre Cadre photo numérique à l’abri de la lumière directe du soleil ; celle-ci peut endommager l’appareil.
CHANGEMENT ET REMPLACEMENT du Cadre photo Panneau coloré: Photo 1 Avec vos deux mains positionnées sur le panneau du cadre photo, placez vos pouces sur la partie supérieure du cadre et vos index sur les coins. Soulevez les coins avec vos index. Photo 3 Pour changer de panneau, placez-le simplement sur le cadre and appuyez avec vos pouces et index.
Préparation 1. Installez le support de l’appareil. Branchez l’adaptateur du Cadre photo numérique dans une prise électrique. 2. Mettez le bouton situé à l’arrière du Cadre photo numérique en position marche. Puis appuyez sur la touche 「POWER」 de la télécommande ou située sur le dessus du Cadre photo numérique.
Fonctions des touches et télécommande Fonctions des touches : 1. POWER : Met l’appareil sous / hors tension. 2. ENTER : Appuyez sur cette touche une fois pour lire le fichier sélectionné. Appuyez à nouveau pour que l’affichage retourne au Menu d’accueil. 3. PHOTO : Appuyez sur cette touche pour sélectionner le mode「PHOTO」 disponible dans le Menu principal. 4. MOVIE : Appuyez sur cette touche pour entrer en mode「VIDEO」. 5. MUSIC : Appuyez sur cette touche pour entrer en mode「AUDIO」. 6.
Télécommande MOVIE : Appuyez sur cette touche pour entrer en mode「VIDEO」. REPEAT : Appuyez sur cette touche pour activer tous les modes de la fonction Repeat (répétition de chapitre, de titre, de dossier, etc.) 16/9-4/3 : Appuyez sur cette touche pour sélectionner le format TFT LCD 4/3 ou 16/9. ROTATE : Appuyez sur cette touche pour régler l’angle de visualisation des images. ZOOM : Appuyez sur cette touche pour agrandir l’image par augmentations de 2 ; 3 ; 4 ; 1/2 ; 1/3 ; 1/4 ; AUCUN.
ENTER: Appuyez sur “ENTER” pour le menu Paramètres. EXIT: Appuyez sur ”EXIT” pour retourner au menu précédent. VOLUME +/-: Appuyez sur ”VOLUME +/-” pour régler le volume du lecteur. : Appuyez une fois sur cette touche pour figer l’image en cours de lecture. : Appuyez une fois sur cette touche pour arrêter la lecture (pré-arrêt). Appuyez à nouveau sur la touche pour arrêter la fonction lecture et retourner au Menu principal.
Menu principal Si la carte mémoire a été correctement insérée, l’écran affiche les indications cidessous. Assurez-vous qu’il y ait une chanson, une photo ou un fichier vidéo sur votre carte mémoire. PHOTO MUSIC VIDEO SETUP CLOCK Entrez directement en mode Affichage photo Entrez directement en mode Lecture audio Entrez directement en mode Lecture vidéo Entrez directement en mode Configuration Entrez directement en mode Horloge Visionnage de photos 1.
Lecture de fichiers MP3 Assurez-vous qu’il y ait des fichiers audio MP3 sur votre carte mémoire (veuillez lire la section Q&R pour plus de détails). NB : Durant l’affichage d’images, appuyez une fois sur la touche BACK MUSIC pour écouter les fichiers MP3 en musique de fond. 1. Appuyez sur les touches Flèche droite et gauche de la télécommande pour sélectionner “Music”, puis appuyez sur la touche ENTER ou MUSIC de la télécommande. 2.
2. Appuyez sur les flèches pour sélectionner le fichier vidéo souhaité, puis appuyez sur la touche ENTER pour confirmer votre choix. 3. Appuyez sur la touche VOL+ ou VOL- pour régler le volume. 4. Appuyez sur les touches FWD et REV de la télécommande pour faire avance rapide ou retour rapide. 5. Appuyez sur la flèche haut ou la flèche bas ou sur la touche PREV/NEXT pour sélectionner le fichier vidéo précédent ou suivant, respectivement.
PARAMETRAGE SYSTEME Appuyez sur les flèches droite ou gauche pour naviguer à travers les catégories de paramétrage. Appuyez sur les flèches haut ou bas pour naviguer à travers les différentes fonctions de paramétrage. Appuyez sur les flèches droite ou gauche pour modifier la configuration et appuyez sur la touche ENTER pour confirmer les changements de configuration. Opération: OSD LANGUAGE: Paramétrage OSD de la langue. DEFAULT: Restaure la configuration initiale par défaut de votre Cadre photo.
PLAY MODE:Vous permet de choisir l’ordre d’affichage des photos. Appuyez sur les flèches droite ou gauche ainsi que sur le bouton ENTER pour passer du mode NORMAL au mode RANDOM. CONFIGURATION DE L’AFFICHAGE VIDEO Opération: Appuyer sur les flèches haut ou bas pour sélectionner les fonctions. Appuyez sur les flèches droite ou gauche pour choisir les paramètres. Appuyez sur le bouton ENTER pour les valider.
configurer l’alarme. POWER ON : Appuyez sur les flèches ainsi que sur la touche ENTER pour configurer l’heure de mise sous tension. POWER OFF : Appuyez sur les flèches ainsi que sur la touche ENTER pour configurer l’heure de mise hors tension. Comment configurer l’horloge Configuration de l’heure et date locales Appuyez sur les flèches haut ou bas pour sélectionner les fonctions. Appuyez sur les flèches gauche ou droite pour sélectionner la configuration souhaitée. Appuyez sur la touche ENTER pour valider.
Question Avec quels formats de fichiers photo, audio et vidéo le Cadre photo numérique est-il compatible ? Réponse Photo : JPEG Audio : MP3 Vidéo : MPEG-1 et AVI*. Quels types de carte mémoire sont compatibles Secure Digital Card (SD), Multimedia Card avec le Cadre photo numérique ? (MMC), SmartMedia Card, carte Memory Stick. Comment puis-je obtenir des fichiers audio MP3 ? Convertissez votre musique au format MP3 à l’aide de votre ordinateur ou d’un logiciel d’édition audio.
Fiche technique Affichage : 7” TFT LCD 480 X 234 (RVB) Haut-parleurs (stéréo) Alimentation : Adaptateur CA ; Entrée 100-240 V ; Sortie 9-12 V 1,5 A Conditions d’utilisation Appareil en fonctionnement : 0~35℃, Humidité 0~85% Appareil stocké : -20~60℃, Humidité 10~90% Accessoires : Adaptateur AC Télécommande Carte de garantie Carte d’enregistrement Carte de retour Câble USB Manuel 15
