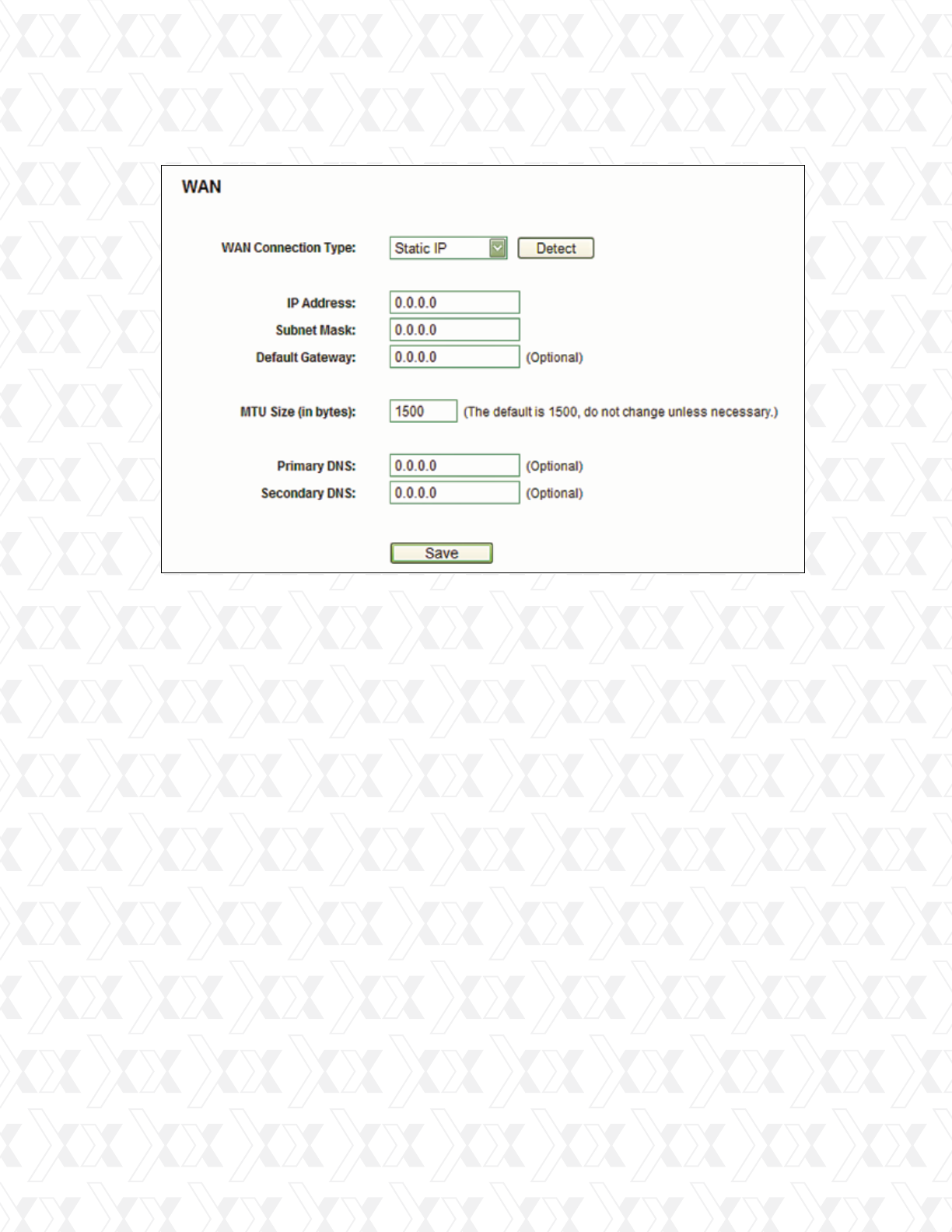

Figure 3-23 WAN - Static IP
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP, usu-
ally this is 255.255.255.0.
Default gateway - (Optional) Enter the gateway IP address in dotted-decimal notation pro-
vided by your ISP.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet net-
works is 1500 Bytes. It is not recommended that you change the default MTU Size unless
required by your ISP.
Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal
notation provided by your ISP.
•
•
•
•
•
If your ISP provides a PPPoE connection, select PPPoE option. In that case, you must fill in
following parameters (Figure 3-24):
