User's Manual

Nexxt Solutions – Wireless-N 3G router
42

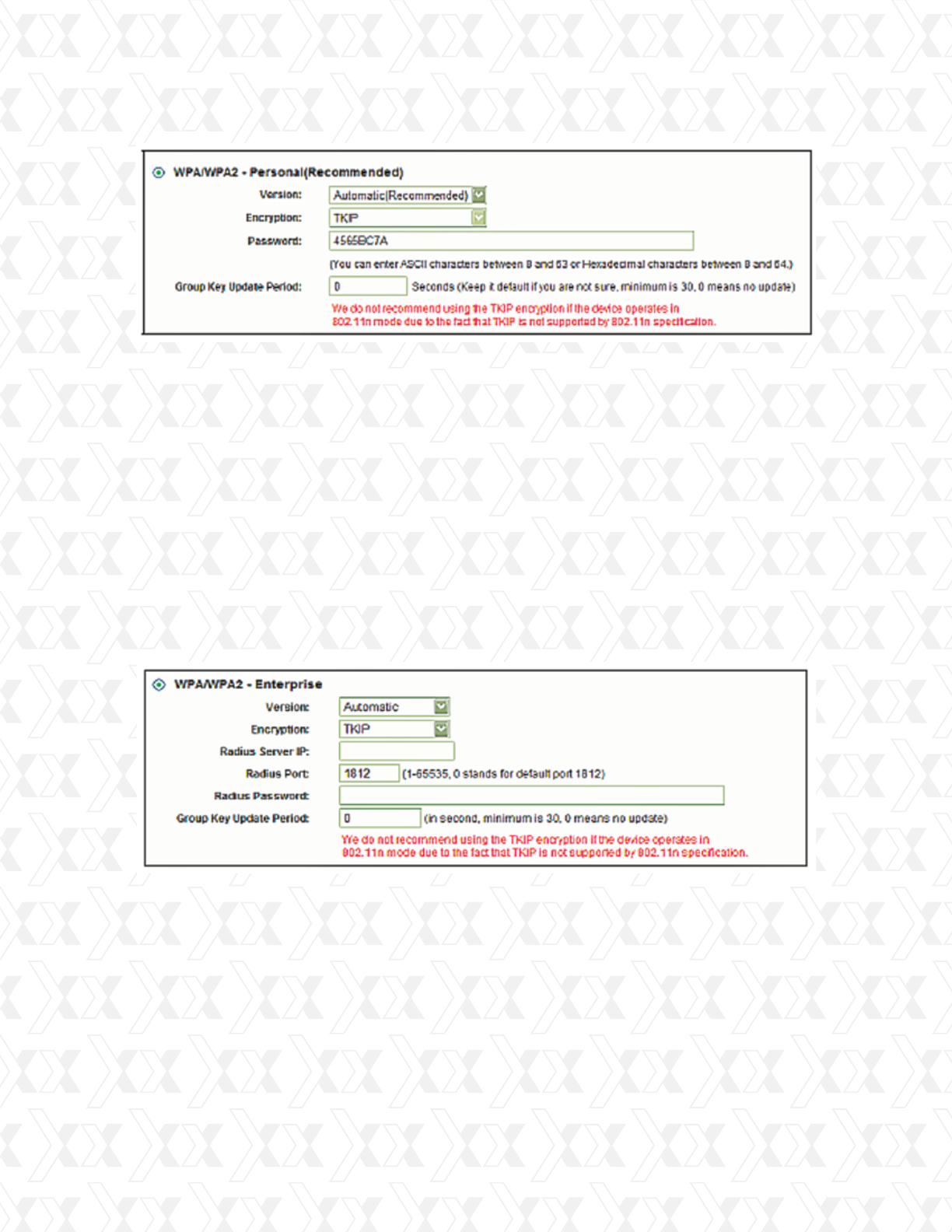

Figure 6-5
PSK Password - You can enter ASCII characters between 8 and 63 characters or 8 to 64
Hexadecimal characters.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
WPA /WPA2 – It is based on the radius server.
Version – Choose the WPA encryption method from the pull-down list. The default setting is
Automatic, which automatically sets WPA (Wi-Fi Protected Access) or WPA2 (WPA ver-
sion 2), based on the wireless station’s capability and request.
Encryption – You can either select Automatic, or TKIP or AES.
Radius Server IP - Enter the IP address of the radius server.
Radius port - Enter the port used by the radius server.
Radius Password - Enter the password for the radius server.
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or higher. Enter 0 to disable the update.
WEP - It is based on the IEEE 802.11 standard. If you select this check box, you will find a
notice in red as show in Figure 6-7
Note: If you check the WPA/WPA2 radio button and choose TKIP encryption, a notice in red
will be displayed, as shown below in Figure 6-6
Be sure to click the Save button to save your settings on this page.
•
•
•
•
•
•
•
•
•
Figure 6-6
