User Manual
This time delay switch will allow you to activate a second
stage of nitrous as a function of time.

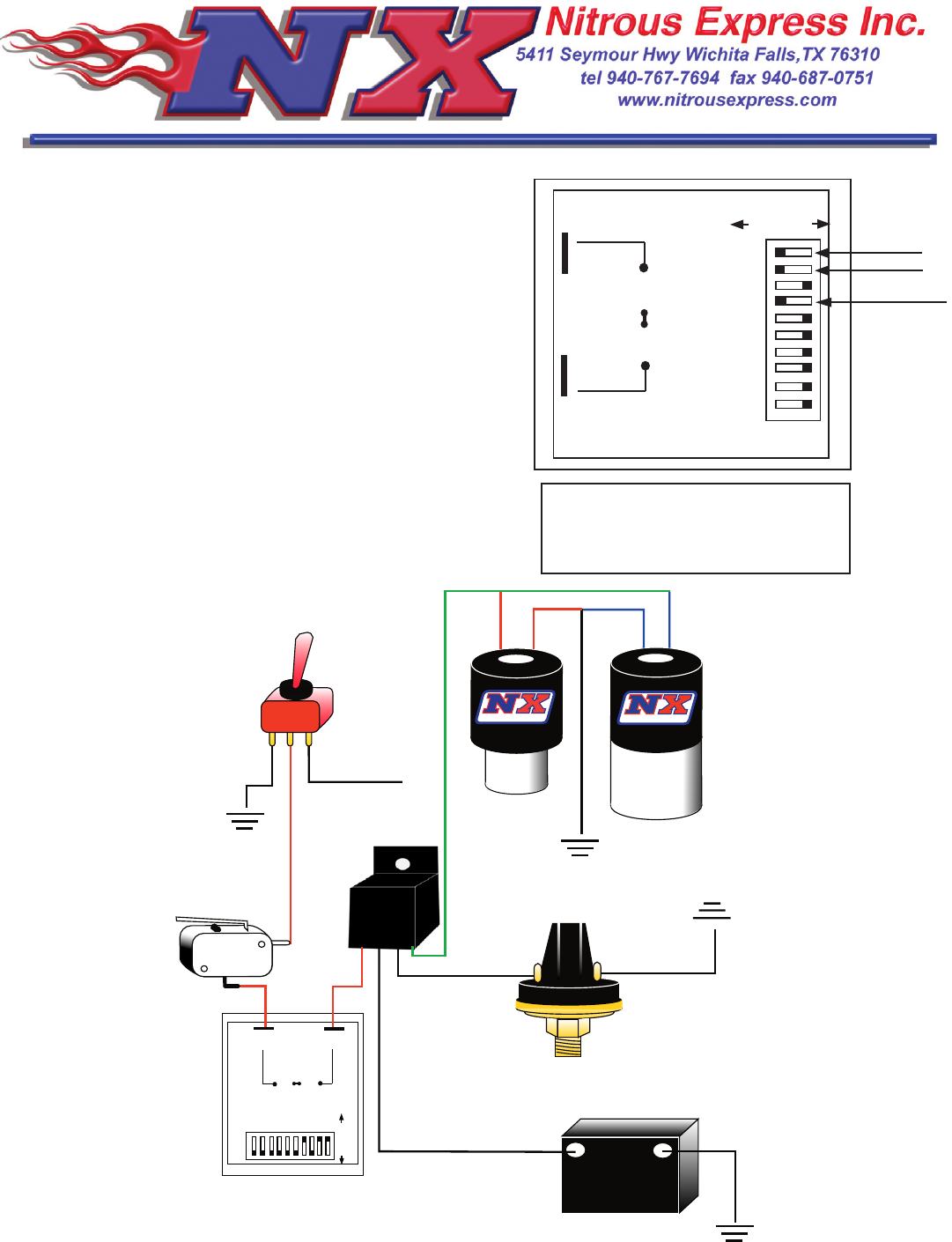

Use the rocker switches on the top of the timer to set the
amount of delay (0.1 to 102.3 seconds).
If using an RPM switch, connect the yellow wire from the
RPM switch to the white wire of the relays.
If using a push button, connect it in place of the throttle
switch shown.
CAUTION: The time delay switch is only rated for 10
amps. Using the relay is a must.
NITROUS EXPRESS
NEXT GENERATIONNITROUS SYSTEMS
NITROUS EXPRESS
NEXT GENERATIONNITROUS SYSTEMS
This time delay switch is set to
activate a second stage of nitrous
after a delay of 1.10 seconds
