Chapter 3
Configuration via Local Pages
E-DOC-CTC-20051017-0169 v0.1
45
Example of a completed
page

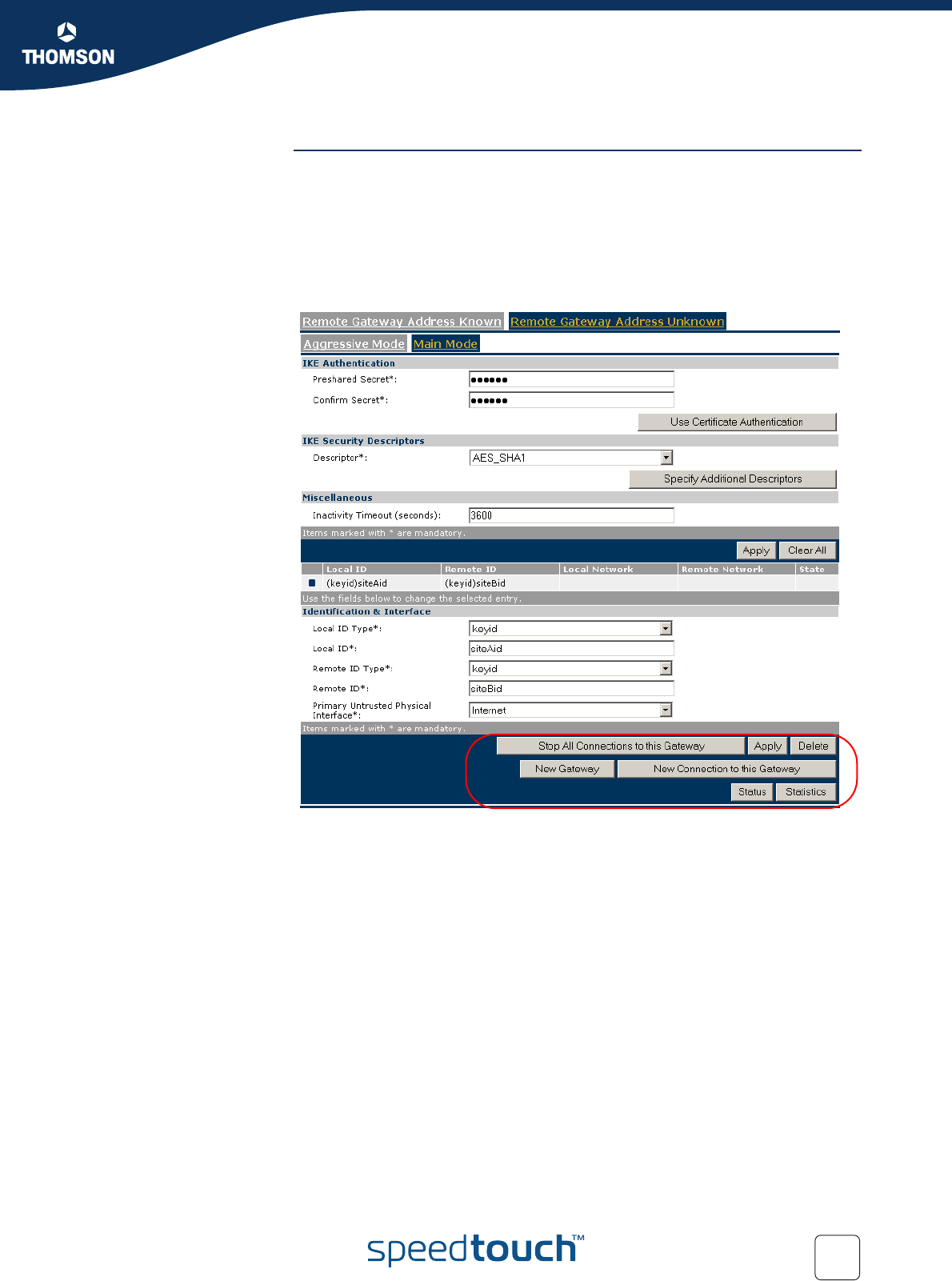

The illustration below shows a completed page. The data in the various fields
correspond with the VPN layout shown on page 25:
Pre-shared key was selected as authentication method.
keyid was selected for the local and remote identity.
After the page was completed, the remote gateway settings were added to the
configuration by clicking Add. At the bottom of the screen additional buttons
appear, which are explained below.
