Chapter 3
Configuration via Local Pages
E-DOC-CTC-20051017-0169 v0.1
78
3.5.1 Peer Profiles Page
Peer Profiles

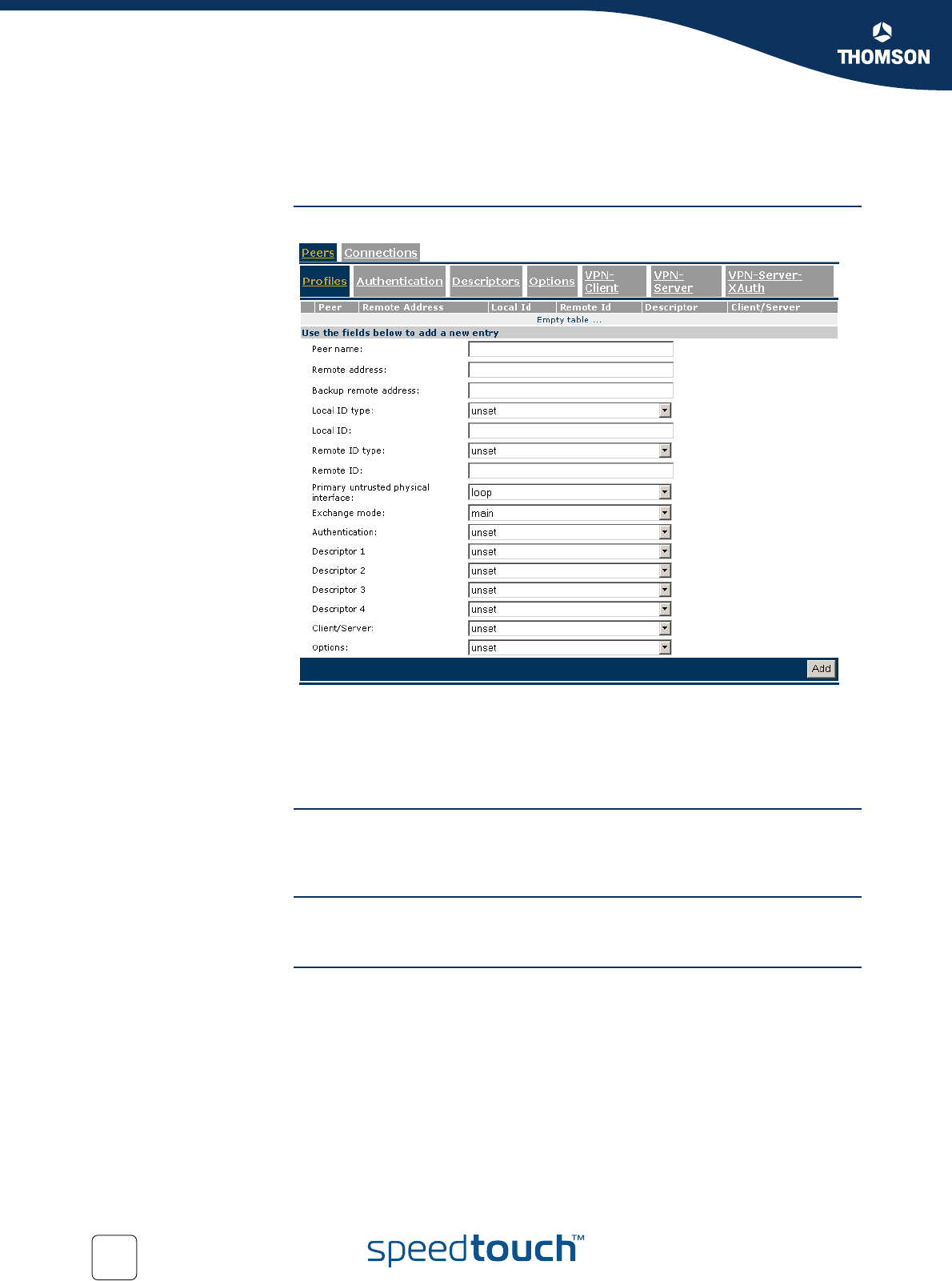

page layout
The Peer Profiles page bundles all parameters that define a Peer.
A number of parameters makes use of symbolic descriptors that are defined and
managed on other sub-pages. On the Profiles page, these descriptors are selected
by their symbolic name from a list. Therefore, you need to prepare the descriptors
in other Peers sub-pages, before a complete Peer Profile can be composed in the
Peer Profiles page.
Peer name Give the peer a symbolic name. This name only has local significance inside the
SpeedTouch™. This parameter is not used in the IKE negotiations with the remote
Security Gateway.
Remote address This address localizes the remote Security Gateway in the IP network. Either the
public IP address or the Fully Qualified Domain Name can be used as an identifier.
Backup remote address When a redundant remote Security Gateway is available, its public IP address or
domain name can be specified here. In a basic IPSec configuration, you leave this
field open.
