I P 6 7 C o m b i n a t i o n D - S U B C o n n e c t o r s

Section 7

IP67 Combination D-SUB Connectors

CONEC Combination D-SUB Connectors with

IP67-rating are suitable for use in environments

where increased protection against moisture and

contamination is necessary. All IP67 protected

Combination D-SUB Connectors are supplied already

populated with signal, high voltage, high power or

coaxial contacts. This is necessary to provide factory

assurance that the connector is properly sealed thus

ensuring its reliable protection in harsh environments.

The type of protection is defined by IEC 60529 which

also specifies the suitability of electrical components

for various ambient conditions. CONEC water resistant

connectors ensure a continuously secure connection

compliant with the IP67 rating. They are dustproof and

protected against temporary submersion into water.

Summary of content (30 pages)

PAGE 1
IP6 7 C o m b i n a t i o n D-SUB Connectors Section 7 IP67 Combination D-SUB Connectors CONEC Combination D-SUB Connectors with IP67-rating are suitable for use in environments where increased protection against moisture and contamination is necessary. All IP67 protected Combination D-SUB Connectors are supplied already populated with signal, high voltage, high power or coaxial contacts.
PAGE 2
IP67 Combination D-SUB C o n n e c t o r s Power details: ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Standard design with metal frame and O-ring Inside seal in the connector plug - water cannot penetrate into the housing Available for front or rear panel mounting on the enclosure Connector without frame for cable mounting 4-40 UNC or M 3 threaded insert Plastic materials comply with UL 94 V0 Machined precision contacts for heavy duty usage Various gold plating options available Basic connector dimensions - without frame in comp
PAGE 3
IP6 7 C o m b i n a t i o n D-SUB Connectors Part Number Creator 6 0 0 7 W 2 S A M 6 2 B 3 O X Product Line 6 = Shell: Brass tin plated with die-cast frame 4* = Shell: Brass tin plated with or without plastic frame 8* = Shell: Stainless steel with or without die-cast frame 9* = Shell: Stainless steel with plastic frame * on request Variations Shell size 1 = 5W1, 2W2C Shell size 2 = 3W3, 7W2, 11W1, 3W3C Shell size 3 = 5W5, 9W4, 13W3, 17W2, 21W1 Shell size 4 = 8W8, 13W6, 17W5, 21WA4, 25W3, 27W2 Shell size 5
PAGE 4
IP67 Combination D-SUB C o n n e c t o r s Technical data Mechanical and electrical characteristics Insulator Signal contacts Polyester GF (UL 94V-O) Coaxial contacts PTFE Shell Brass tin plated Contact plating Gold plated over nickel Contact material CU alloy Retaining clip CU alloy Current rating Test voltage between 2 contacts shell and contact Resistance between mated contacts 1000 V, 50Hz 1 min. ≤ 2.
PAGE 5
IP6 7 C o m b i n a t i o n D-SUB Connectors Technical informations Skin effect Alternating currents do not uniformly occupy the entire cross section of the conductor, rather inductance effect in the conductor deflects the current towards the surface of the conductor, whereby this deflection increases with the frequency. The resistive attenuation of a transmission line increases with the frequency as a result of this skin effect.
PAGE 6
IP67 Combination D-SUB C o n n e c t o r s IP-Code figure definitions 1. Code figure Definition Remark 0 Not protected   1 Protected against access to hazardous parts by the back of the hand. Protected against fixed foreign objects Ø ≥ 1.969” 50 mm.   2 Protected against access to hazardous parts with a finger. Protected against fixed foreign objects Ø ≥ .492” 12.5 mm.   3 Protected against access to hazardous parts with a tool. Protected against fixed foreign objects Ø ≥ .098” 2.5 mm.
PAGE 7
IP6 7 C o m b i n a t i o n D-SUB Connectors Mating conditions Float mount tolerance guide Rigid mount tolerance guide Rigid mount vertical to tolerance guide Panel cut-out Front panel mounting Rear panel mounting 7| 6 Shell size A ±0.1 B 1 2 3 4 5 20.50 28.80 42.50 59.10 56.30 20.90 29.20 42.90 59.40 57.00 ±0.1 C ±0.1 25.00 33.30 47.04 63.50 61.10 D ±0.1 11.40 11.40 11.40 11.40 14.10 E ±0.1 13.00 13.00 13.00 13.00 15.
PAGE 8
IP67 Combination D-SUB C o n n e c t o r s Panel Mounting Front panel mounting Rear panel mounting Grounding for Coaxial contacts Hole plug To optimize a perfect ground connection from the coaxial outer conductor to the metal shell (Factory installed). The hole plug can be used for both male and female connector. The assembly is implemented from the mating side. The hole plug is used to plug unwanted holes in the insulator.
PAGE 9
IP6 7 C o m b i n a t i o n D-SUB Connectors Solder Profile Connector Type Preheating Duration max. Solder bath Temperature max.
PAGE 10
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB Solder cup – Precision machined contacts – For wire size AWG 20 Description RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 11
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB Solder pin – Straight – Precision machined contacts Description Contacts: high power or coaxial contacts Mounting style: with 4-40 UNC or M3 threaded insert Quality class 3 (also available in quality class 1) Shell: Brass tin plated (Stainless steel on request) Nickel plated die-cast frame (Black plastic frame on request) Suitable hex bolts are supplied loose RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 12
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB Solder pin – Straight – Precision machined contacts – Threaded rear spacer with PCB clip Description Contacts: high power or coaxial contacts Mounting style: with 4-40 UNC or M3 threaded rear spacer with PCB clip Quality class 3 (also available in quality class 1) Shell: Brass tin plated (Stainless steel on request) Nickel plated die-cast frame (Black plastic frame on request) Suitable hex bolts are supplied loose RoHS compliant – CSA listed
PAGE 13
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB Solder pin – Angled – .189” 4.8 mm – Precision machined contacts – Metal bracket Description Contacts: high power or coaxial contacts Mounting style: metal bracket with 4-40 UNC or M3 threaded insert Quality class 3 (also available in quality class 1) Shell: Brass tin plated (Stainless steel on request) Nickel plated die-cast frame (Black plastic frame on request) Suitable hex bolts are supplied loose RoHS compliant – CSA listed, File No.
PAGE 14
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB Solder pin – Angled – .189” 4.
PAGE 15
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB Solder pin – Angled – .276”/7.
PAGE 16
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB Solder pin – Angled – .276”/7.
PAGE 17
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB Solder pin – Angled – .465“ 11.8 mm – Precision machined contacts – Metal bracket Description RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 18
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB Solder pin – Angled – .465" 11.8 mm – Precision machined contacts – Metal bracket with PCB clip Description RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 19
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB Solder cup – Solder ping – Straight – With power or coaxial contacts – Precision machined contacts Description RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 20
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB Solder pin – Angled – With power or coaxial contacts – Precision machined contacts – Metal bracket Description RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 21
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB – without frame Solder cup – Precision machined contacts – Design for use with hood – For wire size AWG20 Description Signal contacts for wire size AWG 20 Contacts: high power or coaxial contacts Mounting style: through-hole Ø .118" 3.0 mm Quality class 3 (also available in quality class 1) Shell: Brass tin plated (Stainless steel on request) RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 22
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB – without frame Solder cup – Precision machined contacts – Design for use with hood Description Designs: 2W2C; 3W3; 3W3C; 5W5; 8W8 Contacts: high power or coaxial contacts Mounting style: through-hole Ø .118“ 3.0 mm Quality class 3 (also available in quality class 1) Shell: Brass tin plated (Stainless steel on request) RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 23
IP6 7 C o m b i n a t i o n D-SUB Connectors IP67 Combination D-SUB – Front panel mounting Solder cup – Precision machined contacts – For wire size AWG 20 Description Signal contacts for wire size AWG 20 Contacts: high power or coaxial contacts Mounting style: with 4-40 UNC or M3 front spacer Quality class 3 (also available in quality class 1) Shell: Brass tin plated (Stainless steel on request) Nickel plated die-cast frame (Black plastic frame on request) RoHS compliant – CSA listed, File No.
PAGE 24
IP67 Combination D-SUB C o n n e c t o r s IP67 Combination D-SUB – Front panel mounting Solder cup – With power or coaxial contacts – Precision machined contacts Description Designs: 2W2C; 3W3; 3W3C; 5W5; 8W8 Contacts: high power or coaxial contacts Mounting styles: with 4-40 UNC or M3 front spacer Quality class 3 (also available in quality class 1) Shell: Brass tin plated Nickel plated die-cast frame (Black plastic frame on request) RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 25
IP6 7 C o m b i n a t i o n D-SUB Connectors Combination D-SUB Contacts High power contacts – Solder cup – Screw Crimp version Description Precision machined contacts Quality class 3: 50 mating cycles (gold plated) Quality class 1: 500 mating cycles (gold plated) Premating make before break contacts available (Consult factory) Two-part contact, separate soldering of wire Selective gold-plated contacts available on request RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 26
IP67 Combination D-SUB C o n n e c t o r s Combination D-SUB Contacts High power contacts – Solder pin – Straight Description Precision machined contacts Quality class 3: 50 mating cycles (gold plated) Quality class 1: 500 mating cycles (gold plated) Premating make before break contacts available (Consult factory) RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784 Product drawing Socket contact Current Termination rating Plug contact A B C 20 A 48 15.84 4.60 15.
PAGE 27
IP6 7 C o m b i n a t i o n D-SUB Connectors Combination D-SUB Contacts High power contacts – Solder pin – angled Description Precision machined contacts Quality class 3: .008 µ“ 0.2 µm Au in contact area Quality class 1: .032 µ“ 0.8 µm Au in contact area Premating make before break contacts available (Consult factory). RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784 Product drawing Socket contact Shell size Plug contact Current Termination rating A B C D ØE 14.
PAGE 28

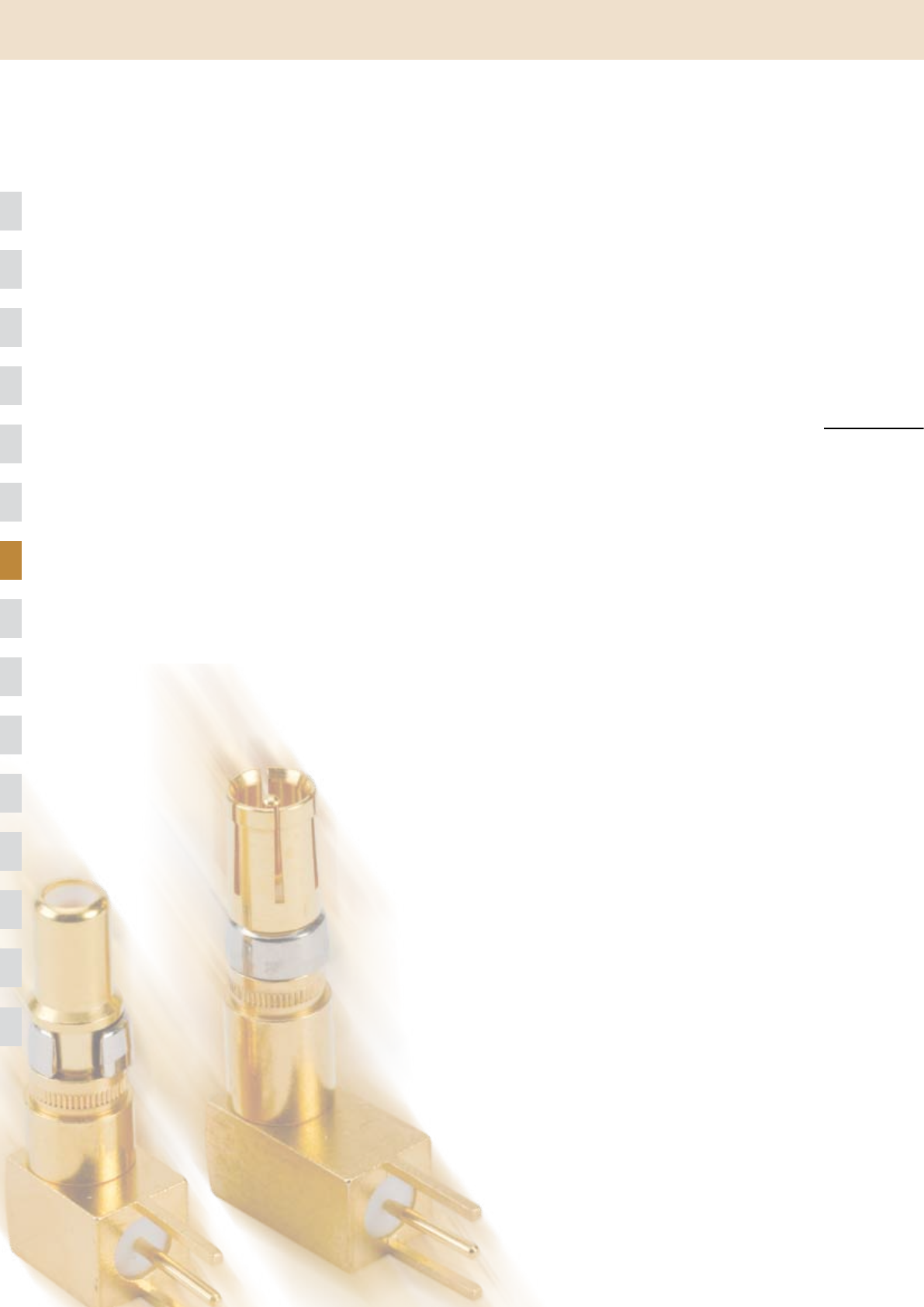

IP67 Combination D-SUB C o n n e c t o r s Combination D-SUB Contacts Coaxial contacts – Straight – Inner and outer conductor for solder connection Description 50 and 75 Ω design Contact plating: - .008 µ“ 0.2 µm Au plating mating side inner- and outer conductor (Quality class 3) - other qualitiy classes on request IP67 protection only in mated condition in conjunction with water resistant housing from CONEC RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.
PAGE 29
IP6 7 C o m b i n a t i o n D-SUB Connectors Combination D-SUB Contacts Coaxial contacts – Straight – PCB termination – 3 solder pins Description 50 and 75 Ω design Contact plating: - .051 µ“ 1.3 µm Au plating mating side inner conductor .032 µ“ 0.8 µm Au outer conductor (Quality class J) - .008 µ“ 0.
PAGE 30
IP67 Combination D-SUB C o n n e c t o r s Combination D-SUB Contacts Coaxial contacts – Angled – PCB termination – 3 solder pins Description 50 and 75 Ω design Contact plating: - .051 µ“ 1.3 µm Au plating mating side inner conductor .032 µ“ 0.8 µm Au outer conductor (Quality class J) - .008 µ“ 0.
