Instruction Manual

06
.
114
Han
Modular
Han
®
SC module
Features
• Suitable for HARTING SC contacts
• For GI-Fibre 50 - 62.5 / 125µm
• Using of guiding pins (male and female) is recom-
mended (see chapter 95).

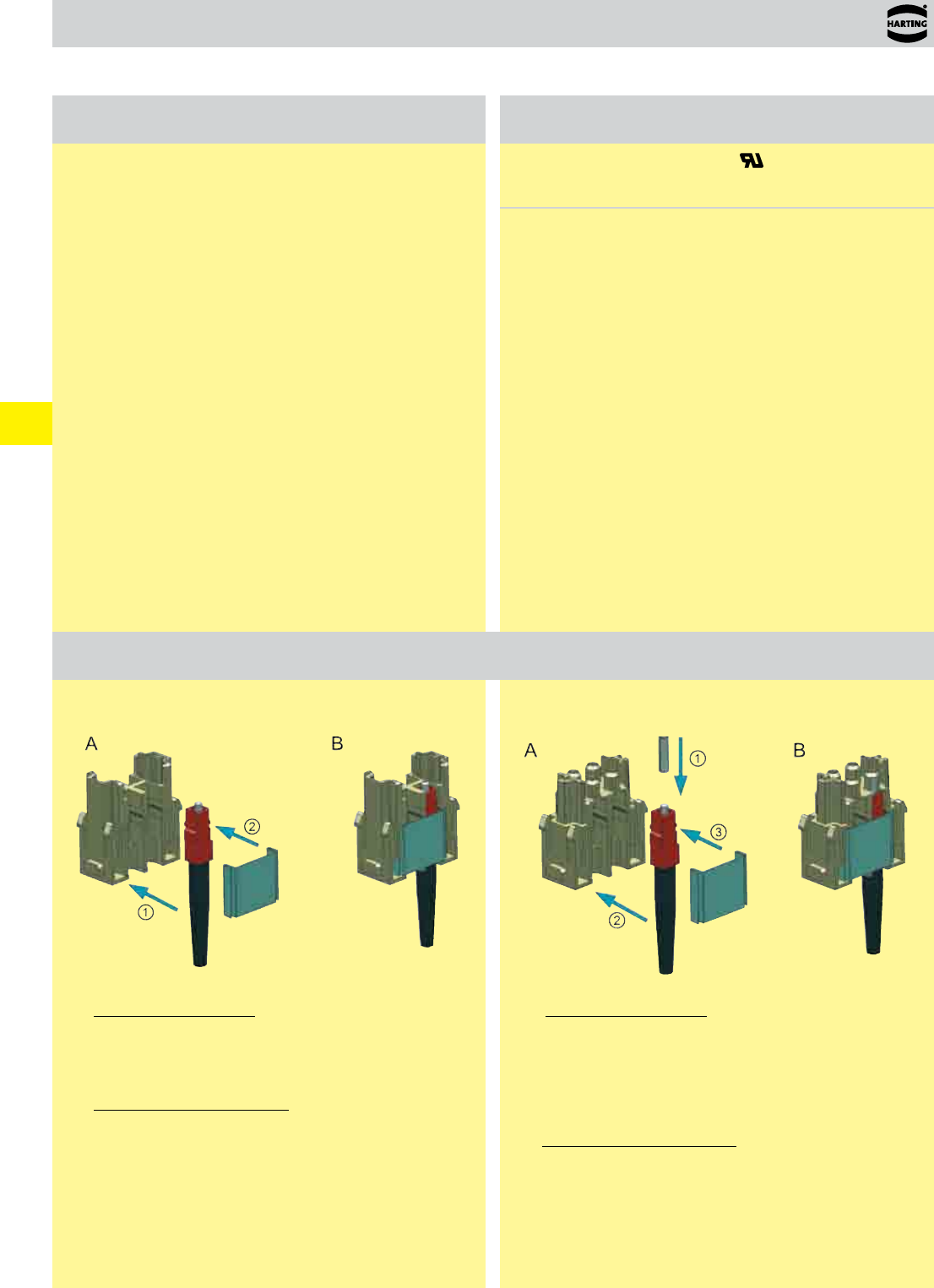

Assembly instructions
Male insert ( "https://b2b.harting.com/ebusiness/en/09 14 004 4701" )
A Assemble the SC contact
Push the SC contact from the side into the relevant insert (1)
Push the xing plate from the side over the contacts (2)
B SC contact xed in the module
Female insert ( "https://b2b.harting.com/ebusiness/en/09 14 004 4711" )
A Assemble the SC contact
Push the centering ferrule (included in delivery) on the SC
contact (1)
Push the SC contact from the side into the relevant insert (2)
Push the xing plate from the side over the contacts (3)
B SC contact xed in the module
Technical characteristics
Approvals
Inserts
Number of contacts 4
Insertion loss < 0.5 dB
Material polycarbonate
Limiting temperatures -40 °C ... +85 °C
Flammability acc. to UL 94 V 0
Mechanical working life
- mating cycles ≥ 500
