Use and Care Manual

Nova Cast Iron Stand 114-0107-001 15/08/06

Nova Cast Iron Stand

For safety reasons please carefully read and understand these instructions.

The Nova Cast Iron Stand was designed to fit and be used only for Nova Lathes. Use of the stand on other lathes

could void the warranty, and risk personal injury.

The Nova Cast Iron Stand set comprises of two cast iron legs, one on either side, which are interchangeable. The

Stand pieces are cast from a high grade of cast iron with extremely good section thickness and CAD generated

internal gussets at all critical points to withstand extremely high stresses with practically no distortion. Cast iron has

always been the material of choice for wood lathe construction because of its inherent mass and excellent modulus of

vibration dampening.

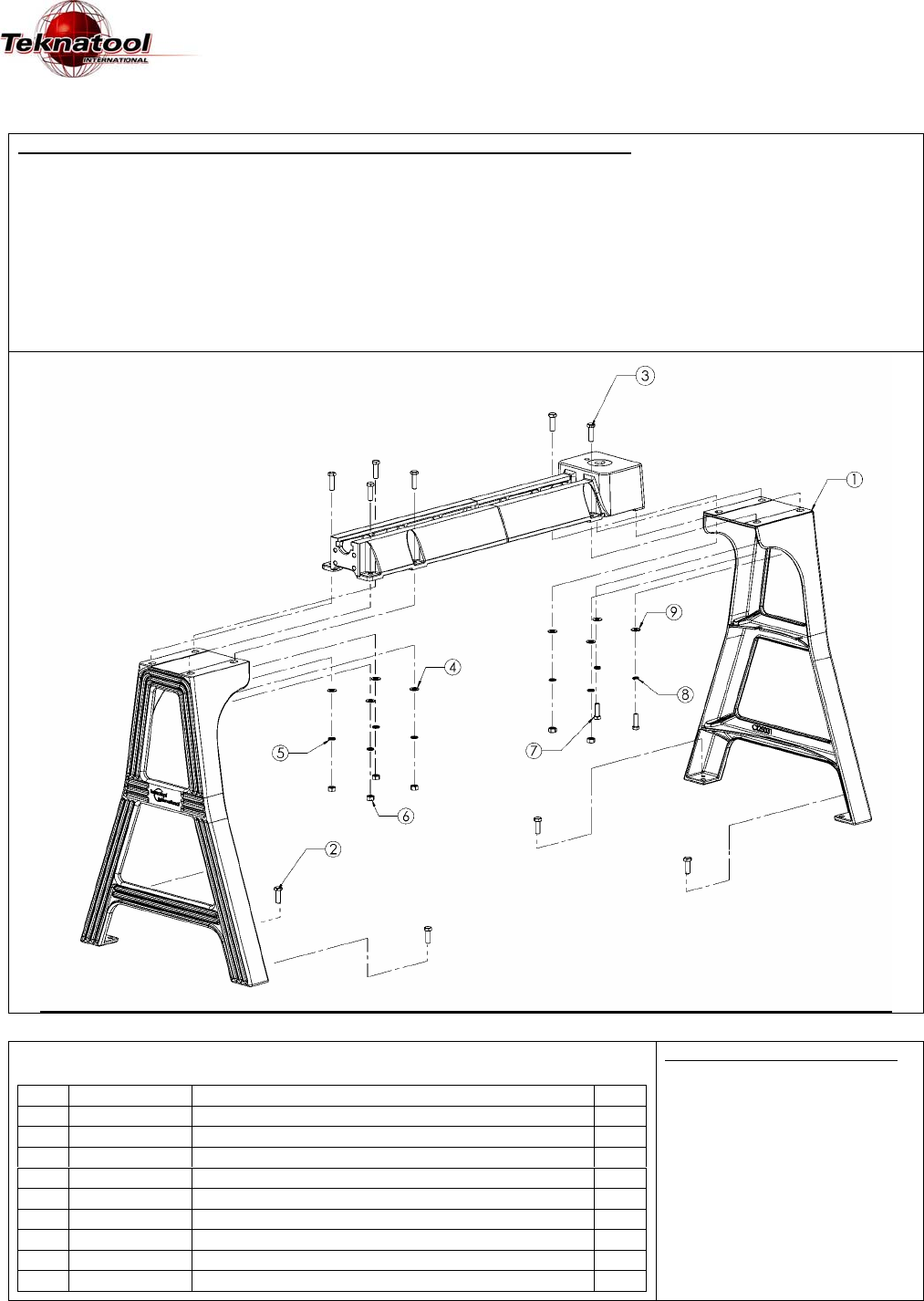

Parts List

No. Code Description Qty

1 25034 STAND MACHINED CAST IRON NOVA 1624/XP 2

2 BNMZ12030 BOLT ENG M12X30 4

3 BNMZ12050 BOLT ENG M12X50 6

4 FW12 WASHER FLAT M12 6

5 SW12 WASHER SPRING M12 6

6 NHZ12 NUT HEX M12 6

7 BNMZ10035 BOLT ENG M10X35 2

8 SW10 WASHER SPRING M10 2

9 FW10 WASHER FLAT FENDER M10X32X1.6 2

Suggested Tools for Assembly

• Ratchet and M10 socket

• At least one other Person

• Saw benches or workshop

bench both need to be

greater than 860mm

(33 7/8”).

• 5/8” or 16mm Ring/ Open

End Spanner

• 3/4” or 19mm Ring/Open

End Spanner

• 8” Adjustable Spanner

PAGE 1
Nova Cast Iron Stand For safety reasons please carefully read and understand these instructions. The Nova Cast Iron Stand was designed to fit and be used only for Nova Lathes. Use of the stand on other lathes could void the warranty, and risk personal injury. The Nova Cast Iron Stand set comprises of two cast iron legs, one on either side, which are interchangeable.
PAGE 2
ASSEMBLY INSTRUCTIONS SAFETY: The stand and lathe elements are heavy, please ensure correct lifting techniques and equipment are used and have someone to assist. Use correct tools and observe recommended practices. Set up your workshop area before beginning assembly of the lathe stand. 1. Open the cardboard box and identify the parts against the parts lists provided (above) 2. Stand the two legs upright facing each other at approximately the same distance apart as the length of the lathe.
