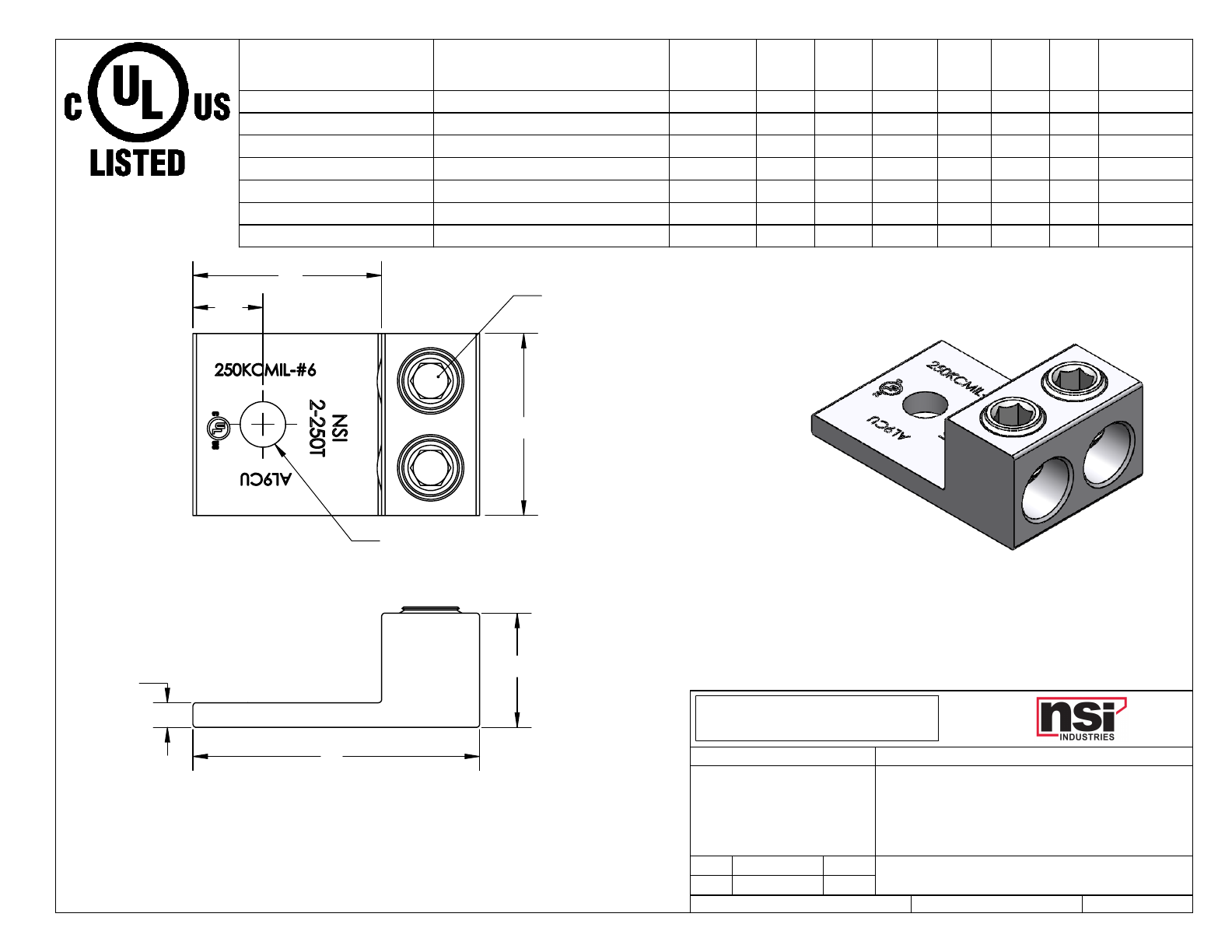

TIN PLATED 6061-T6511 ALUMINUM ALLOY.
1.
UL LISTED 90° C FOR COPPER AND ALUMINIUM
2.
CONDUCTOR.
CONTACT NSi FOR SALES @ 800.321.5847
PART#
WIRE RANGE
HEX SIZE
L
H
W
A
B
C
MOUNT
HOLE
2-0T
1/0 - 14 AWG
3/16
1.47 .79 1.13 .44 .84 .19
1/4
2-2/0T
2/0 - 14 AWG
3/16
1.47 .79 1.25 .44 .84 .19
1/4
2-250T
250KCMIL - 6 AWG
5/16
2.56 1.02 1.63 .63 1.69 .22
3/8
2-350T
350KCMIL - 6 AWG
5/16
2.88 1.13 1.92 .63 1.88 .25
3/8
2-600T
600KCMIL - 2 AWG
3/8
3.18 1.51 2.41 .63 1.93 .38
1/2
2-800T
800 - 300KCMIL
1/2
3.25 1.69 2.75 .88 1.88 .44
1/2
2-1000T
1000 - 500KCMIL
9/16
3.25 1.88 3.19 .88 1.75 .44
1/2
DWG. NO.
TITLE:
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
POLARIS SALES CO. INC. IS PROHIBITED.
2-_T-SERIES
SHEET:
1 OF 1
SCALE:
1:1
DATE
DRAWN BY
SEE NOTE
MATERIAL:
9/17/2012
NAME
NSi
TWO PORT
LUG SERIES
KM
