Specification
Table Of Contents
L
H
B
C
W
A
D
FIGURE 1 FIGURE 2
NOTES:
TINPLATED 6061-T6 ALUMINUM ALLOY.
1.
UL LISTED 90
C FOR COPPER AND ALUMINUM CONDUCTOR.
2.
NSI
PART #
FIG
#
WIRE RANGE
AL/CU
HEX
SIZE
L
H
W
A
B
C
D
MAX
TIGHTENING
TORQUE
IN/LBS
6T
1
#6 - 14
SLOT
1.06
.50 .50 .25 .69 .10
1/4
45
2T
1
#2 - 14
SLOT
1.16
.55 .50 .31 .69 .10
1/4
50
0T
2
1/0 - 14
3/16"
1.47
.79 .63 .44 .85 .19
1/4
120
2/0T
2
2/0 - 14
3/16"
1.47
.79 .63 .44 .85 .19
1/4
120
250T
2
250 - 6
5/16"
2.00 1.02
.88 .47
1.13
.22
5/16
275
300T
2
300 - 6
5/16"
2.00 1.13
.88 .50
1.00
.25
5/16
275
350T
2
350 - 6
5/16"
2.25 1.13
.99 .50
1.25
.25
3/8
275
500T
2
500 - 4
3/8"
2.75 1.41 1.20
.63
1.63
.31
3/8
375
600T
2
600 - 2
3/8"
3.18 1.51 1.38
.63
1.93
.38
3/8
375
800T
2
800 - 300
1/2"
3.25 1.69 1.44
.63
1.88
.44
1/2
500
1000T
2
1000 - 350
9/16"
3.25 1.88 1.69
.75
1.75
.44
1/2
600
DWG. NO.
TITLE:
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
POLARIS SALES CO. INC. IS PROHIBITED.

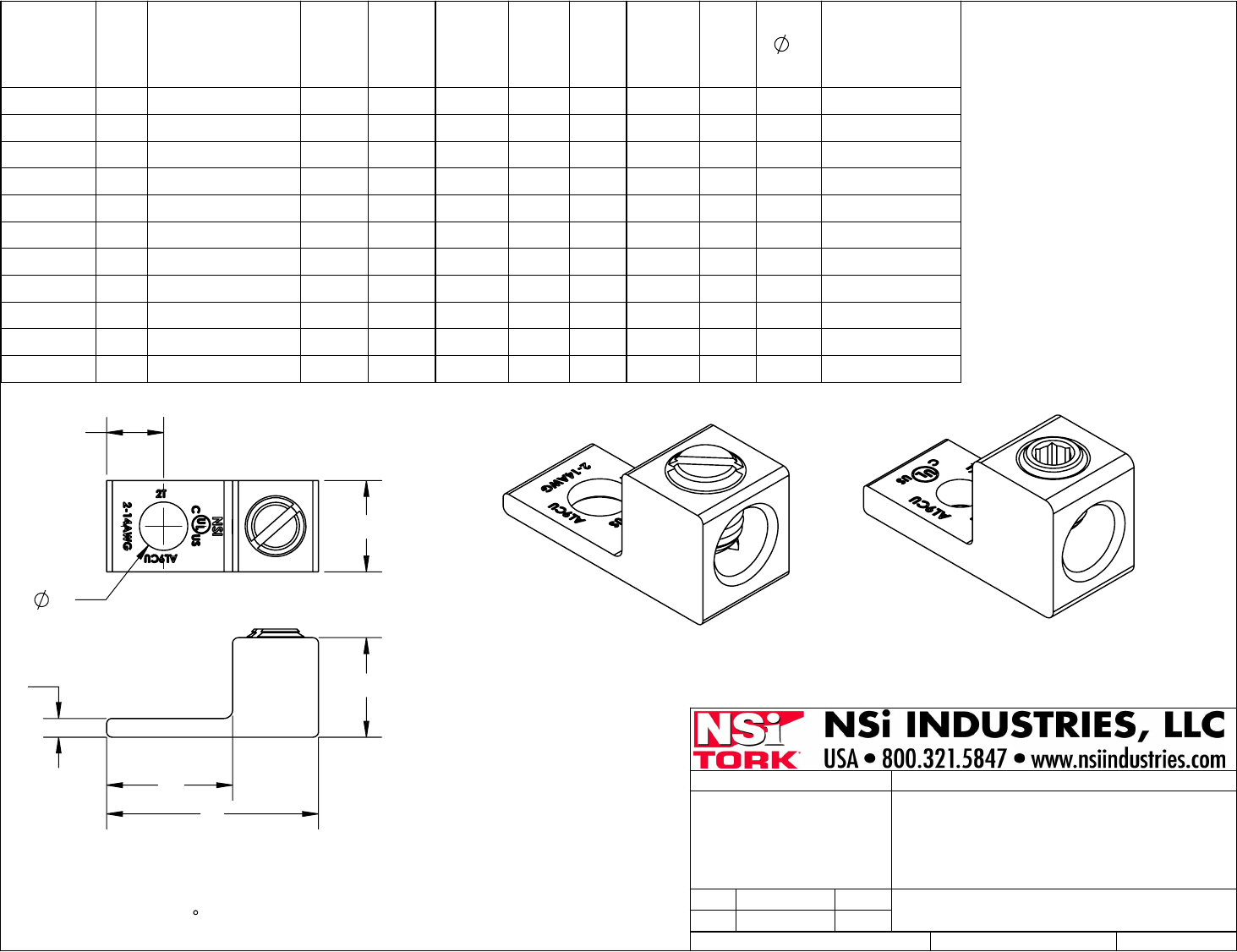

NSI SINGLE LUG
NSI SINGLE LUG
SHEET:
1 OF 1
SCALE:
1:1
DATE
DRAWN BY
MATERIAL:
08-10-10
NAME
N/A
PROPRIETARY AND CONFIDENTIAL
9730 Northcross Center Court Huntersville, NC 28078
KM
NSi Industries, LLC
