Datasheet

9.9

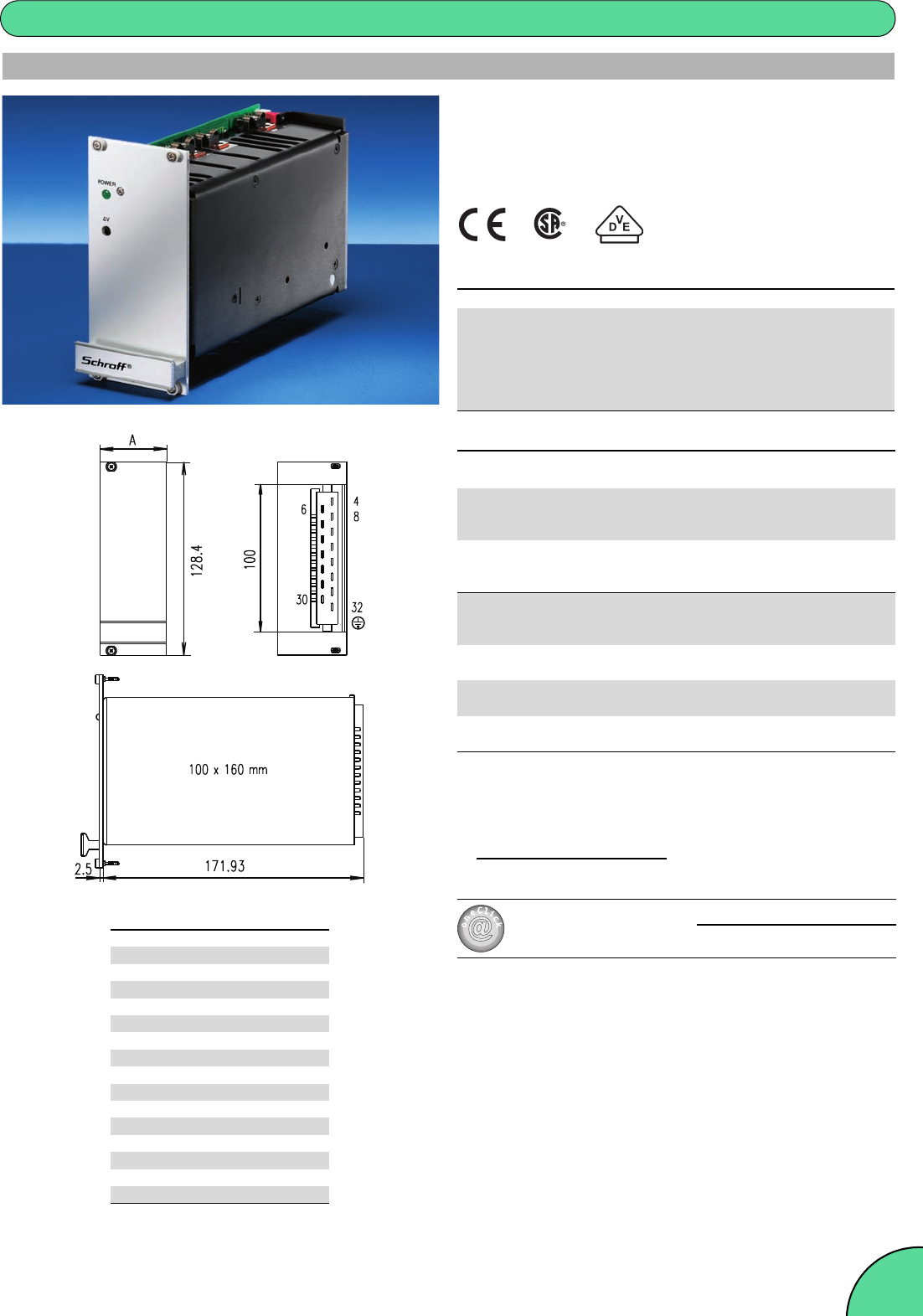

Power supply systems – 19" AC/DC switch-mode PSUs
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Main Catalogue
E 10/2012
11399009
DIJM0084
Connector pin-out
Main Catalogue
쮿 Wide input voltage range 90 ... 254 V
AC
and 100 ... 360 V
DC
with active Power Factor Correction (PFC)
쮿 3 output voltages
쮿 Signalling: Output voltage OK
Delivery comprises
Order Information
Note
쮿 Please order front panel separately
쮿 Output data for mains voltage > 190 V
AC
, T
A
= 0 ... 50 °C
쮿 Customised front panel available via
www.frontpanelexpress.eu
쮿 Further accessories see page 9.16
maxpower 130 W, triple
Pin Connection
4 Output + V
1
6 Output + V
1
8 Sense + V
1
10 Sense 0V V
1
12 Output 0V V1,2,3
14 Output 0V V1,2,3
16 Output + V
2
18 Output 0V V1,2,3
20 Output 0V V1,2,3
22 Output – V
3
24 Output OK
26 –
28 L
30 N
32 PE 댷
Qty Description
1 19" compatible power supply
height 3 U
width A: 12 HP
depth 171.93 mm (160 mm board depth)
connector H 15 M
coding strip (fitted)
Voltage Current Power Description Part no.
VAW
V1: 5
V
2
: 12
V
3
: -12
I
1
: 16
I
2
: 2.8
I
3
: 1.4
132 SEG 312
13100-078
V1: 5
V
2
: 15
V
3
: -15
I
1
: 16
I
2
: 2.2
I
3
: 1.1
132 SEG 315
13100-079
Front panel 12 HP, Al, front anodised, rear iridescent
green chromated, with vertical grooves for EMC gaskets,
incl. assembly kit, 1 piece
21006-946
EMC gaskets (stainless steel) 3 U, 97 mm, stainless
steel, two pieces necessary per front panel, PU 10 pieces
21101-705
Connector H 15 F Mating connector (female) for wiring
inputs/outputs (6.3 mm FASTON), 1 piece
69001-733
Coding PU (1 keying/coding strip, 2 pieces keying/coding
pins)
60800-123
For further information www.schroff.biz/oneclick
oneClick search code = Part no.
CUS
