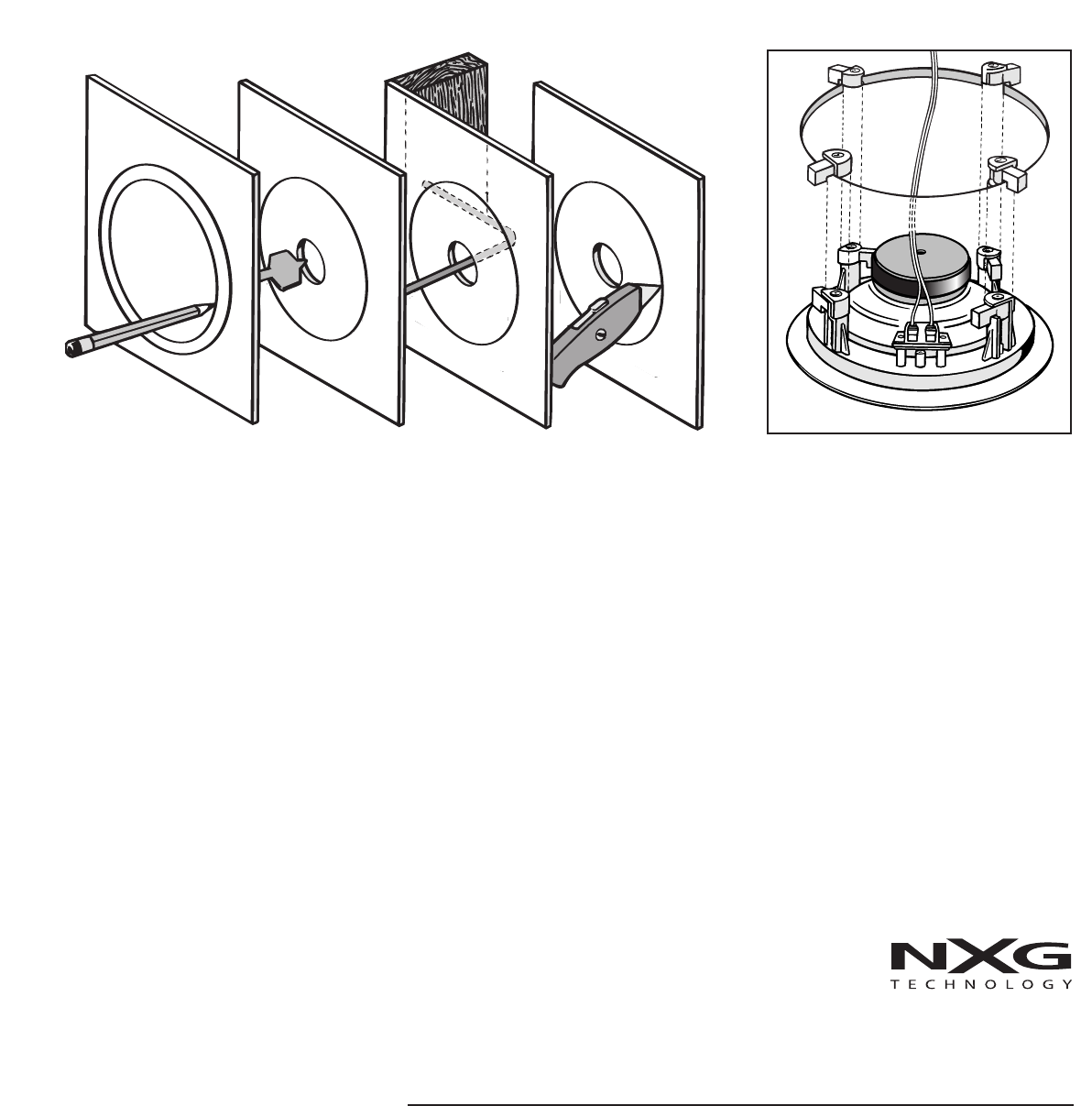

6. See Fig. 5. With the speaker wire attached
to the speaker, slide the speaker up inside
the cut-out hole. Center the speaker in the
cut-out hole and turn the four locking screws
clockwise until the speaker is drawn up
snugly to the wall board from behind,
clamping the speaker in place. Try to tighten
each screw equally. Replace the speaker
grill by gently pressing it into place.
New Construction
1. Determine speaker locations and mark
them on your plans for future reference.
2. If possible, run speaker wires after HVAC
and electrical wiring is in place.
3. Secure speaker wires in place along the
run with insulated staples only and be careful
not to pierce the wire’s insulation. Allow a bit
of slack for expansion of building materials.
4. Needless to say, the actual speakers
should
not be installed until the wall board is
in place. In the meantime, leave several feet
of wire coiled up and secured at the back
side of the mounting hole.
5. To complete the installation follow steps 2
through 5 above.
Operational Check
After making all connections it’s a good idea
to make sure every thing is working properly.
T
urn on your surround or stereo system
making sure the volume control is turned
down and that the balance control is in the
center position. Activate a musical or movie
source such as FM, a CD or DVD player.
Gently turn up the volume, you should hear
sound coming from your new NXG speakers.
If no sound is heard from any or all speakers,
switch off the system immediately and check
for open or loose connections, wrong polarity
or shorts, or proper source selection.
FIG. 5
Specifications NX-C5.2-X NX-C6.2X
Maximum Power Handling: 5 - 50 watts
5 - 80 W
atts
Sensitivity: 90dB @ 1 watt/1 meter 90dB @ 1 watt/1 meter
Frequency Response: 65 Hz-21,000 Hz
55 Hz-21,000 Hz
Driver Complement: 5
1
/
4
˝ (133mm) compression-molded
6
1
/
2
˝ (165mm) compression-molded
mineral-filled polymer cone woofer
mineral-filled polymer cone woofer
with rubber surround with rubber surround
3
/
4
˝ (19mm) metallic-anodized liquid-
3
/
4
˝ (19mm) pivoting liquid-cooled
cooled polycarbonate dome tweeter
titanium dome tweeter w/minimum
w/minimum diffraction tilt-swivel island diffraction tilt-swivel island
Nominal Impedance: 8 ohms 8 ohms
Overall Dimensions: 8˝ (diameter) round x 3˝ D 9˝ (diameter) round x 3˝ D
Required Ceiling Cut-out: 6
1
/
2
˝ (diameter) round 7
1
/
2
˝ (diameter) round
