Owner's manual

ROUGH-IN KIT
INSTRUCTION MANUAL

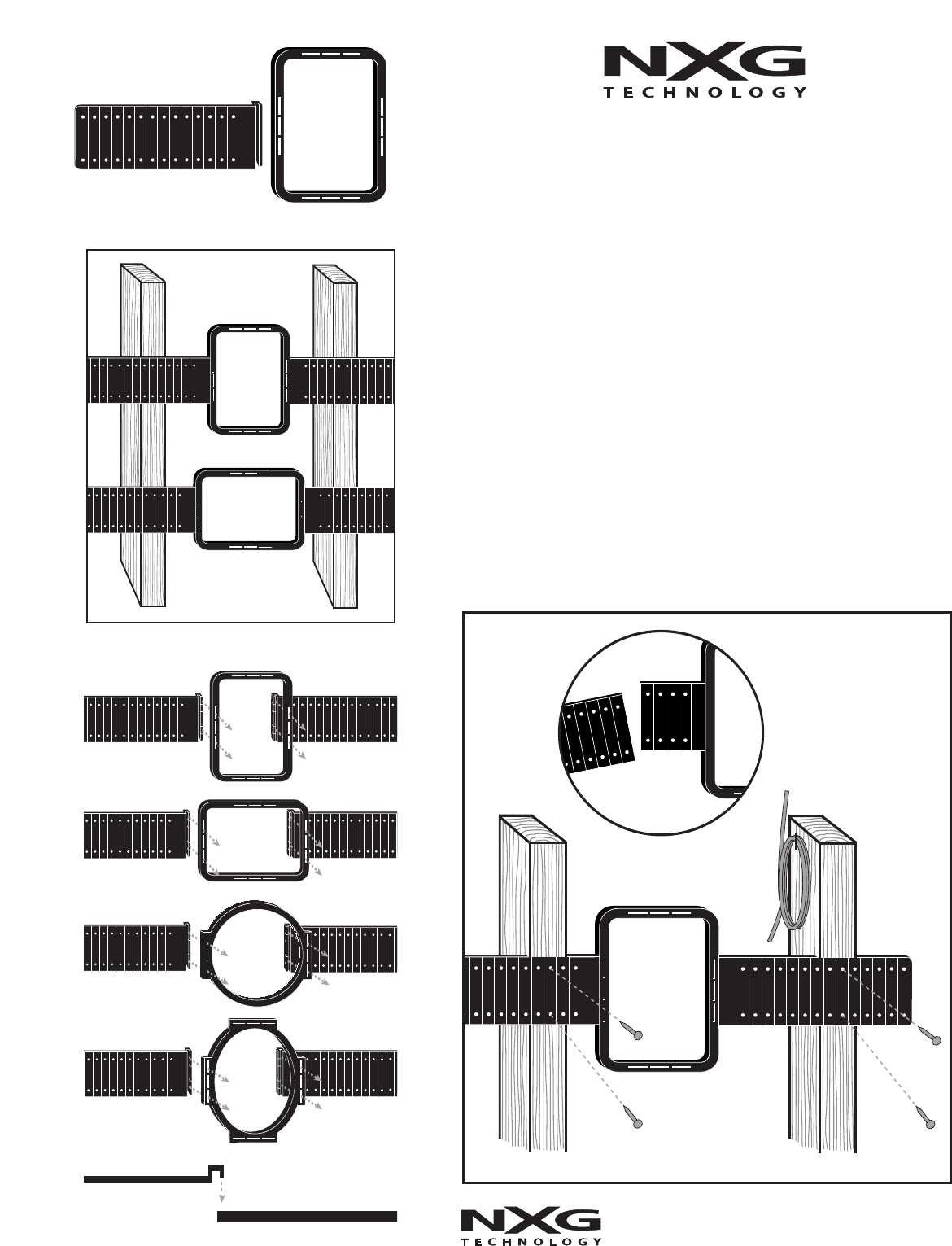

1. Determine the position of your speakers in relation to the wall studs. The
Rough-In Kit is designed to accommodate either upright or horizontal
mounting positions (examples shown in Drawing A at left).
2. Snap brackets to speaker frame for the desired mounting configuration
as shown in Drawing B.
3. Refer to Drawing C below. Position the bracket/frame assembly between
the two 2 x 4 studs where it will be mounted. Then mark mounting
positions with a pencil or punch.
OPTIONAL: You may want to chisel a slot in the 2 x 4 studs to allow
the bracket to be recessed flush with the front surface of the 2 x 4. This
prevents the drywall from bowing when it is placed over the bracket.
4. Attach the bracket/frame assembly with four drywall screws or four
roofing nails (Drawing C).
5. Pull speaker wire to each speaker bracket location making sure to leave
extra wire. Staple wire to stud behind kit so that it will be there when you
mount the speaker later on(Drawing C). For more wiring instructions,
refer to Speaker Installation Manual.
F
rames (2)
Brackets (4)
DRAWING A
DRAWING B
Bracket
Frame
(Side view – bracket attachment)
DRAWING C
Scribe lines
may be used to
snap off excess
