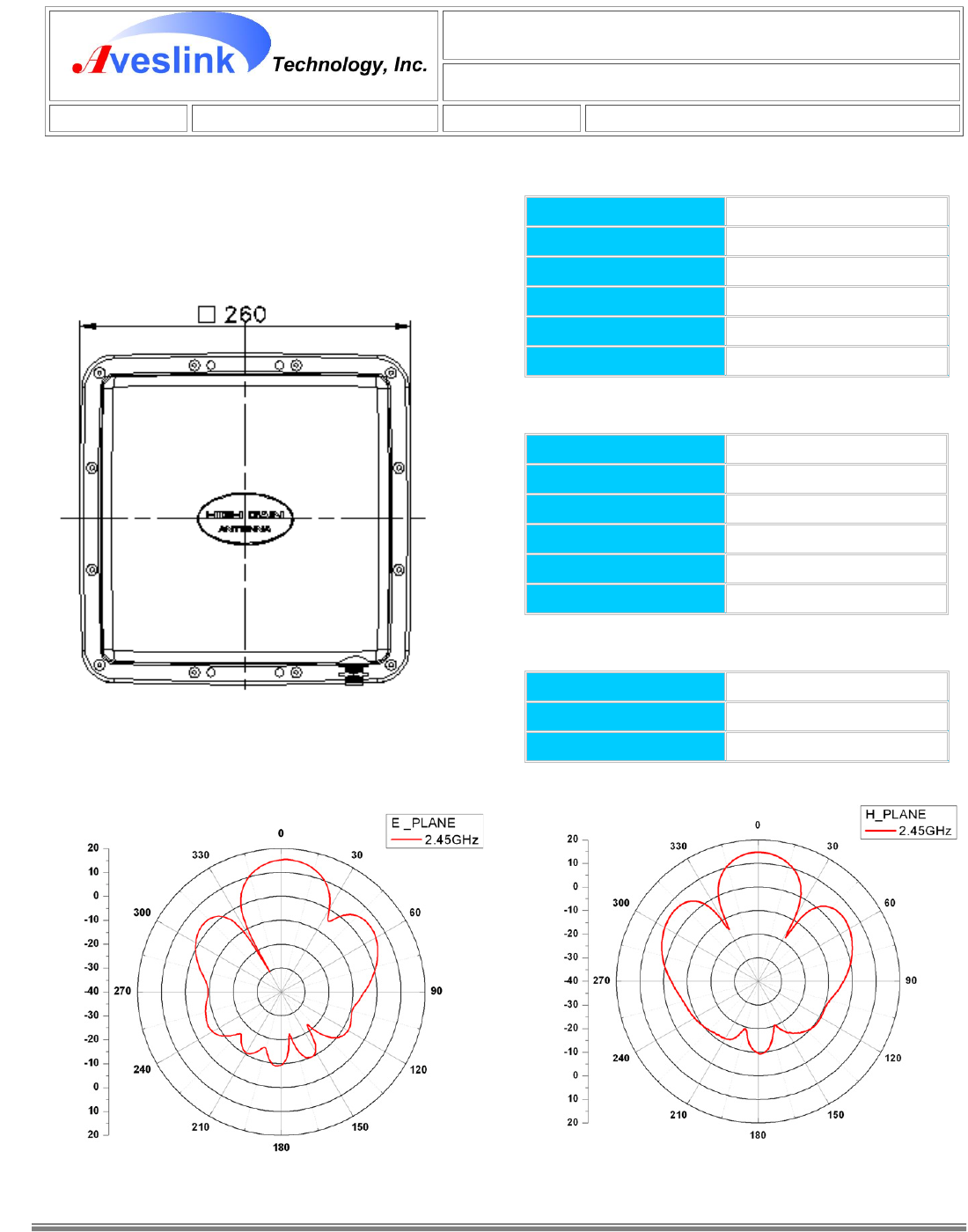

Mechanical Drawing

Mechanical Drawing
Mechanical Specification
Environmental Specification
Patch Antenna
Model No.: E-0260-AT
Rev. 1.0 Date Feb. 06, 2009
Connector Type RP N Jack (Brass)
Material ABS
Cable --
Dimension 260x260x40mm
Water Proof IP68
Weight 1230g (est.)
Operating Temp - 20℃ ~ + 65℃
Storage Temp - 30℃ ~ + 70℃
Substance RoHS Compliant
Electrical Specification
Frequency Range 2.4~2.5GHz
Impedance 50Ω
V.S.W.R. ≦2.0
Radiation Directional
Gain 15dBi
Polarization Vertical
Unit: mm
