Data Sheet – JN5148-001-Myy

IEEE802.15.4/ZigBee Module Family

JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Features: Module

• 2.4GHz IEEE802.15.4 & ZigBee

compatible

•

Sleep current (with active sleep

timer) 2.6µA

•

JN5148-001-M00/03

up to 1km range (Ext antenna)

M00: integral antenna 18x32mm

M03: uFl connector 18x30mm

o TX power +2.5dBm

o Receiver sensitivity –95dBm

o TX current 15mA

o RX current 17.5mA

o 2.3-3.6V operation

•

JN5148-001-M04

up to 4km range (Ext Antenna)

o 20dBm TX power

o Receiver sensitivity -98dBm

o uFl connector

o TX current 110mA

o RX current 23mA

o 18x41mm

o 2.7-3.6V operation

Features: Microcontroller

• 32-

bit RISC CPU, up to 32MIPs with

low power

• 128kB ROM stores system code

• 128kB RAM stores system data and

bootloaded program code

• 4Mbit serial flash for program code

and data

• On chip OTP efuse

• JTAG debug interface

• 4-input 12-bit ADC, 2 12-

bit DACs, 2

comparators

• 3 application timer/counters,

3 system timers

• 2 UARTs

• SPI port with 5 selects

• 2-wire serial interface

• 4-wire digital audio interface

• Watchdog timer

•

Up to 21 DIO

Industrial temp (-40°C to +85°C)

Lead

-free and RoHS compliant

Overview

The JN5148-001-Myy family is a range of ultra low power, high performance surface

mount modules targeted at ZigBee PRO networking applications, enabling users to

realise products with minimum time to market and at the lowest cost. They remove

the need for expensive and lengthy development of custom RF board designs and

test suites. The modules use Jennic’s JN5148 wireless microcontroller to provide a

comprehensive solution with large memory, high CPU and radio performance and all

RF components included. All that is required to develop and manufacture wireless

control or sensing products is to connect a power supply and peripherals such as

switches, actuators and sensors, considerably simplifying product development.

Three module variants are available: JN5148-001-M00 with an integrated antenna,

JN5148-001-M03 with an antenna connector and the JN5148-001-M04 with an

antenna connector, power amplifier and LNA for extended range. The modules can

implement networking stacks such as ZigBee PRO as well as customer applications

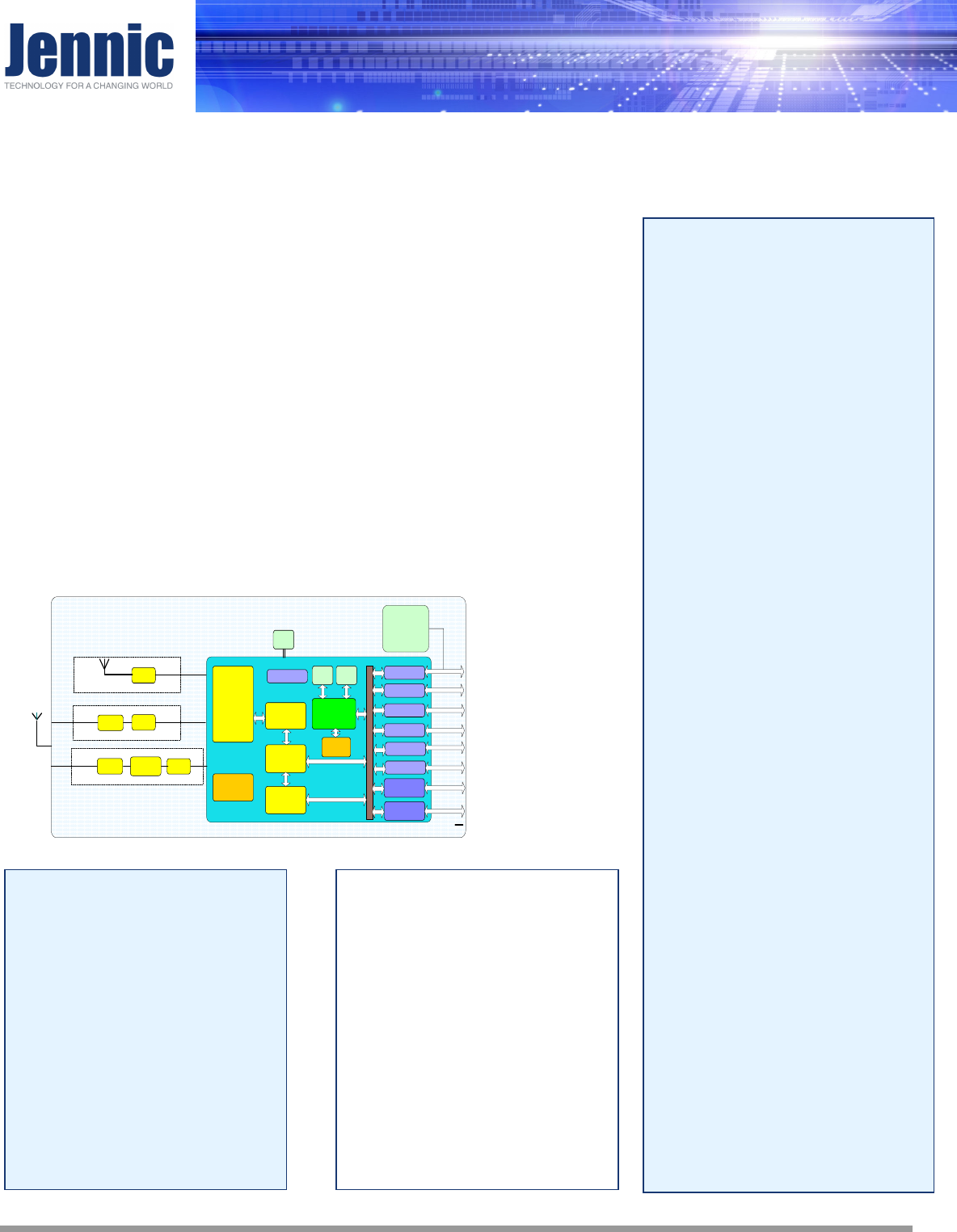

Module Block Diagram

Benefits

•

Microminiature module solutions

•

Ready to use in products

•

Minimises product development

time

•

No RF test required for systems

•

Compliant with FCC part 15

rules, IC Canada RSS 210e,

ETSI ETS 300-328 and Japan

ARIB STD-T66

•

Production volumes supplied

pre-programmed with

application software

Applications

•

Robust and secure low power

wireless applications

•

ZigBee PRO networks

•

Home and commercial building

automation

•

Utilities metering (e.g. AMR)

•

Location Aware services (e.g.

Asset Tracking)

•

Toys and gaming peripherals

•

Industrial systems

•

Telemetry

•

Remote Control

Timers

UARTs

12-bit ADC,

comparators

11-bit DACs,

temp sensor

2-wire serial

SPI

RAM

128kB

128-bit AES

Encryption

Accelerator

2.4GHz

Radio

ROM

128kB

RISC CPU

Power

Management

XTAL

O-QPSK

Modem

IEEE802.15.4

MAC

Accelerator

128kB Serial

Flash Memory

JN5148 chip

Power

Matching

uFl

Connector

Matching

Integrated Antenna

Matching

uFl

Connector

PA / LNA

External

Antenna

M00 Option

M03 Option

M04 Option

4-Wire Audio

Sleep Counters

Watchdog timer

32-byte

OTP eFuse

Summary of content (23 pages)

PAGE 1
Data Sheet – JN5148-001-Myy IEEE802.15.4/ZigBee Module Family Features: Module Overview The JN5148-001-Myy family is a range of ultra low power, high performance surface mount modules targeted at ZigBee PRO networking applications, enabling users to realise products with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites.
PAGE 2
Jennic Contents 1. Introduction 3 1.1. 1.2. 3 3 Variants Regulatory Approvals 2. Specifications 4 3. Product Development 5 3.1. 5 JN5148 Single Chip Wireless Microcontroller 4. Pin Configurations 6 4.1. 4.2. 4.2.1 4.2.2 7 8 8 8 Pin Assignment Pin Descriptions Power Supplies SPI Memory Connections 5. Electrical Characteristics 5.1. 5.2. 5.3. Maximum Ratings Operating Conditions Reflow Profile Appendix A Additional Information A.1 Outline Drawing A.2 Module PCB Footprint A.
PAGE 3
Jennic 1. Introduction The JN5148-001-Myy module family provides designers with a ready made component which allows IEEE802.15.4 [1] wireless applications, using Jennic’s JenNet networking protocol or ZigBee PRO, to be quickly and easily included in product designs. The modules integrate all of the RF components required, removing the need to perform expensive RF design and test. Products can be designed by simply connecting sensors and switches to the module IO pins.
PAGE 4
Jennic 2. Specifications Most specification parameters for the modules are specified in the chip datasheet - JN-DS- JN5148 Wireless Microcontroller Datasheet, [2]. Where there are differences, the parameters are defined here. VDD=3.0V @ +25°C Typical DC Characteristics Notes JN5148-001M00/03 JN5148-001M04 Deep sleep current 1.3uA 1.3uA Sleep current 2.6uA 2.6uA With active sleep timer Radio transmit current 15mA 110mA CPU in doze, radio transmitting Radio receive current 17.
PAGE 5
Jennic 3. Product Development Jennic supplies all the development tools and networking stacks needed to enable end-product development to occur quickly and efficiently. These are all freely available from Jennic’s support website: http://www.jennic.com/support/ . A range of evaluation/developer kits is also available, allowing products to be quickly bread boarded. Efficient development of software applications is enabled by the provision of a complete, unlimited, software developer kit.
PAGE 6
Jennic 4.
PAGE 7
Jennic 4.1.
PAGE 8
Jennic Signal Function Alternative Function 31 DIO15/SIF_D Serial Interface data / Intelligent Peripheral data output General Purpose Digital I/O DIO15 32 DIO16 Intelligent Peripheral data in General Purpose Digital I/O 33 DIO17CTS1 UART1 Clear To Send (input)/ Intelligent Peripheral device select General Purpose Digital I/O DIO17 34 DIO18/RTS1 UART1 Request To Send (output)/ Intelligent Peripheral Interrupt General Purpose Digital I/O DIO18 35 DIO19/TXD1 UART1 Transmit Data (output) G
PAGE 9
Jennic 5. Electrical Characteristics In most cases, the Electrical Characteristics are the same for both module and chip. They are described in detail in the chip datasheet. Where there are differences, they are detailed below. 5.1. Maximum Ratings Exceeding these conditions will result in damage to the device. Parameter Min Max Device supply voltage VDD -0.3V 3.6V Voltage on analogue pins VREF, ADC1-4, DAC1-2, COMP1M, COMP1P, COMP2M, COMP2P, IBIAS -0.3V VDD + 0.
PAGE 10
Jennic 5.3. Reflow Profile For reflow soldering, it is recommended to follow the reflow profile in figure 2 as a guide, as well as the paste manufacturers guidelines on peak flow temperature, soak times, time above liquidus and ramp rates. Temperature Target Time (s) 25~160 ºC 160~190 ºC > 220º C 230~Pk. Pk.
PAGE 11
Jennic Appendix A Additional Information A.1 Outline Drawing 18mm 32.2mm 1.27 mm 2.54 mm 2.54 mm 2.76 mm Thickness: 3.
PAGE 12
Jennic 18mm 9.76mm 6.58 mm 30mm 1.27 mm 2.54 mm 2.54 mm 2.76 mm Thickness: 3.
PAGE 13
Jennic 18mm 7.2mm 4.05mm 40.5mm 1.27 mm 2.54 mm . 2.54 mm 2.76 mm Thickness: 3.
PAGE 14
Jennic A.2 Module PCB Footprint All dimensions are in mm. Note: All modules have the same footprint. Figure 6 Module PCB footprint RF note for –M00 modules with integral antenna: No components, ground plane or tracks on any layer of the mother board should be placed within 20mm of the 3 free sides of the antenna. Tracks etc may be placed adjacent to the can, but should not extend past the can towards the antenna end of the module for 20mm from the antenna.
PAGE 15
Jennic A.3 Ordering Information JN5148 - 001 - MY1Y2 Y3 Shipping X Tape mounted samples up to 50 pieces T Tape Mounted 500 pieces reel Module Type 00 Standard Power, Integral antenna 03 Standard Power, uFl connector 04 High power, uFl connector Where this Data Sheet is denoted as “Advanced” or “Preliminary”, devices will be either Engineering Samples or Prototypes.
PAGE 16
Jennic A.4 Tape and Reel Information: A.4.1 Tape Orientation and dimensions All dimensions are in mm Module type: A B W F E P0 P1 P2 T Cover Tape width (W) JN5148-001-M00 18.4 32.6 44 20.2 1.75 4.0 2.0 24.0 3.4 37.5 JN5148-001-M03 18.4 30.4 44 20.2 1.75 4.0 2.0 24.0 3.4 37.5 JN5148-001-M04 18.5 40.9 56 26.2 1.75 4.0 2.0 24.0 3.4 49.5 Tolerance ±0.1 ±0.1 ±0.3 ±0.1 +0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 A.4.2 Cover tape details Thickness (T) 0.
PAGE 17
Jennic A.4.3 Leader and Trailer 300 MM 300 MM A.4.4 Reel Dimensions: All dimensions are in mm. Module type: A B C N W (min) JN5148-xxx-M00/03 330 ±1.0 2.2±0.5 13 ±0.2 100 +0.1 44.5 ±0.3 JN5148-xxx-M04 330 ±1.0 2.2±0.5 13 ±0.2 100 +0.1 56.5 ±0.3 A.5 Related Documents [1] IEEE Std 802.15.4-2003 IEEE Standard for Information Technology – Part 15.
PAGE 18
Jennic A.6 Federal Communication Commission Interference Statement This equipment will have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
PAGE 19
Jennic A.6.
PAGE 20
Jennic A.6.2 High Power Module usage limitation The high power module variants are classified as ‘mobile’ device pursuant with FCC § 2.1091 and must not be used at a distance of < 20 cm (8”) from any nearby people. IMPORTANT NOTE: In the event that these conditions can not be met (for certain configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product.
PAGE 21
Jennic The modules will be approved for use with the antennas listed in the following table. The high power module M04 is limited to an antenna with a gain of 2.2 dBi or less. Brand Antenna Factor Model Number ANT-2.4-CW-RCL Description Gain Connector type Vertical - knuckle antenna 2.9dBi RP-SMA Antenna Factor ANT-2.4-CW-RCT-SS Vertical - knuckle antenna 2.2dBi SMA Laird Technologies WCR2400-SMA Vertical - knuckle antenna 1.
PAGE 22
Jennic Advanced The Data Sheet shows the specification of a product in planning or in development. The functionality and electrical performance specifications are target values and may be used as a guide to the final specification. Jennic reserves the right to make changes to the product specification at anytime without notice. Preliminary The Data Sheet shows the specification of a product that is commercially available, but is not yet fully qualified. The functionality of the product is final.
PAGE 23
Jennic A.12 Version Control Version Notes 1.0 1st Issue of Advanced Datasheet 1.1 1st Issue of Preliminary Datasheet, minor parametric changes and addition of Apendix A6.3 Jennic Ltd Furnival Street Sheffield S1 4QT United Kingdom Tel: +44 (0)114 281 2655 Fax: +44 (0) 114 281 2951 E-mail: info@jennic.com For the contact details of your local Jennic office or distributor, refer to the Jennic web site: www.jennic.
