User Manual

Model 507-LX Encore Series Leatherette High-Back Chair
5
Assembly Notes:
During assembly, hand tighten screws only. When all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
WEIGHT CAPACITY: 250 lbs.
STOP
A
Tools Needed: Allen Wrench
Please read all instructions before assembly.

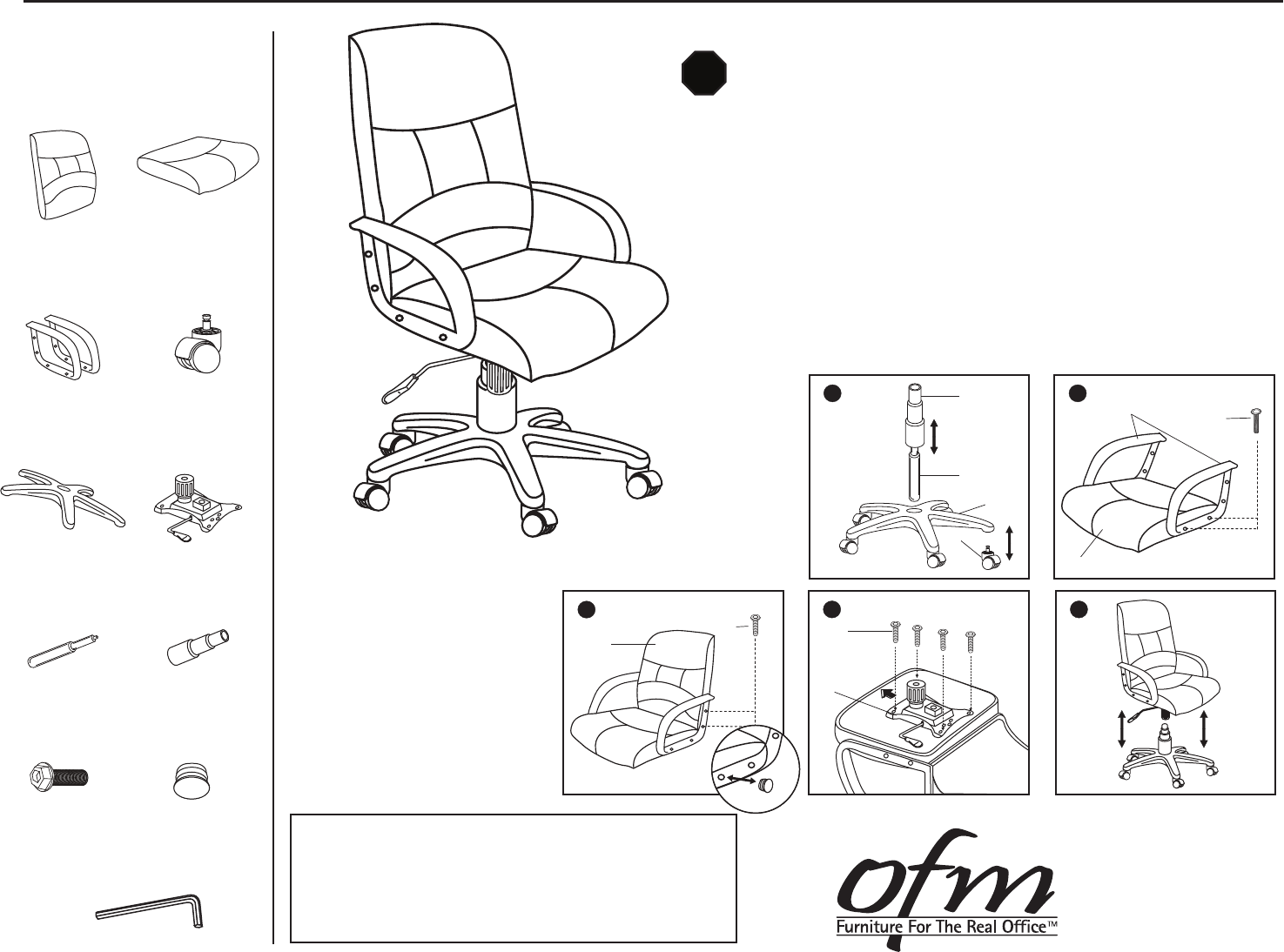

Step 1: Insert Casters (D) into Chair Base (E). Insert Gas Lift (G) into hole in
Chair Base (E). Cover Gas Lift (G) with Telescopic Bellows (H).
Step 2: Attach Arm Rests (C) to sides of Chair Seat (B) using
1/4” x 3/4”
Hex Screw
(I). Tighten with Allen Wrench (K).
Step 3A: Attach Chair Back (A) to Arm Rests (C) using
1/4” x 3/4” Hex Screw (I).
Tighten with Allen Wrench (K).
Step 3B: Cover screw holes with Screw Caps (J). Press in firmly.
Step 4: Attach Seat Mechanism (F) to the bottom of Chair Seat (B) using
1/4” x 3/4” Hex Screw (I).
Step 5: Place chair body onto Chair Base (E) by inserting top of Gas Lift (G)
into hole in the center of Seat Mechanism (F). Press down firmly on
Chair Seat (B) to secure onto Chair Base (E).
03.12.2015
1
H
G
E
D
2
B
C
I
I
F
4
3
A
J
Parts Listing
F
Seat Mechanism
1 Unit
E
Chair Base
1 Unit
G
Gas Lift
1 Unit
H
Telescopic Bellows
1 Unit
B
Chair Seat
1 Unit
A
Chair Back
1 Unit
C
Arm Rests
2 Units
D
Casters
5 Units
J
Screw Cap
8 Units
K
Allen Wrench
1 Unit
I
161 Tradition Trail,
Holly Springs, NC, 27540
800-520-7471 (voice)
919-303-6389 (voice)
919-362-4765 (fax)
www.ofmfurniture.com
[e-mail]
I
1/4” x 3/4” Hex Screw
12 Units
