- 1. Setting Up the Printer
|
Developer’s Guide: English 129
c With the Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print.

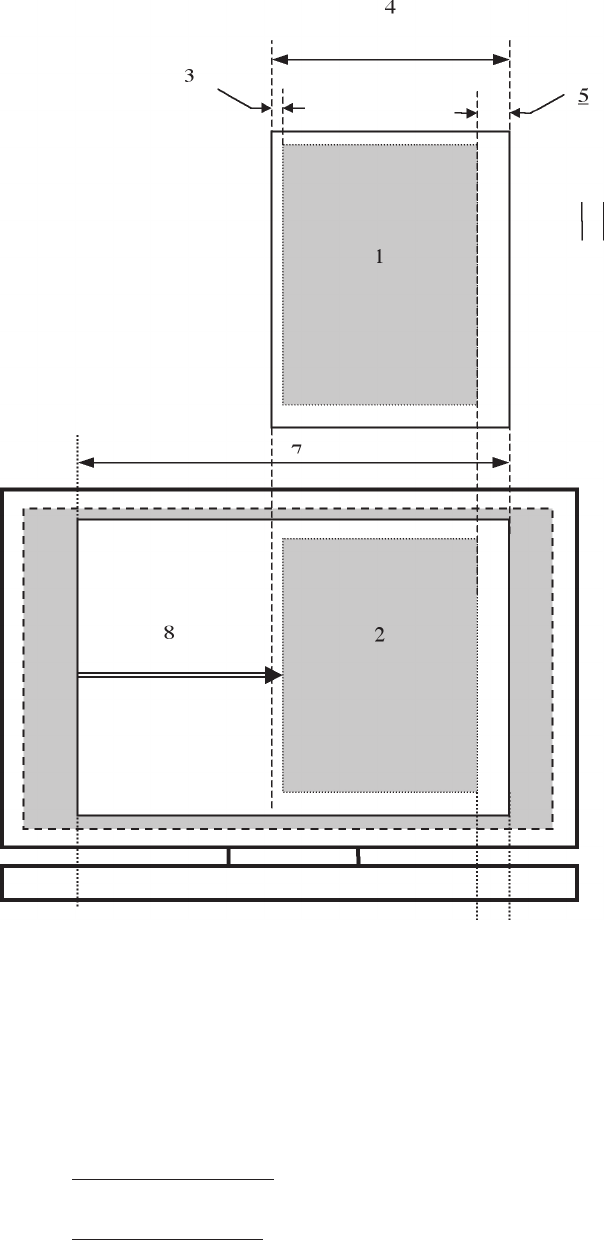

An image of actual printing area
1 Target Printing Area
2 Printing Area with margin adjusted
3 Left margin for paper to be used: 2.54mm (0.1 inch) or more
4 Width of actually used Paper Size 101.6mm (4.0 inch)
5 Right margin for paper to be used: 2.54mm (0.1 inch)
6 Actually set right margin 25.4mm (1.1 inch) or more (including the printing disable area)
7 Paper Size 187.96mm (7.4 inch)
8 Actually set left margin
