- 1. Setting Up the Printer
50
OKIPOS 425D
|
3.2 Replacing the Roll Paper
When the Roll is used up, load a new one, following the procedure shown below.
3.2.1 Roll Paper (Receipt)

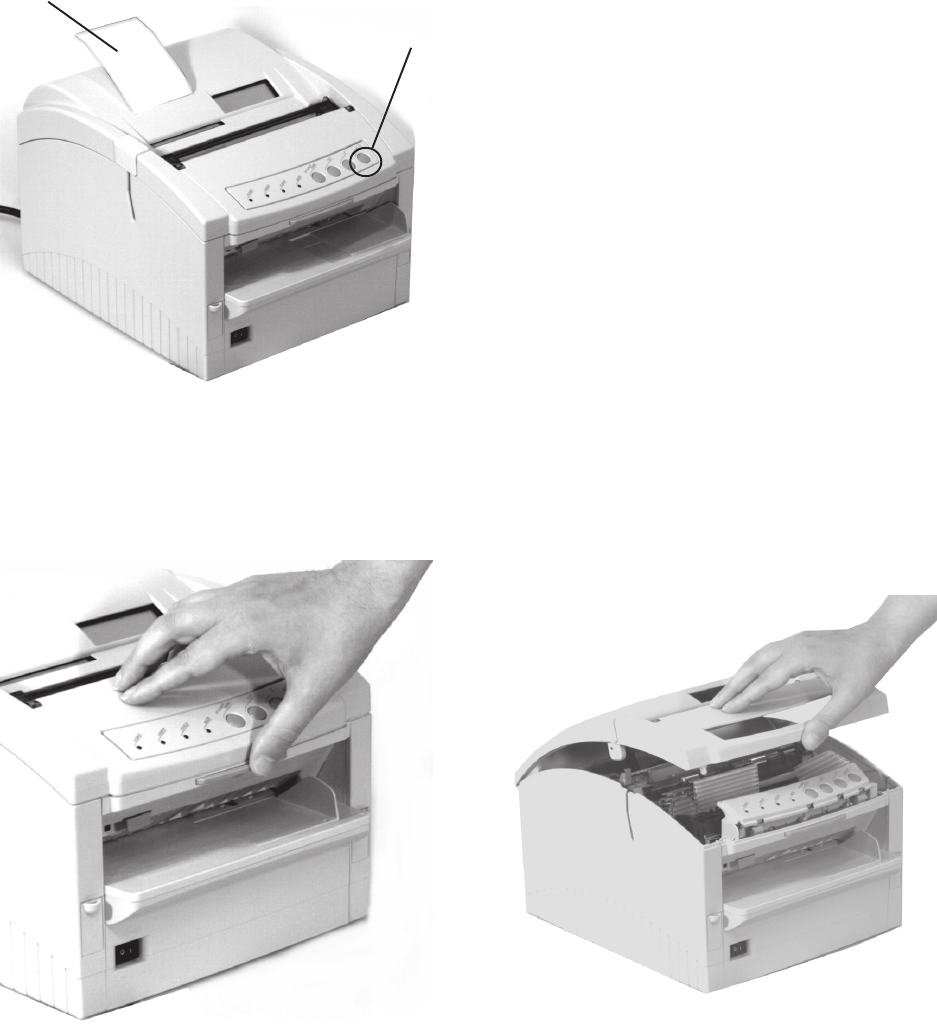

1. Press Form Feed switch (1) on Receipt side so that the whole Receipt Paper (2) is ejected.
2. Press the Cover Open Bar and open the Printer Cover.
* Caution! The printhead may be HOT!
o425_31.jpg and o425_32.jpg
3. Load new paper roll.
For loading Roll Paper, refer to Section 1.5.1.2.
2
1
