Developer’s Guide: English 73
5.7.5 Appendix: Media Specifications
5.7.5.1. Cut-Sheet Paper (Slip/Validation)

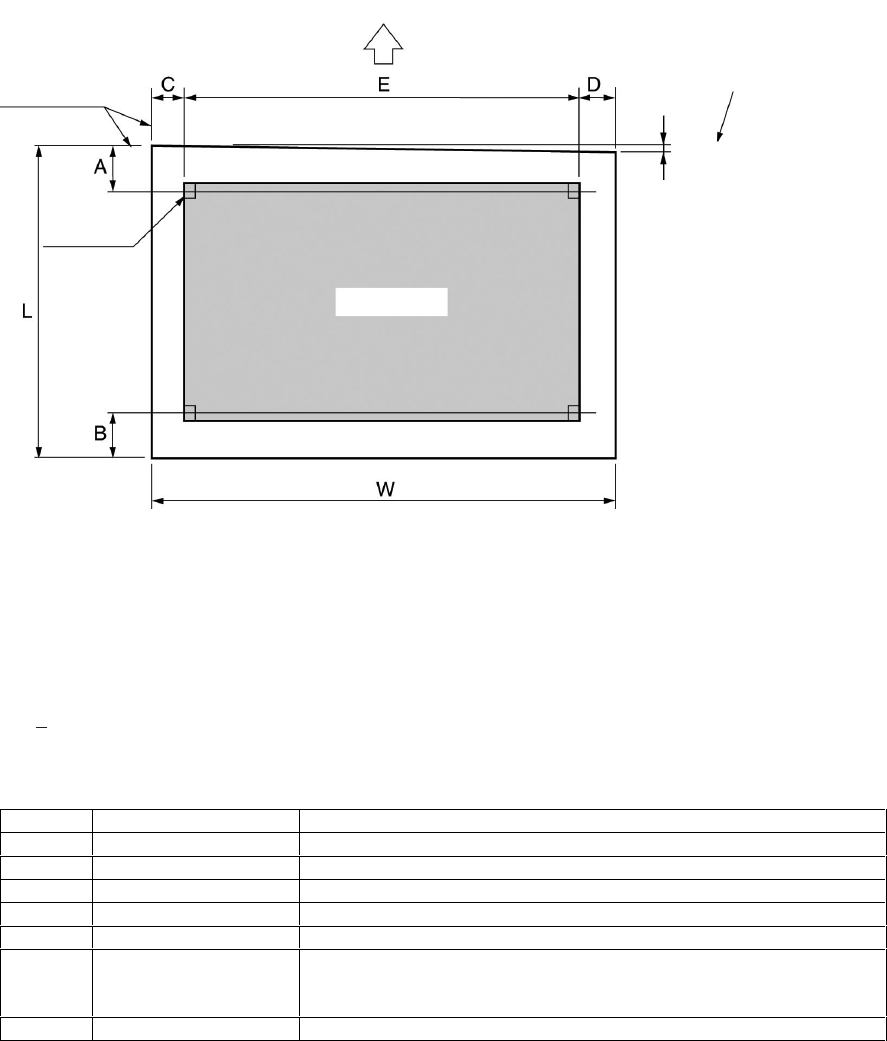

5.7.5.1.1. Paper Size and Printing Area
1 Single-part Paper
OP425_10.eps
1 Base line
2 First character position
3 Paper inserting direction
4 Against the perpendicular to the Base line
5 Printing area
6 + 0.2mm or less
Standard media are in A5 and B5 sizes.
A25022.doc
Symbol Designation Standard Value
W Paper width 105~215.9mm (4.13~8.5 inch)
L Paper length 70~297mm (2.76~11.7 inch)
A Top margin 6.35mm (1/4 inch)
B Bottom margin 19.6mm (0.77 inch)
C Left margin 2.54mm (0.1 inch) or more
D Right margin This distance may be adjusted from 2.54 to 27.94 mm (0.1~1.1 inch)
by moving the paper guide. D=2.54 mm may be set only for a sheet
whose W=190.5mm (7.5 inch) or shorter.
E Printing area width Max 160.02mm (6.3 inch)
Note 1 The height-width ratio must be 1: 2/3 – 2.
Note 2 Use a flat sheet free of curls, bends (especially those on its edges), cambers, wrinkles, etc. If a paper is not flat, it
may be contaminated with ink due to contact with the ribbon.
1
3
4
2
5
6
