Developer’s Guide: English 91
5.7.5.4. MICR (only with MICR Type)
5.7.5.4.1 Paper Size and Scanning Area

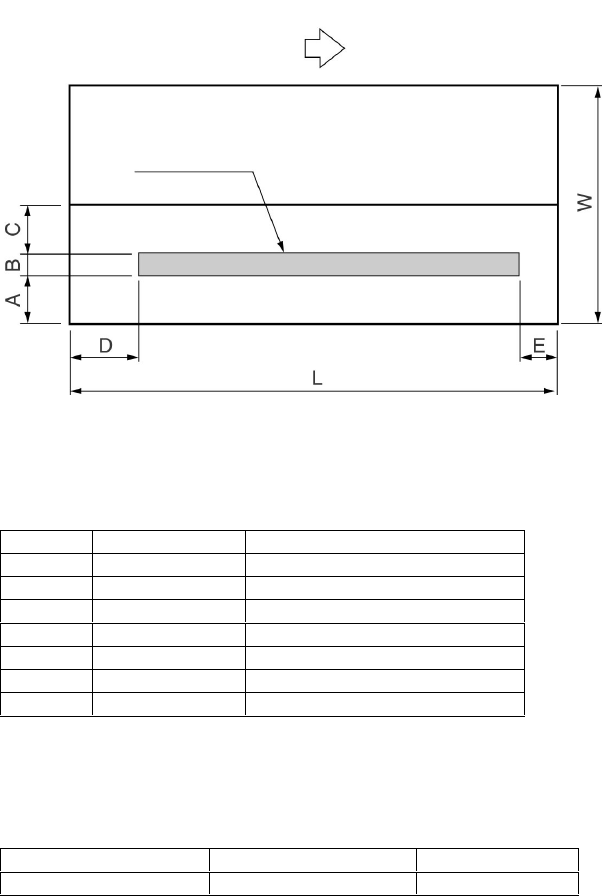

OP425_30.eps
1 Paper inserting direction
2 Scanning Area
A25033.doc
Symbol Designation Standard Value
W Paper width 76~78mm (2.99~3.07 inch)
L Paper length 174~176mm (6.85~6.93 inch)
A - 4.8mm (0.19 inch)
B Scanning area 6.4mm (0.25 inch)
C - 4.8mm (0.19 inch)
D - 6.35mm (1/4 inch) or more
E - 50mm (1.97 inch) or more
5.7.5.4.2 Paper Weight
The weight of paper usable for Scanning
A25034.doc
Type Weight Paper Thickness
Single-part paper only 79~87 g/m
2
(21~23 lb) 0.1~0.11mm
1
2
